Installation Procedure

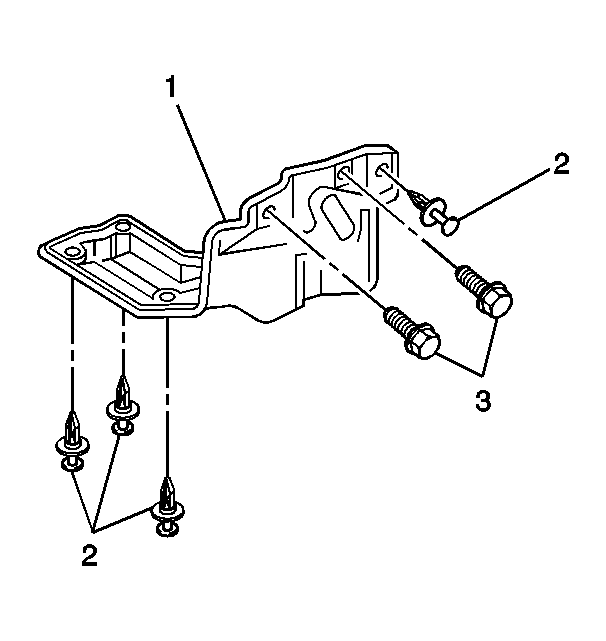

    Fig 1: Splash Shield, Bolt And Retainers
    GM850067Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the engine splash shield (1) to the vehicle. Secure the splash shield with the 2 bolts (3) and the 4 retainers (2).

    Tighten:  Tighten the engine splash shield bolts to 10 N.m (89 lb in).

  2. Lower the vehicle.
