Installation Procedure

    Fig 1: View of Radio & Screws
    GM779169Courtesy of GENERAL MOTORS CORP.
  1. Route the antenna extension cable. Secure the cable.
  2. Connect the antenna extension cable to the radio. Install the radio. Refer to Radio Replacement .

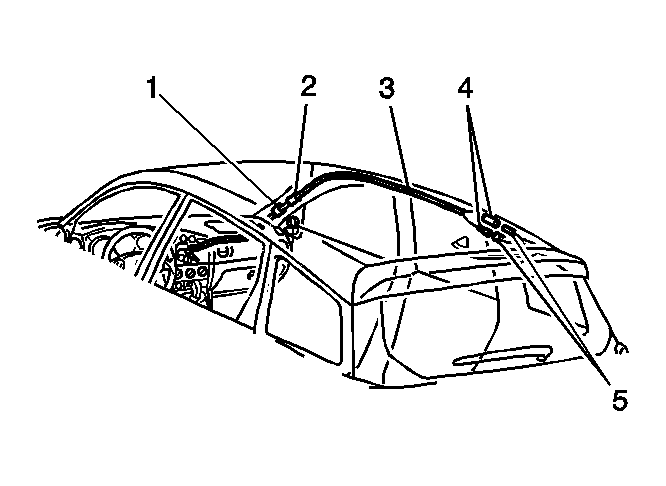

    3. Fig 2: View of antenna extension cable
    GM852965Courtesy of GENERAL MOTORS CORP.
  3. Connect the antenna extension cable (1) to the radio to the antenna cable (2).
  4. Install the windshield garnish molding. Refer to Instrument Panel Compartment Replacement .
  5. Install the I/P storage compartment. Refer to Instrument Panel Compartment Replacement .
  6. Install the right front windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
