Installation Procedure

    Fig 1: Antenna Base & Cable Connectors
    GM878369Courtesy of GENERAL MOTORS CORP.
  1. Install the XM antenna connectors through the hole in the roof.
  2. Position the XM antenna to the hole in the roof.

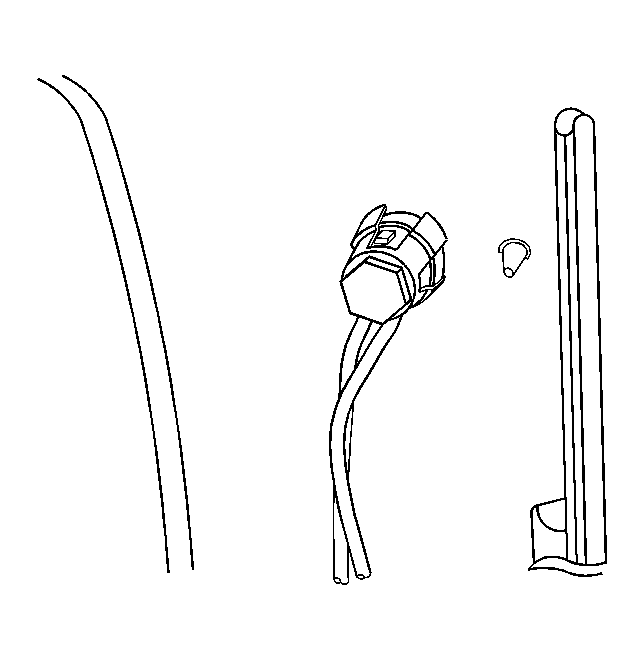

    3. Fig 2: Digital Radio Antenna
    GM1318267Courtesy of GENERAL MOTORS CORP.
    NOTE: Fastener Notice .
  3. Install the bolt and retainer which secure the XM antenna.

    Tighten:  Tighten the antenna base bolt to 6 N.m (53 lb in).

  4. Connect the 2 electrical connectors to the coaxial cable.
  5. Secure the rear headliner with the 2 plastic retainers.
  6. Install the rear dome lamp. Refer to Dome Lamp Replacement .
  7. Install the right rear assist handle. Refer to Assist Handle Replacement .
  8. Install the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .
