Cruise Control Schematics

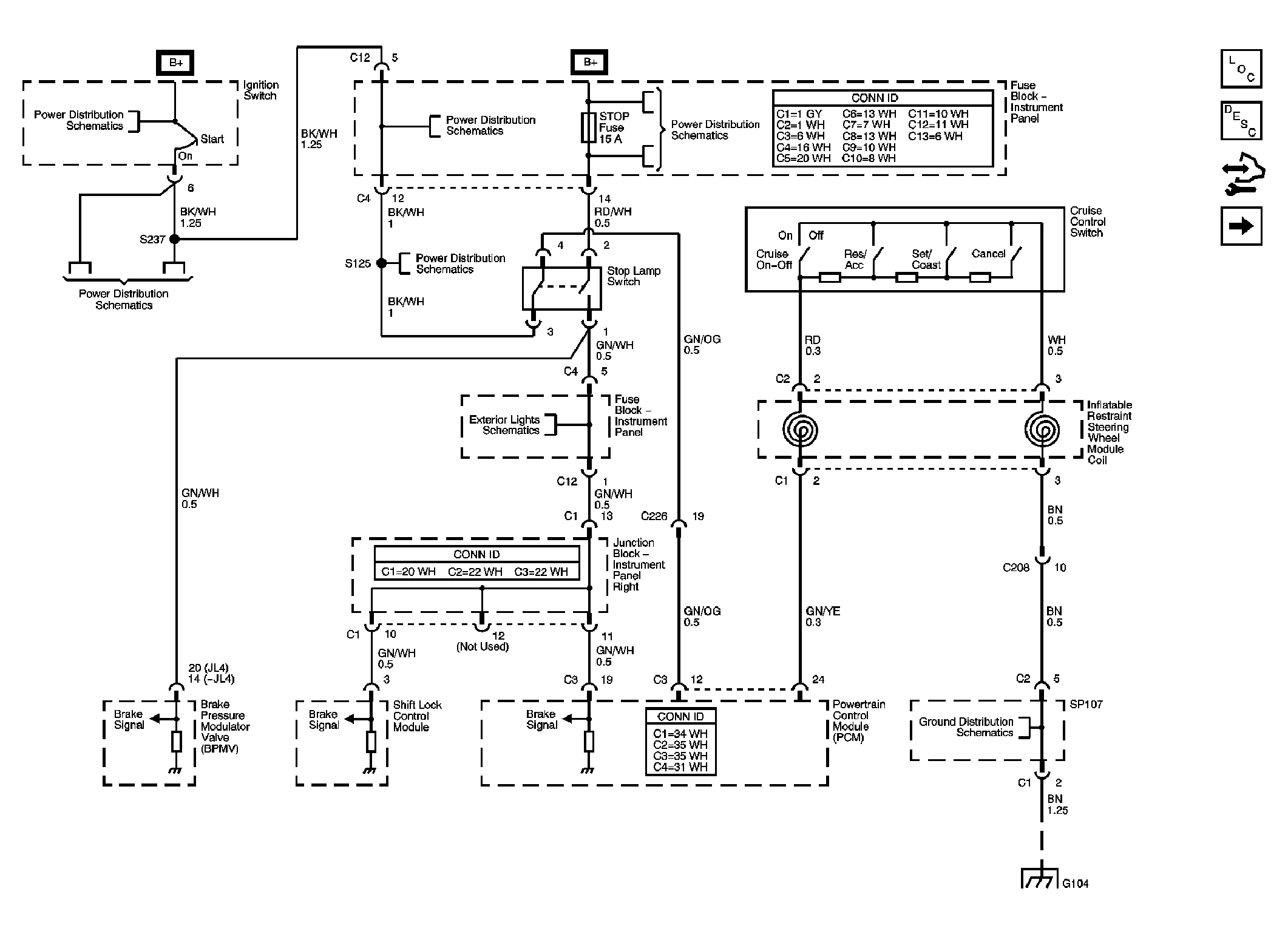

Fig 1: Powertrain Control Module, Stop Lamp Switch and Cruise Control Switch
GM1847841Courtesy of GENERAL MOTORS CORP.

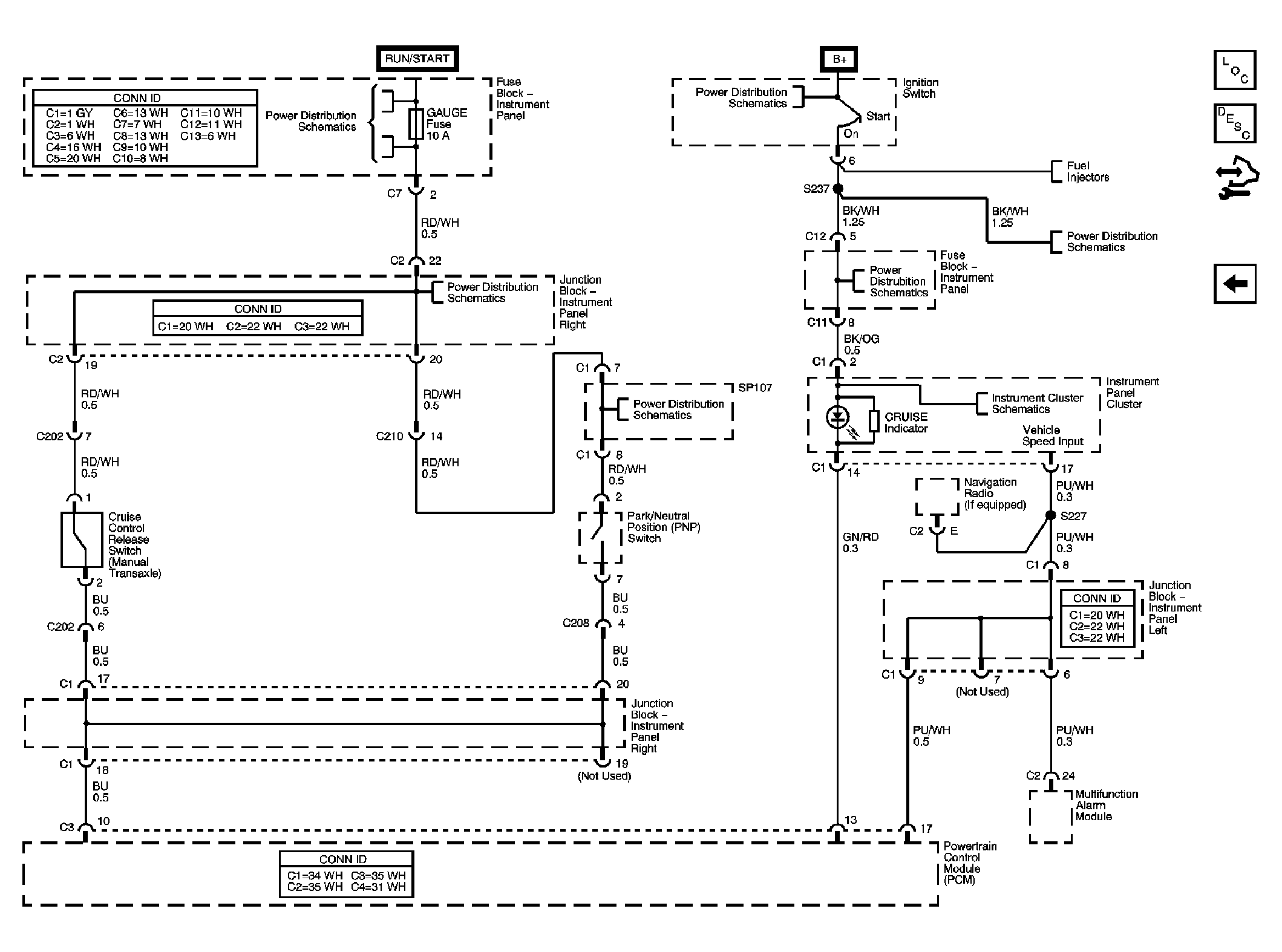

Fig 2: Powertrain Control Module, Cruise Control Release Switch, Cruise Indicator
GM1847843Courtesy of GENERAL MOTORS CORP.

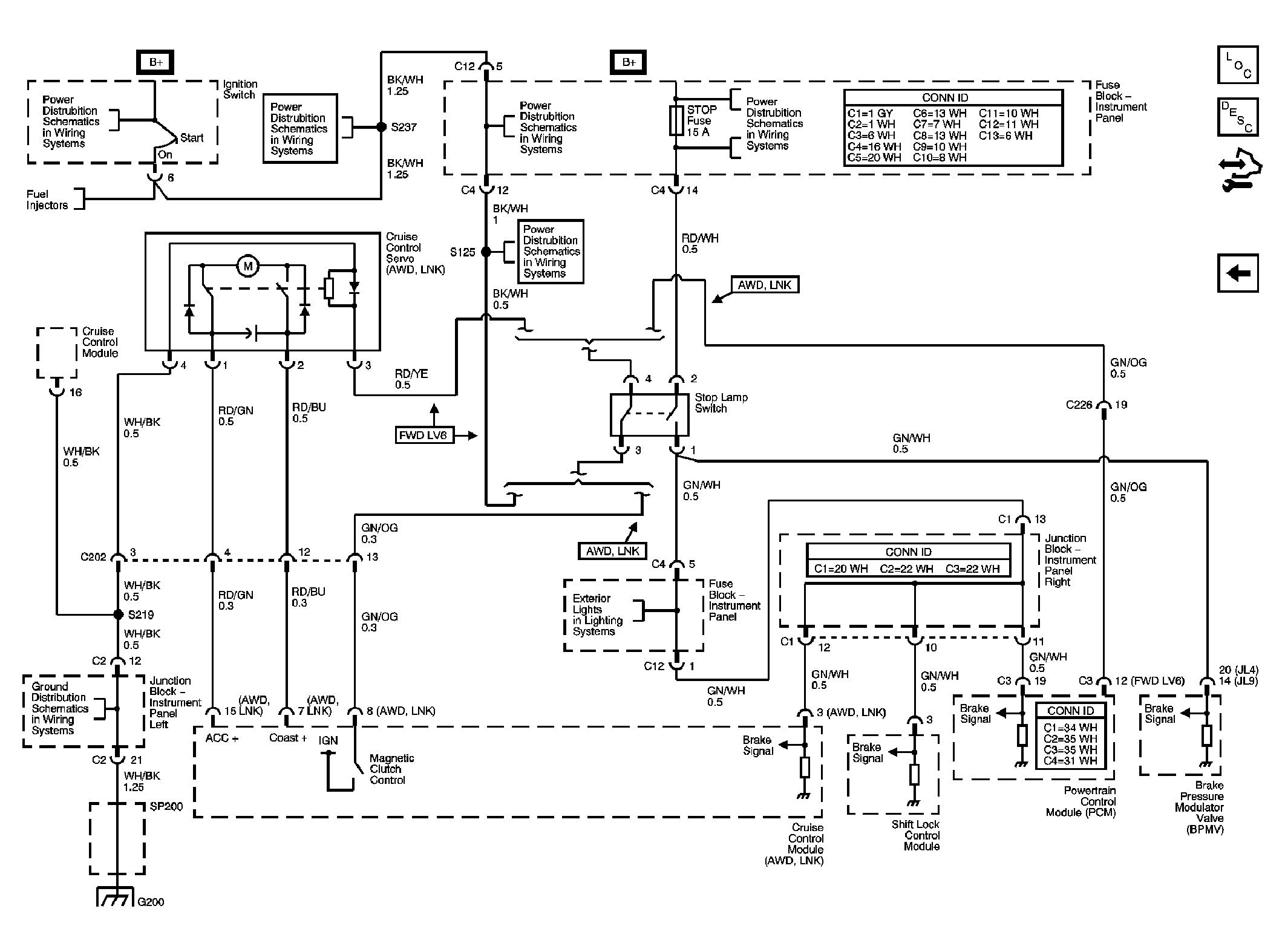

Fig 3: Cruise Control Module and Servo
GM1424592Courtesy of GENERAL MOTORS CORP.
