Vehicle Speed Sensor (VSS) (w/o ABS)

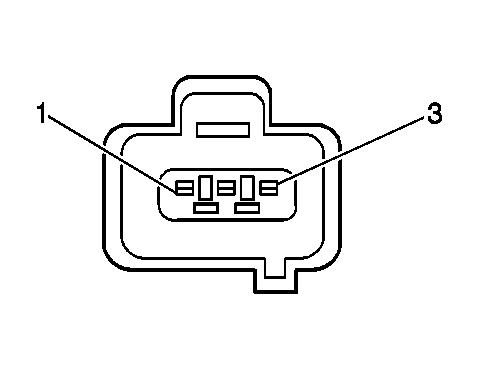

Fig 1: Vehicle Speed Sensor (VSS) (w/o ABS) Connector End View
GM335027Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS) (w/o ABS) Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11143
  • Service: N/A
  • Description: BK
Vehicle Speed Sensor (VSS) (w/o ABS) Terminal Identification

Pin Wire Color Function
1 RD/WH VSS Feed Circuit
2 BN Sensor Ground
3 WT/GN VSS Input Circuit
