Vehicle Speed Sensor (VSS) (ABS)

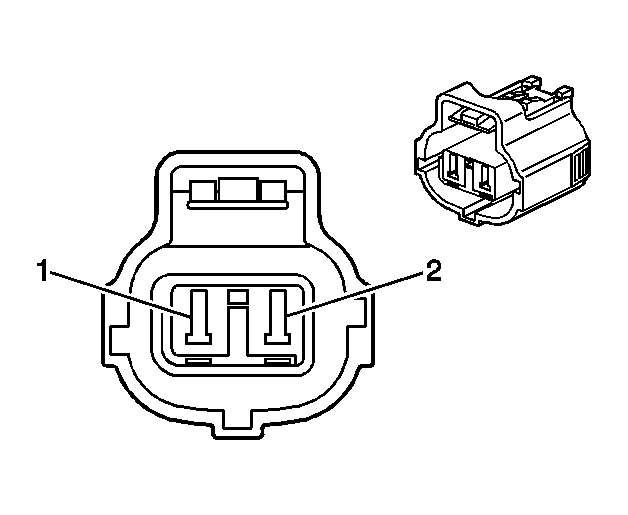

Fig 1: Vehicle Speed Sensor (VSS) (ABS) Connector End View
GM820010Courtesy of GENERAL MOTORS CORP.
Vehicle Speed Sensor (VSS) (ABS) Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11156
  • Service: N/A
  • Description: BK
Vehicle Speed Sensor (VSS) (ABS) Terminal Identification

Pin Wire Color Function
1 BK Sensor Ground
2 WH VSS Input
