Mass Air Flow (MAF) Sensor

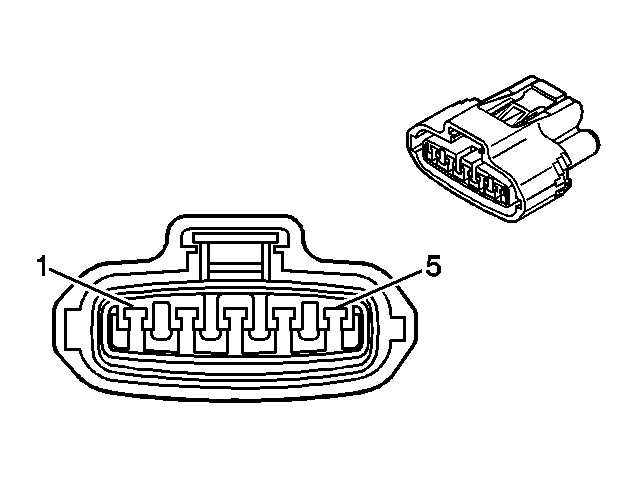

Fig 1: Mass Air Flow (MAF) Sensor Connector End View
GM820101Courtesy of GENERAL MOTORS CORP.
Mass Air Flow (MAF) Sensor Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11317
  • Service: N/A
  • Description: BK
Mass Air Flow (MAF) Sensor Terminal Identification

Pin Wire Color Function
1 BK MAF Feed Circuit
2 BU/WH MAF Signal Low
3 GN MAF Signal High
4 YE/BK IAT Sensor Input
5 BN Sensor Ground
