Heated Oxygen Sensor (HO2S) 2

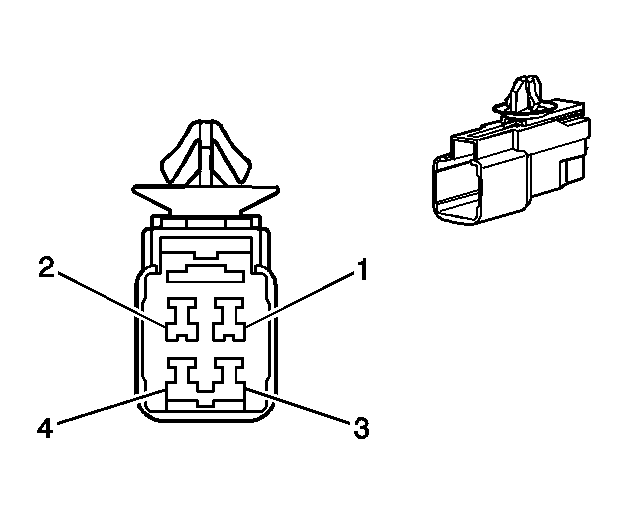

Fig 1: Heated Oxygen Sensor (HO2S) 2 Connector End View
GM820019Courtesy of GENERAL MOTORS CORP.
Heated Oxygen Sensor (HO2S) 2 Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-10794
  • Service: N/A
  • Description: D-GY
Heated Oxygen Sensor (HO2S) 2 Terminal Identification

Pin Wire Color Function
1 BK HO2S2 Feed Circuit
2 PK/BK HO2S2 Heater Control
3 BN Ground
4 WH HO2S2 Heater Control
