EVAP Purge Solenoid Valve

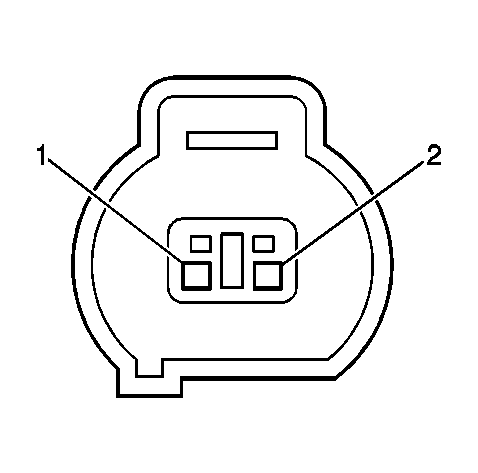

Fig 1: EVAP Purge Solenoid Valve Connector End View
GM339854Courtesy of GENERAL MOTORS CORP.
EVAP Purge Solenoid Valve Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11156
  • Service: N/A
  • Description: BU
EVAP Purge Solenoid Valve Terminal Identification

Pin Wire Color Function
1 BU/BK EVAP Control Circuit
2 BK EVAP Feed Circuit
