Camshaft Position (CMP) Actuator Solenoid Valve

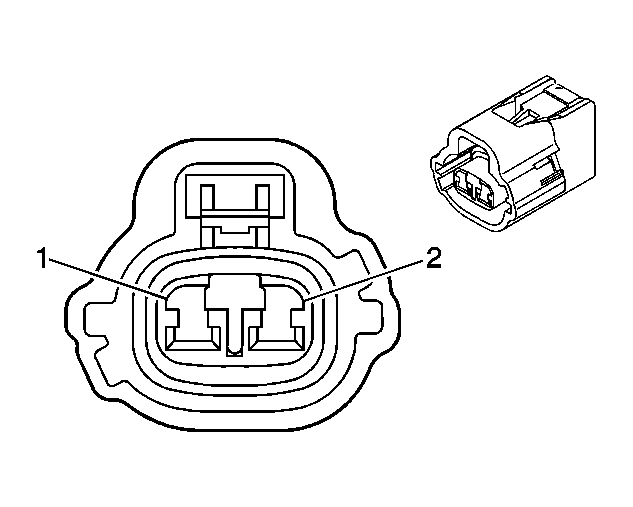

Fig 1: Camshaft Position (CMP) Actuator Solenoid Valve Connector End View
GM820095Courtesy of GENERAL MOTORS CORP.
Camshaft Position (CMP) Actuator Solenoid Valve Connector & Terminal Parts Information

Connector Part Information
  • OEM: 90980-11162
  • Service: N/A
  • Description: BN
Camshaft Position (CMP) Actuator Solenoid Valve Terminal Identification

Pin Wire Color Function
1 YE CMP Actuator High Control
2 BK/YE CMP Actuator Low Control
