Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) trim bezel. Refer to Trim Bezel Replacement - Center in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the PRNDL assembly.

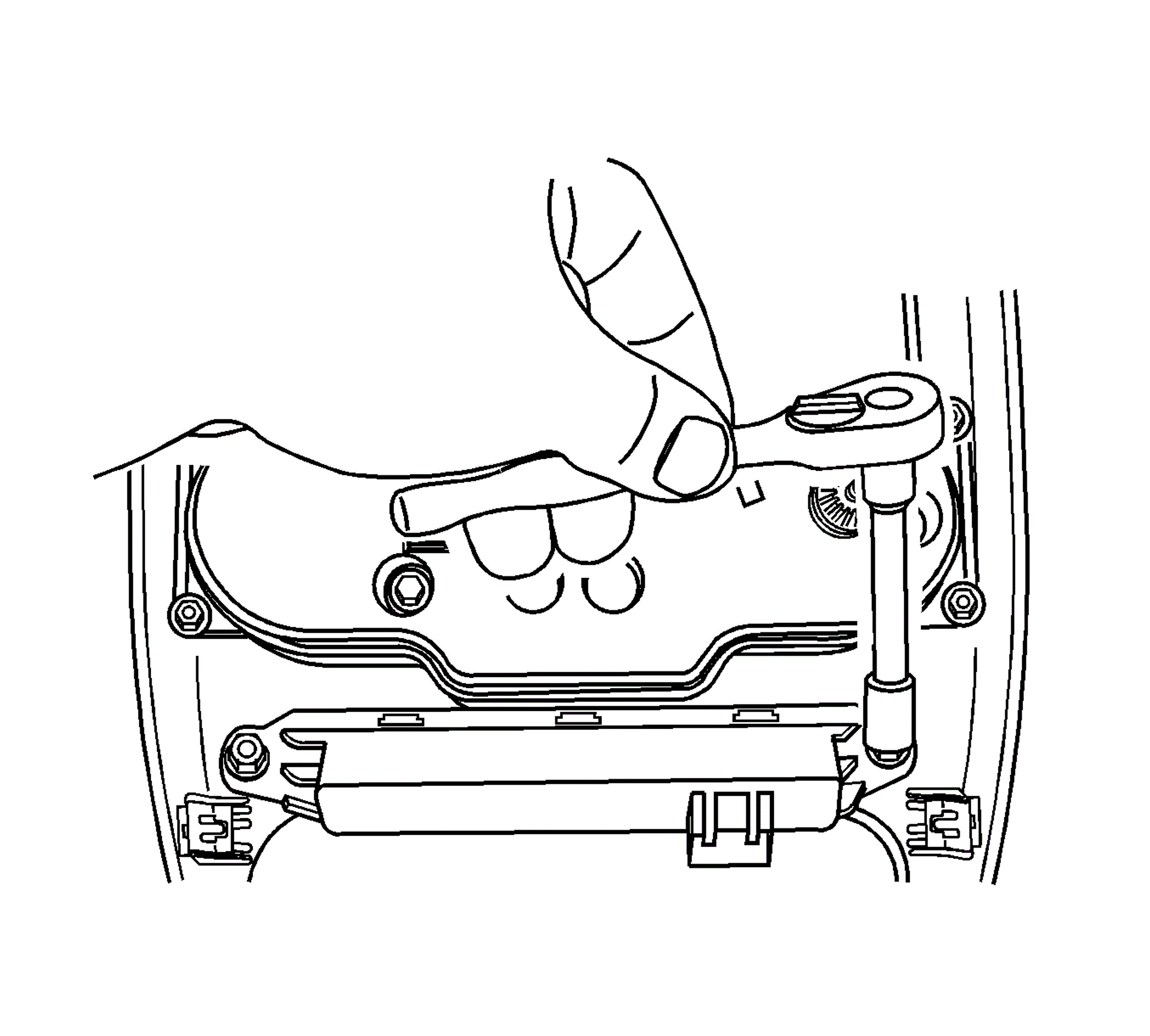

    3. Fig 1: Removing/Installing PRNDL Assembly Screws
    GM1344237Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the PRNDL assembly to the I/P bezel. Remove the PRNDL assembly.
