Removal Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    2. Fig 1: View Of Gasket & Exhaust Pipe
    GM926819Courtesy of GENERAL MOTORS CORP.
  2. Remove the catalytic converter pipe flange to exhaust system pipe flange nuts.
  3. Separate the pipes and discard the gasket.

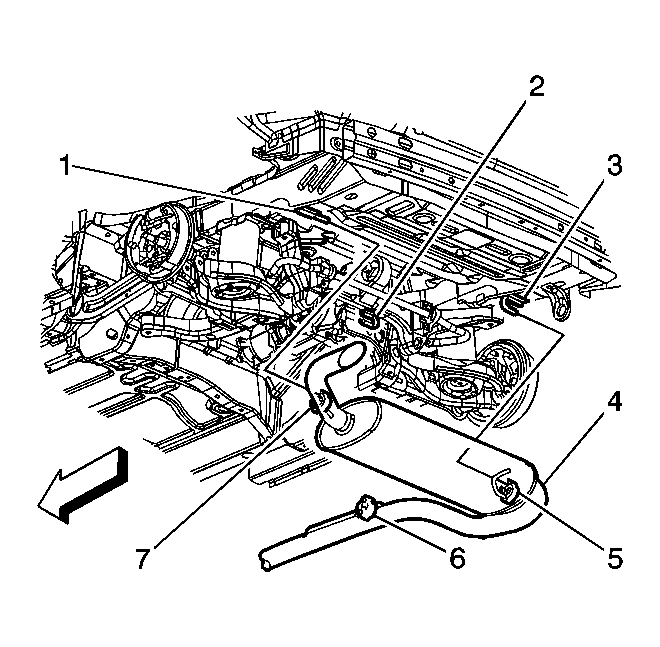

    4. Fig 2: View Of Exhaust System
    GM1370521Courtesy of GENERAL MOTORS CORP.
  4. Separate the rubber isolators (5, 6, 7) from the hangers (1, 2, 3).
  5. Remove the exhaust system (4).
