Installation Procedure

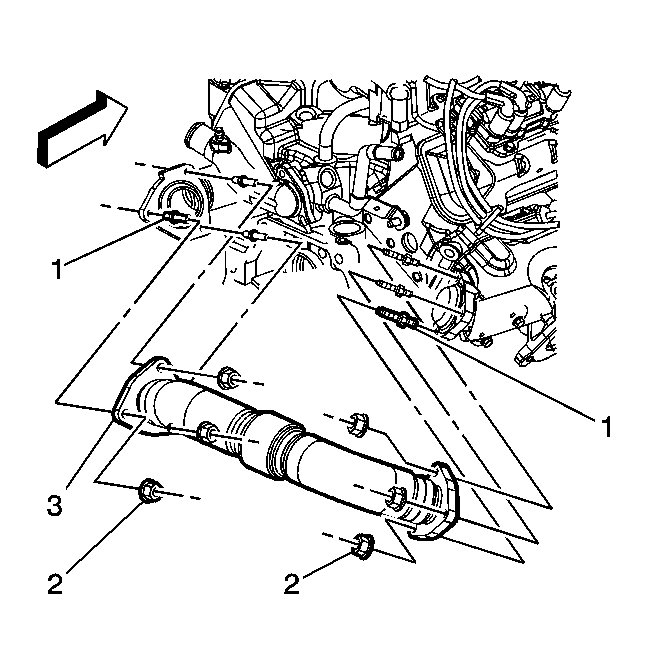

    Fig 1: View Of Exhaust Crossover Pipe, Studs & Nuts
    GM1087635Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install any previously removed exhaust manifold studs (1).

    Tighten:  Tighten the studs to 25 N.m (18 lb ft).

  2. Install the exhaust crossover pipe (3).
    3. IMPORTANT: Maintain approximately 6.35 mm (0.25 in) between the thermostat housing and the exhaust crossover pipe.
  3. Install the exhaust crossover pipe nuts (2).

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

  4. Install the battery box. Refer to Battery Box Replacement .
