Horn Replacement

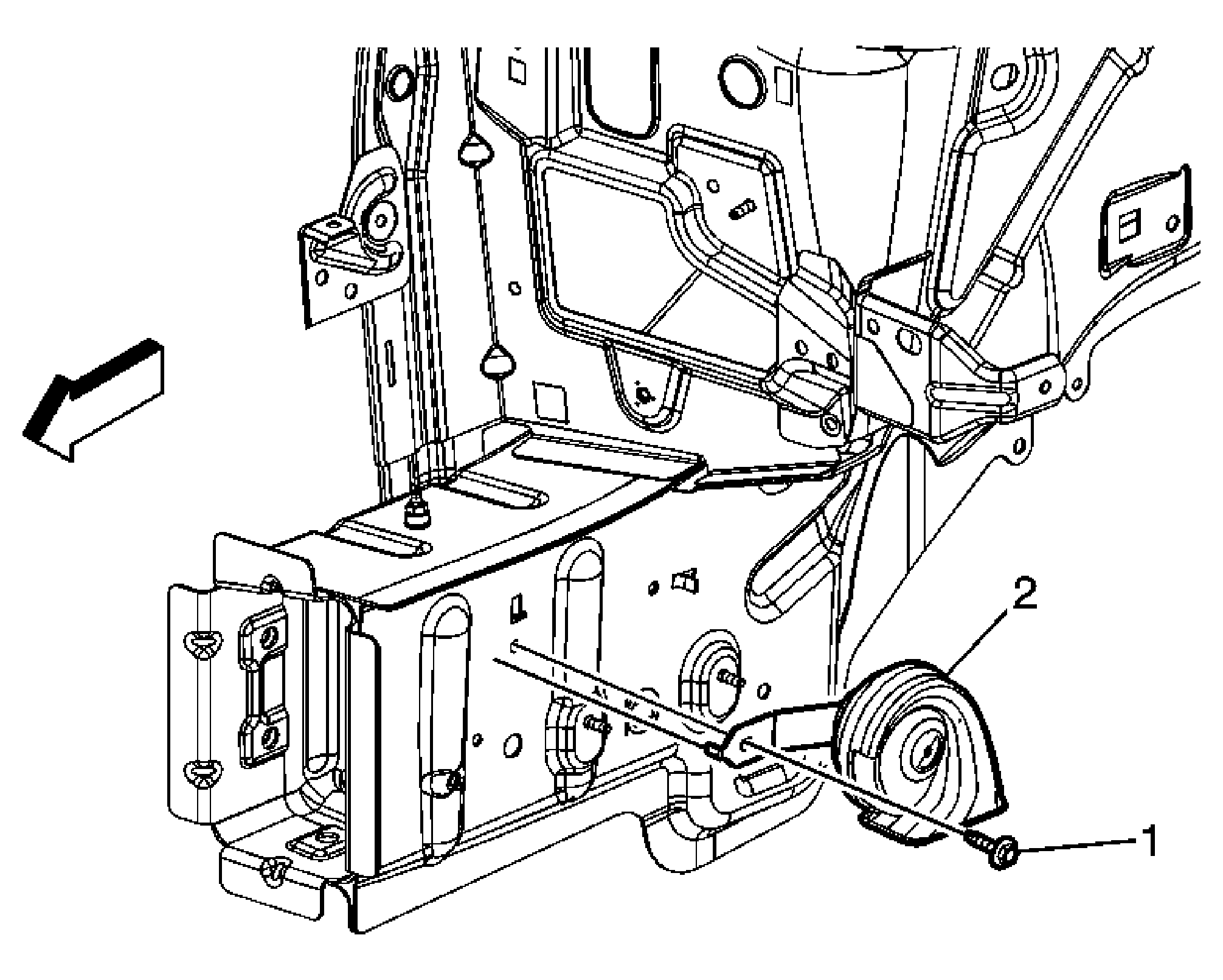

Fig 1: View Of Horn
GM1716544Courtesy of GENERAL MOTORS CORP.
Horn Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the left headlamp. Refer to Headlamp Replacement (Equinox) or Headlamp Replacement (Torrent) .
1 Horn Bolt

Tighten:  10 N.m (89 lb in)
2 Horn
Tip:  Disconnect the electrical connector.
