Removal Procedure

IMPORTANT:
  • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
  • Always route the replacement cable the same way as the original cable.
    Fig 1: View Of Battery Cables & Terminal Nut
    GM1822394Courtesy of GENERAL MOTORS CORP.
  1. Remove the battery box. Refer to Battery Box Replacement .
  2. Disconnect the positive and negative battery cable clip (3) from the battery tray support bracket.

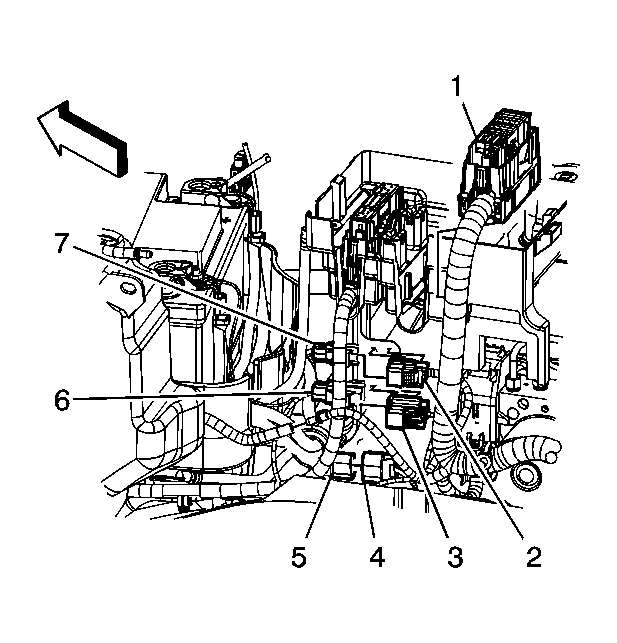

    3. Fig 2: View Of Battery, Cables & Related Components
    GM1822518Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the negative battery cable electrical connector (7) from the body wiring harness electrical connector (2).
  4. Disconnect the body wiring harness electrical connector (4) from the battery current sensor (5).
    5. Fig 3: View Of Negative Battery Cable Ground Terminal Nu
    GM1822523Courtesy of GENERAL MOTORS CORP.
  5. Remove the negative battery cable ground terminal nut from the wheelhouse stud.
  6. Remove the negative battery cable ground terminal from the wheelhouse stud.

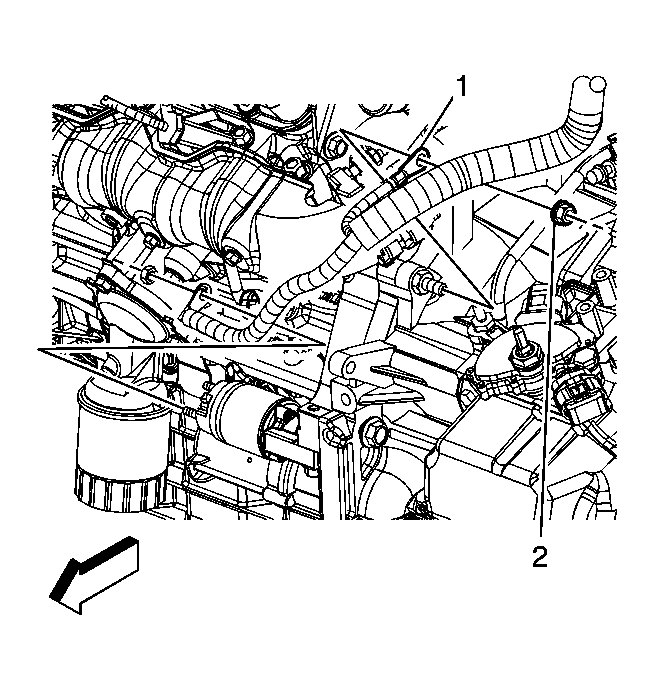

    7. Fig 4: View Of Negative Battery Cable
    GM1822524Courtesy of GENERAL MOTORS CORP.
  7. Remove the negative battery cable ground terminal nut (2) from the transaxle stud.
  8. Remove the negative battery cable ground terminal (1) from the transaxle stud.
  9. Cut the tape and remove the negative battery cable from the wiring loom.
