Rear Side Door Window Switch Replacement

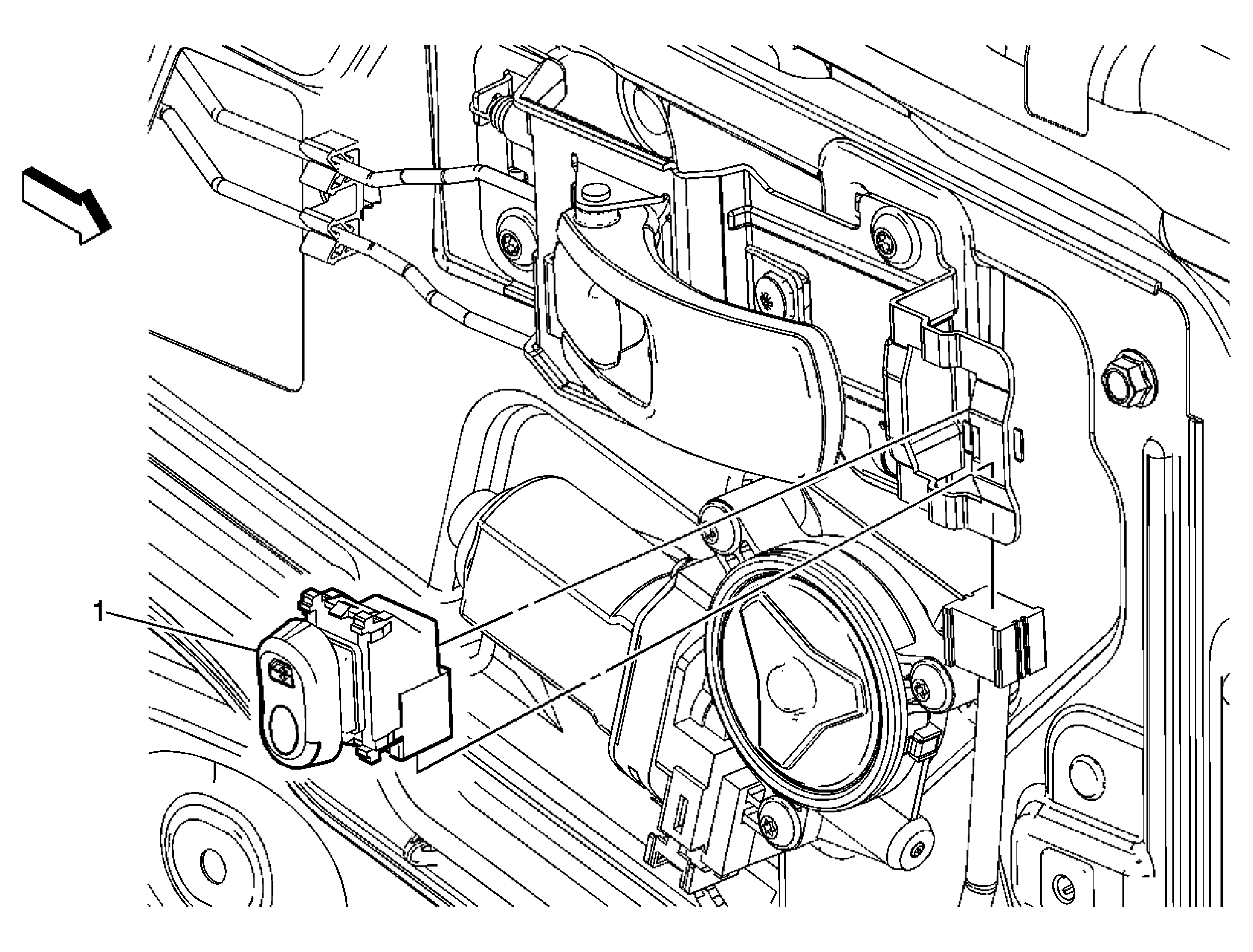

Fig 1: Rear Side Door Window Switch
GM1720195Courtesy of GENERAL MOTORS CORP.
Rear Side Door Window Switch Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Remove rear door extension trim panel. Refer to Upper Extension Trim Panel Replacement (Front Side Door) or Upper Extension Trim Panel Replacement (Rear Side Door) .
  2. Remove rear door handle bezel. Refer to Door Handle Bezel Replacement (Front Side Door) or Door Handle Bezel Replacement (Rear Side Door) .
  3. Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Rear Side Door Window Switch Assembly
Tip:
  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from door handle assembly.
