Rear Side Door Window Regulator Motor Replacement

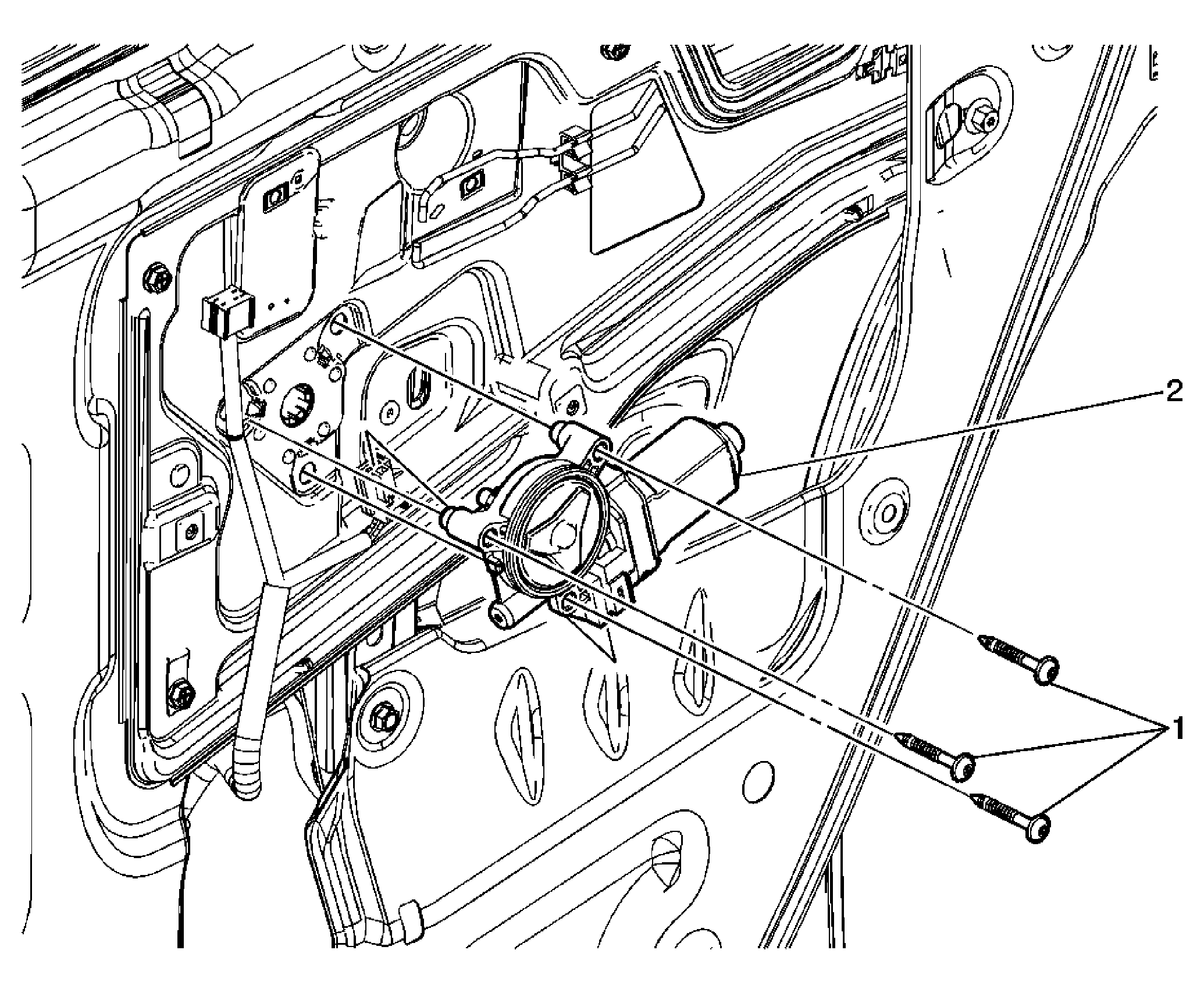

Fig 1: View Of Rear Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Rear Side Door Window Regulator Motor Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Rear Side Door Window Regulator Motor Assembly Tip: Disconnect electrical connector.

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Regulator Motor Screw (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 8 N.m (71 lb in)

Rear Side Door Window Regulator Motor Assembly
Tip: Disconnect electrical connector.
