Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

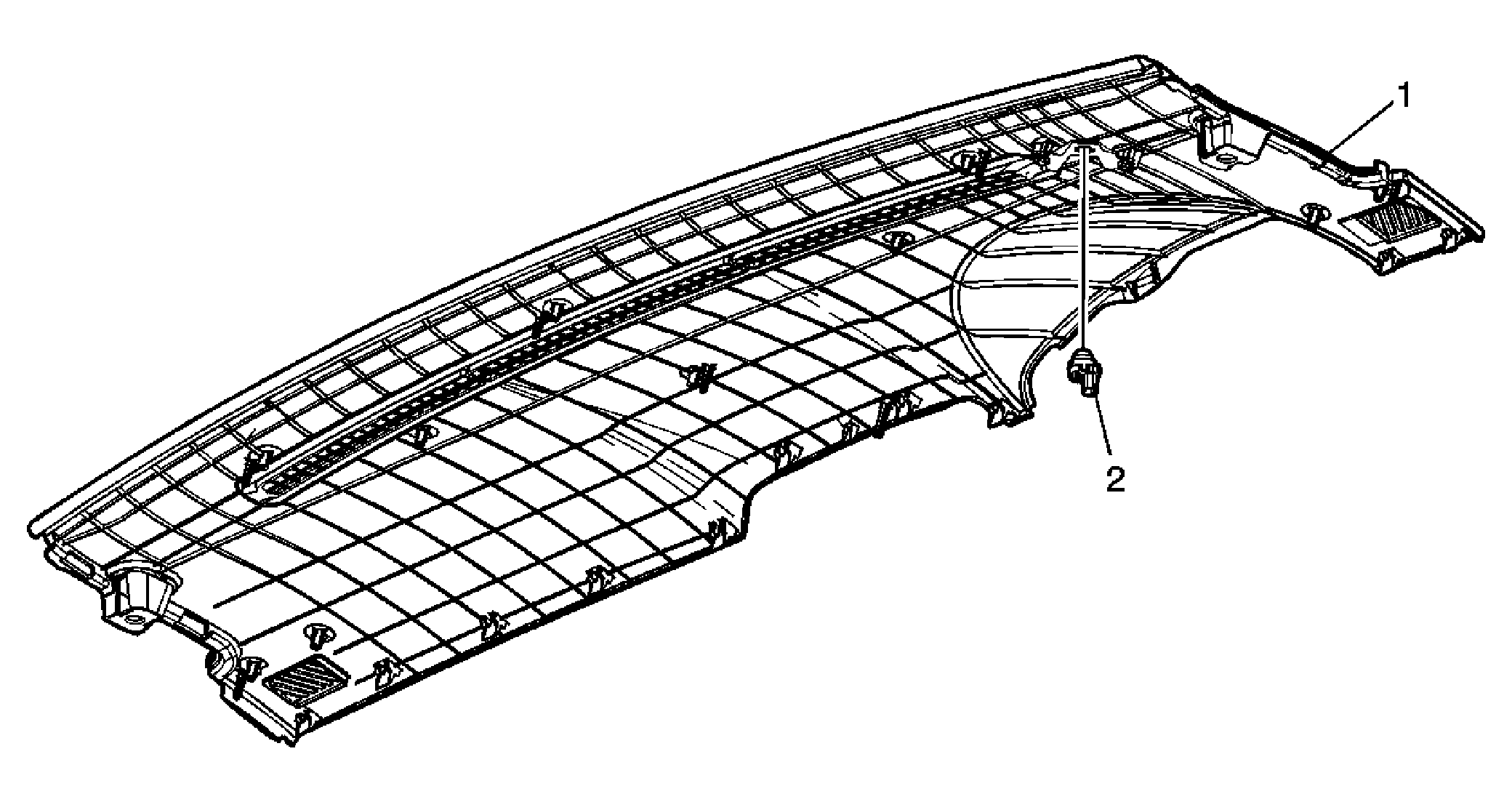

Fig 1: Locating Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim Panel Procedure: Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement .
2	Ambient Light Sensor Tip: Twist and pull down to remove the sensor.
