Hazard Warning Switch Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

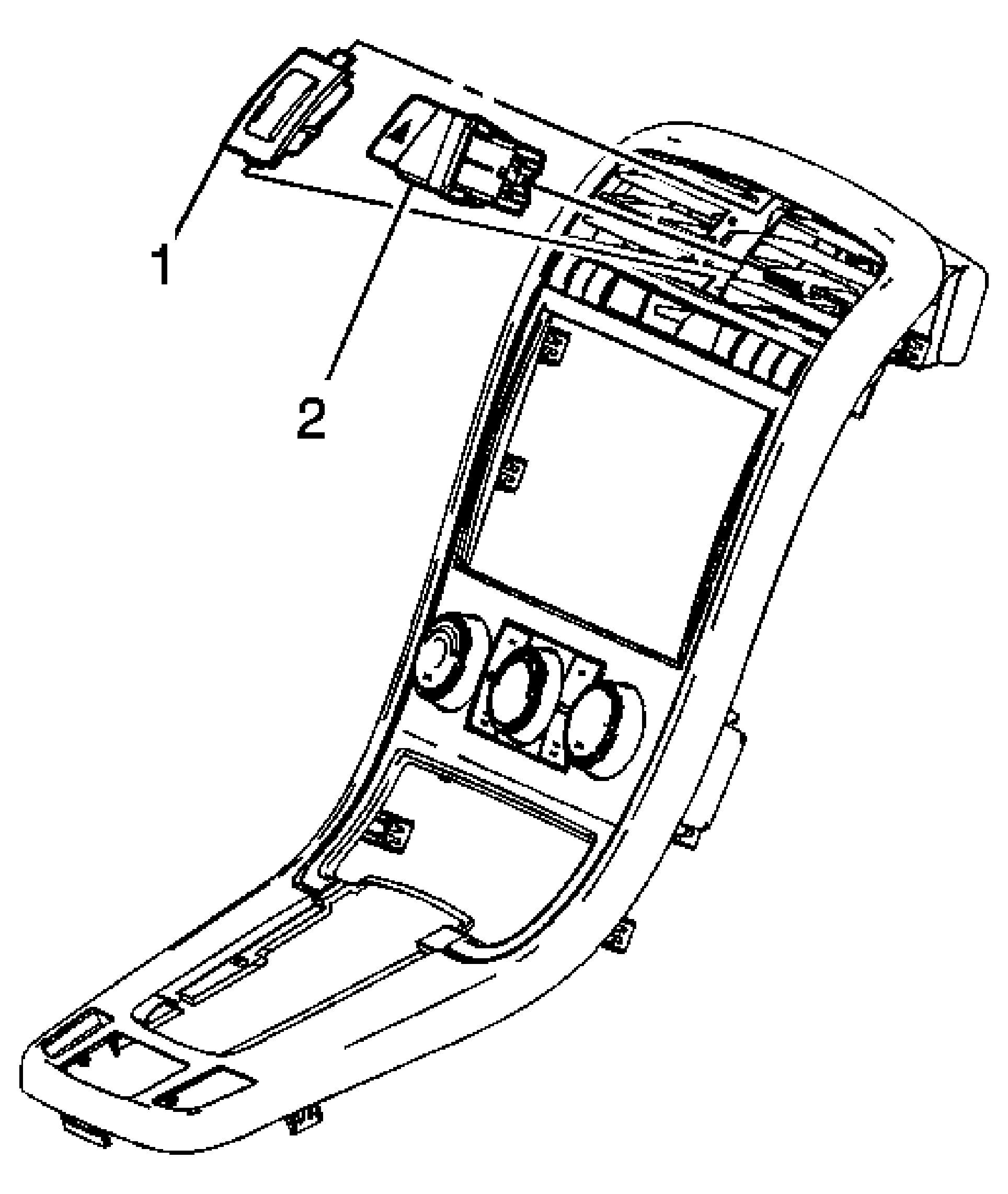

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel center trim panel. Refer to Instrument Panel Accessory Bezel Replacement . |
|
| 1 | Instrument Panel Accessory Trim Plate |
| 2 | Hazard Warning Switch Tip: Squeeze the tabs together and remove through the front of the center trim panel. |
