Immobilizer Schematics

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

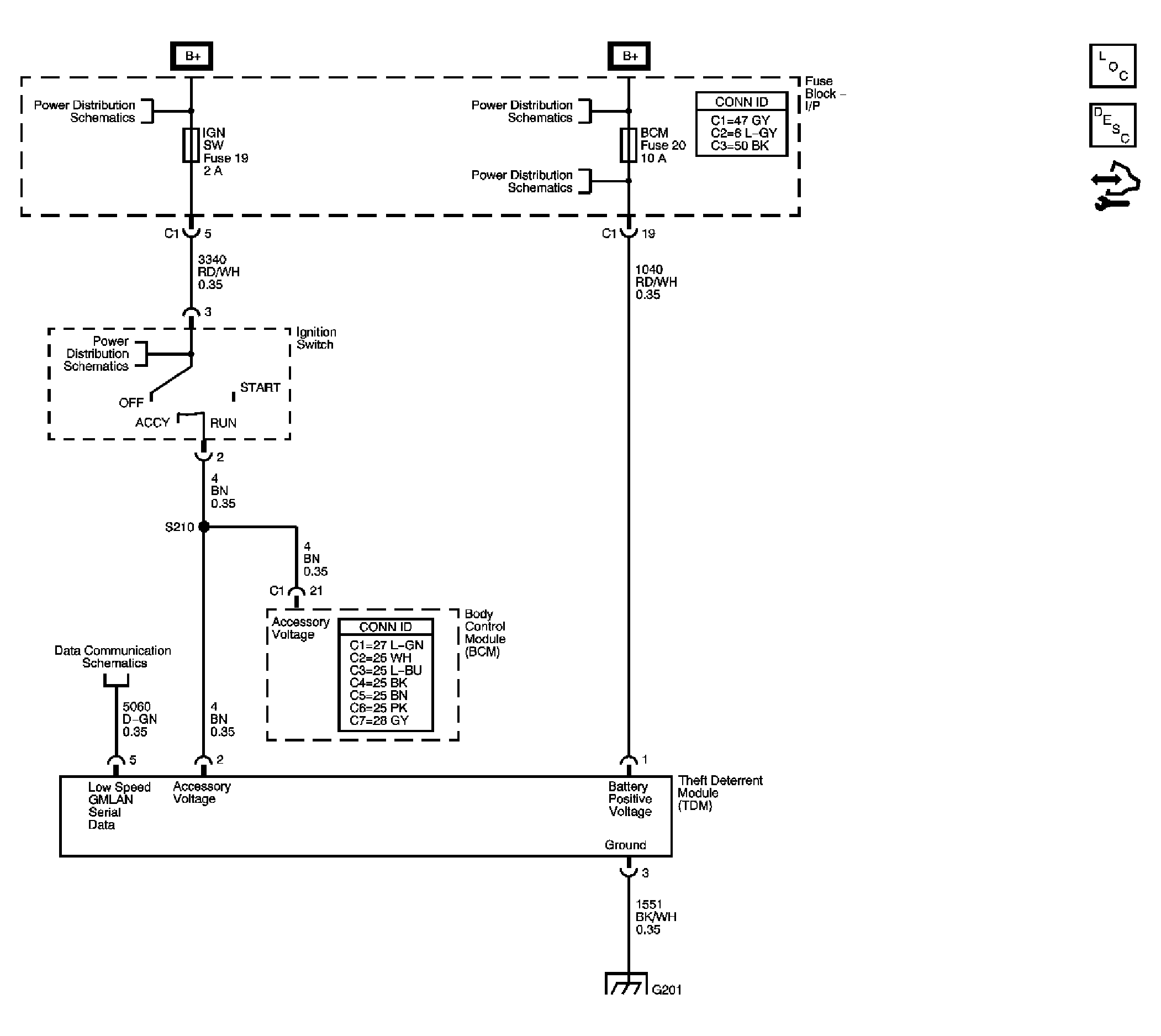

Fig 1: Identifying Immobilizer Schematics
GM1923595Courtesy of GENERAL MOTORS CORP.
