Front Side Door Window Channel Replacement

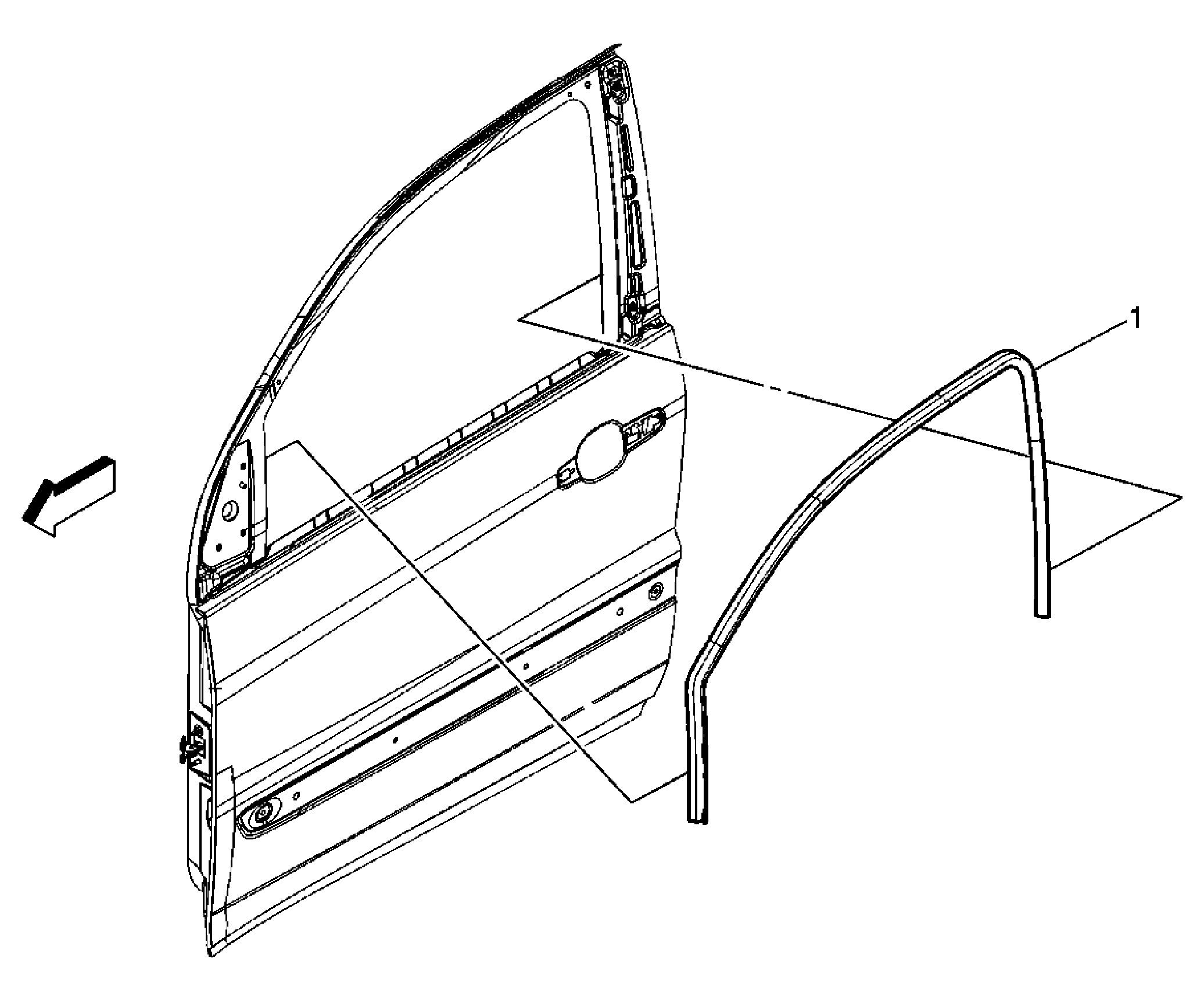

Fig 1: View Of Front Side Door Window Channel
GM1718837Courtesy of GENERAL MOTORS CORP.
Front Side Door Window Channel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedure

  1. Lower front door window.
  2. Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove inner belt seal. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
1 Front Side Door Window Upper Reveal Molding Assembly
Tip:
  1. When installing, start at lower rear corner of window, press weatherstrip run channel onto door flange.
  2. Ensure channel is fully secured into the upper corners of door frame.


Fig 1: View Of Front Side Door Window Channel
GM1719023Courtesy of GENERAL MOTORS CORP.
Front Side Door Window Channel Replacement

Callout Component Name

Preliminary Procedures

  1. Remove front door window. Refer to Front Side Door Window Replacement .
  2. Remove front door weatherstrip run channel. Refer to Front Side Door Window Channel Replacement .
  3. Remove outside rearview mirror. Refer to Rearview Mirror Replacement .
  4. Remove front door applique. Refer to Front Door Frame Applique Replacement .
1 Front Side Door Window Channel Bolt (Qty: 6)
NOTE: Refer to Fastener Notice .

Tighten:  8 N.m (71 lb in)
2 Front Side Door Window Channel Assembly
Tip:
  1. Starting from the rear corner of the door, remove seal from door header flange.
  2. When re-installing, start from the rear corner.
