Power Mirror Switch Replacement

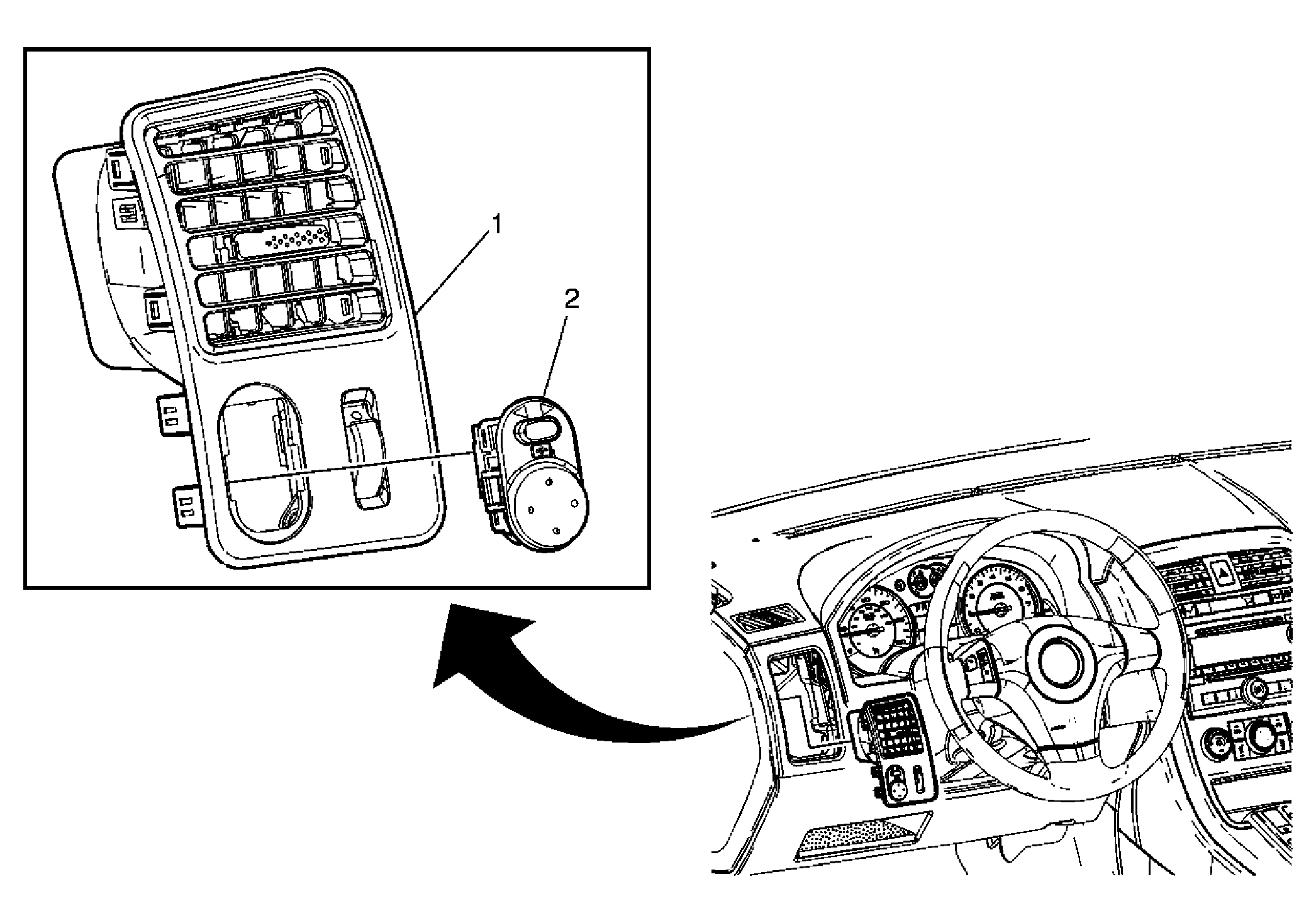

Fig 1: View Of Power Mirror Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Air Outlet Assembly Tip: Carefully pry out the outlet assembly using a nylon flat bladed tool. Disconnect the electrical connectors.
2	Power Mirror Switch Tip: Squeeze the tabs inward from the rear of the outlet assembly and push the power mirror switch out through the front of the outlet.
