Ignition and Start Switch Replacement

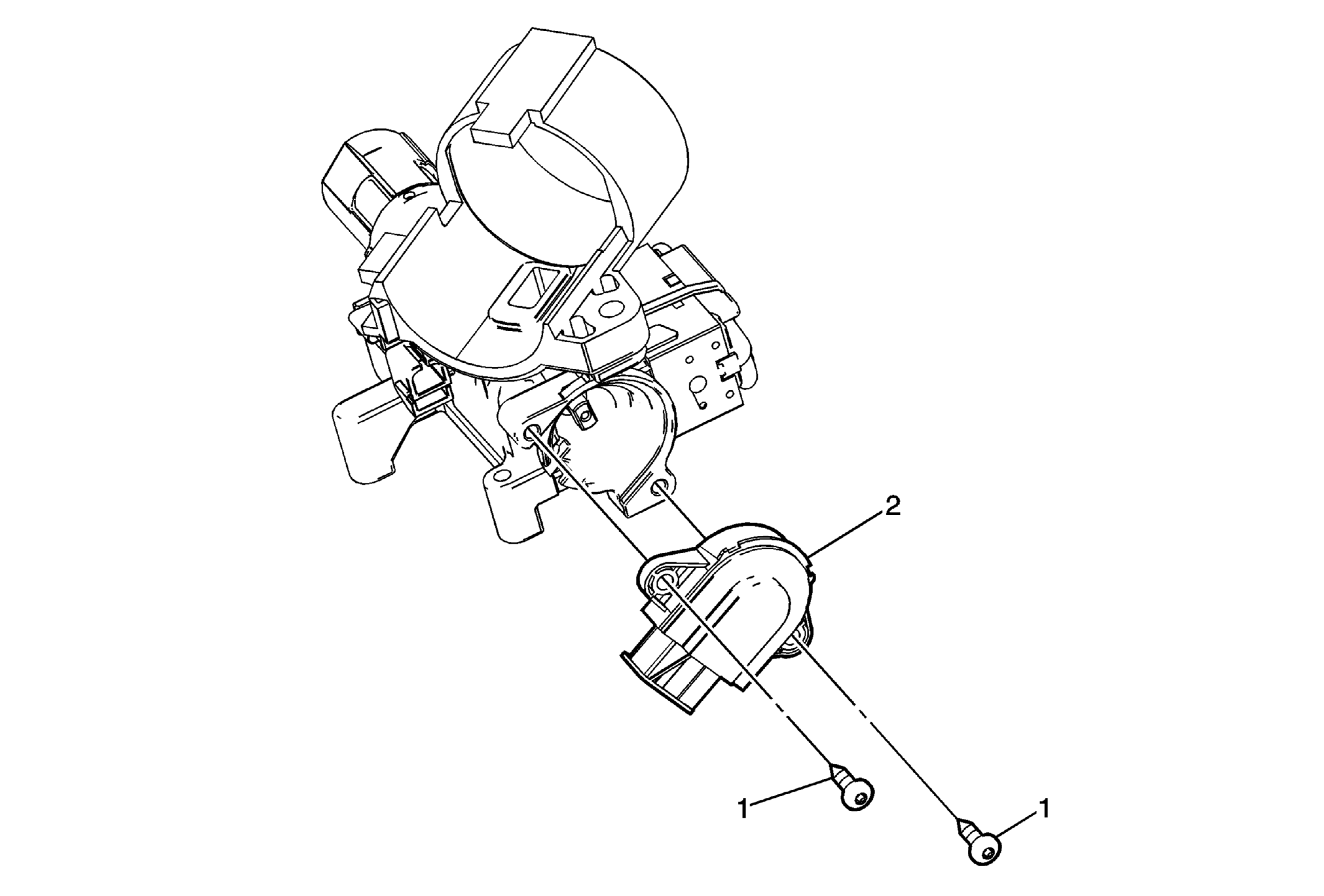

Fig 1: View Of Ignition Housing Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the ignition lock cylinder case. Refer to Ignition Lock Cylinder Case Replacement .
1	Ignition/Start Switch Bolt (Qty: 2) NOTE: Refer to FASTENER NOTICE in Cautions and Notices. Tighten:  2 N.m (18 lb in)
2	Ignition/Start Switch
