Data Communication Schematics

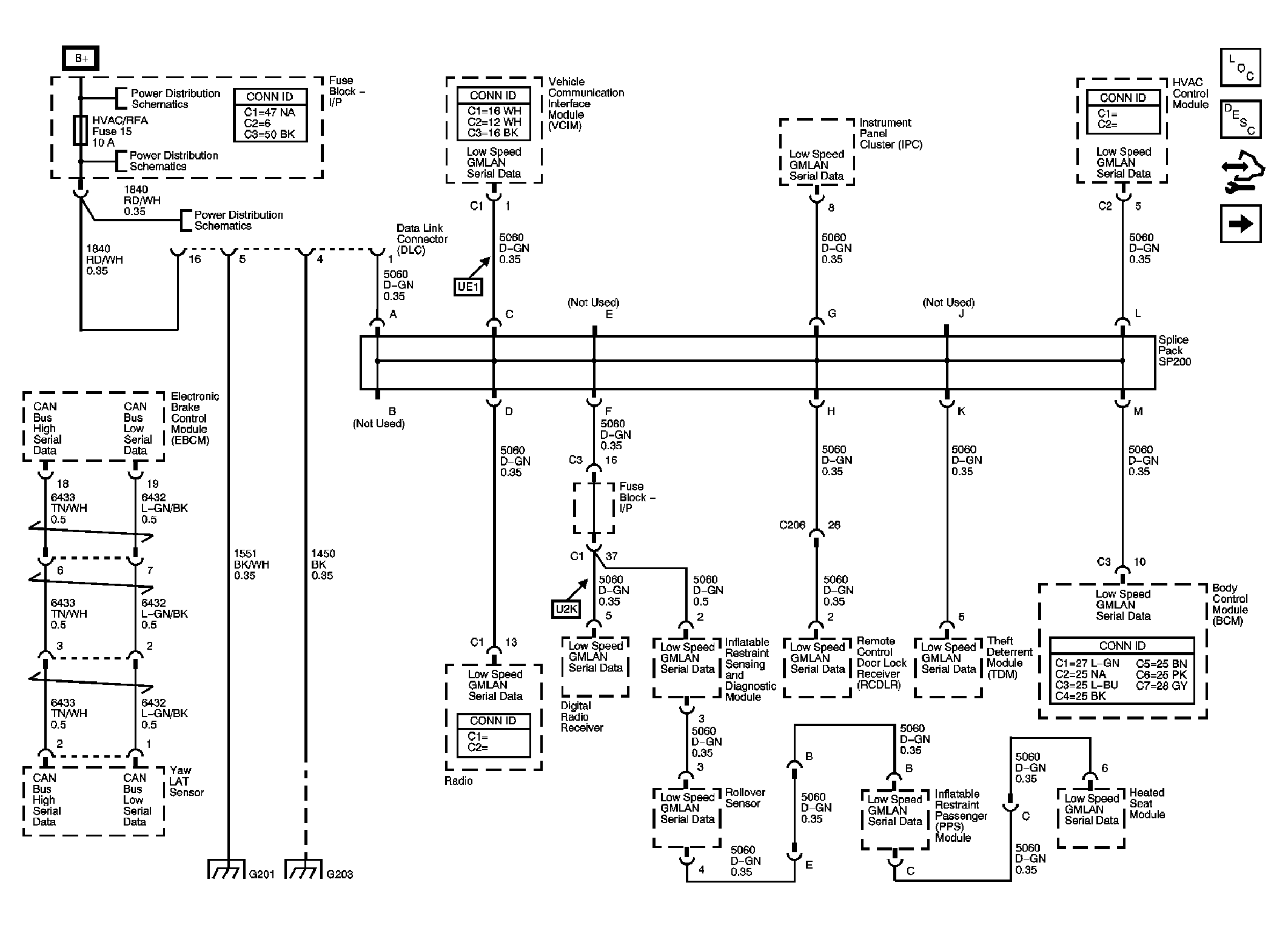

Fig 1: Low Speed GMLAN Schematic
GM1764956Courtesy of GENERAL MOTORS CORP.

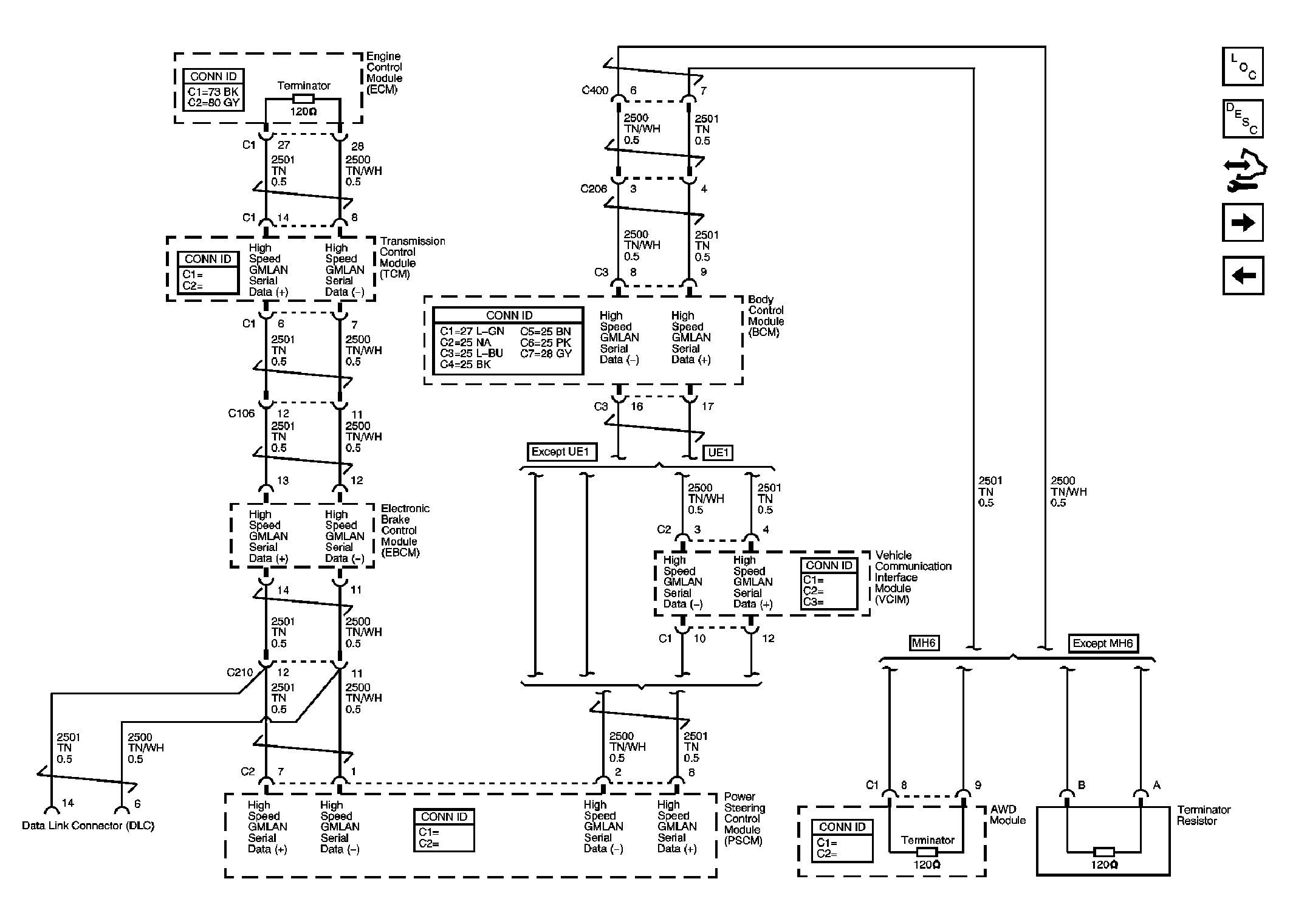

Fig 2: High Speed GMLAN Schematic
GM1764961Courtesy of GENERAL MOTORS CORP.
Fig 3: Communication Enable Schematic
GM1844559Courtesy of GENERAL MOTORS CORP.
