Transfer Case Control Component Views

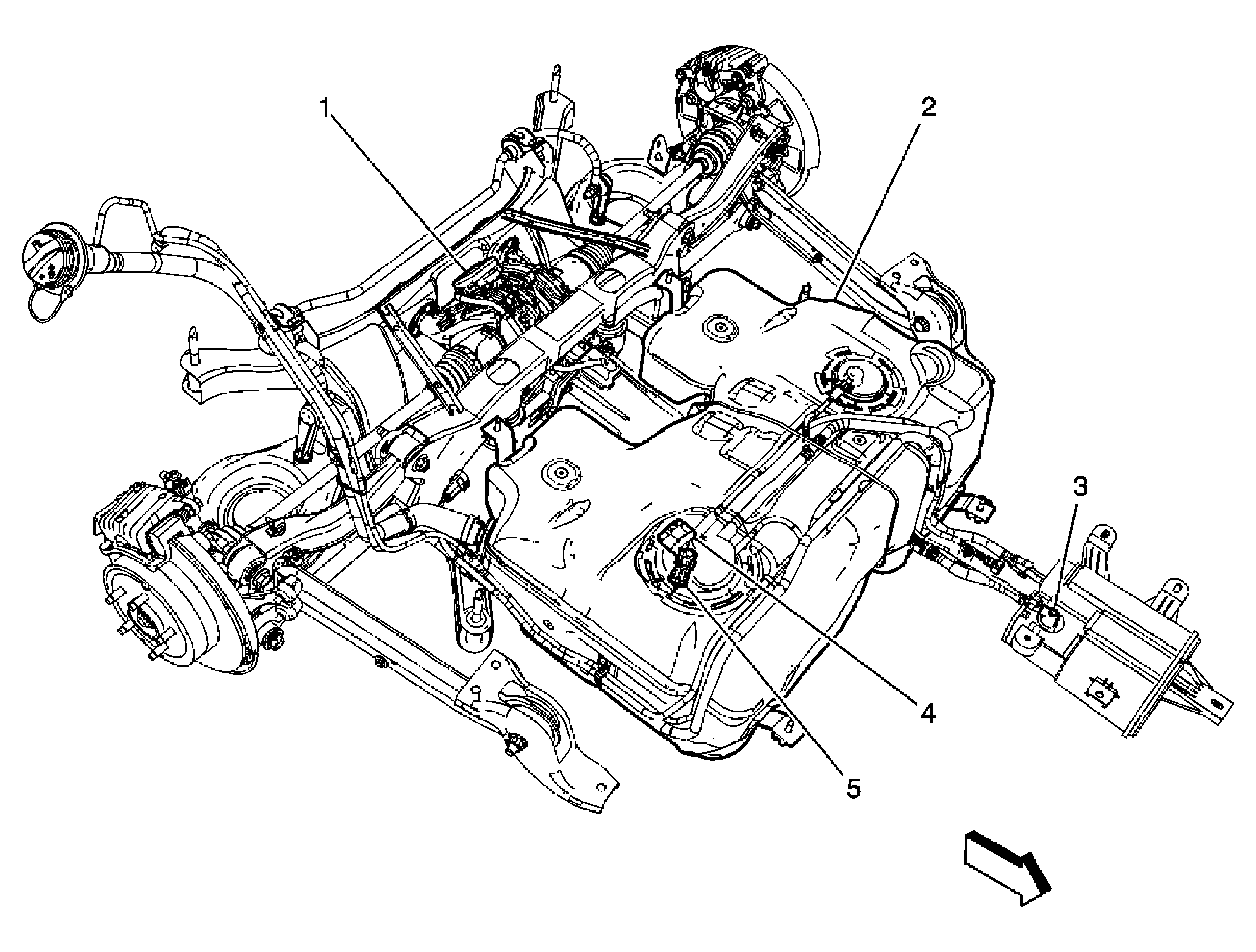

Fig 1: Near Rear Differential View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Differential Clutch Control Module
2	Fuel Tank
3	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
4	Fuel Sending Unit
5	Fuel Tank Pressure (FTP) Sensor
