Inflatable Restraint I/P Module Connector End View C2

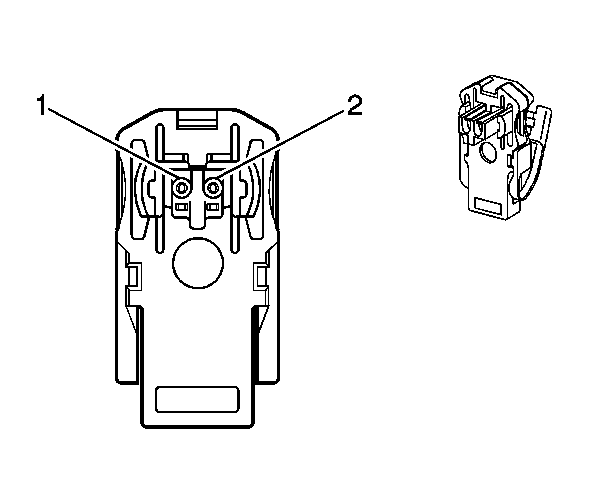

Fig 1: Inflatable Restraint I/P Module C2 Connector End View
GM1508930Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint I/P Module C2 Connector Parts Information

Connector Part Information
  • OEM: 252922343
  • Service: Service by Harness - See Part Catalog
  • Description: 2-Way F (YE)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Inflatable Restraint I/P Module C2 Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 GY 3027 I/P Module - Stage 2 - High Control
2 PU 3026 I/P Module - Stage 2 - Low Control
