Power and Grounding Component Views

Fig 1: View Above Battery

GM1827802

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	LF Strut Cover
3	Engine Control Module (ECM)

Fig 2: View Of Steering Column Components

GM1825916

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Theft Deterrent Module
5	Power Steering Motor
6	Power Steering Control Module (PSCM)
7	Ignition Key Cylinder Lock Solenoid
8	Ignition Switch

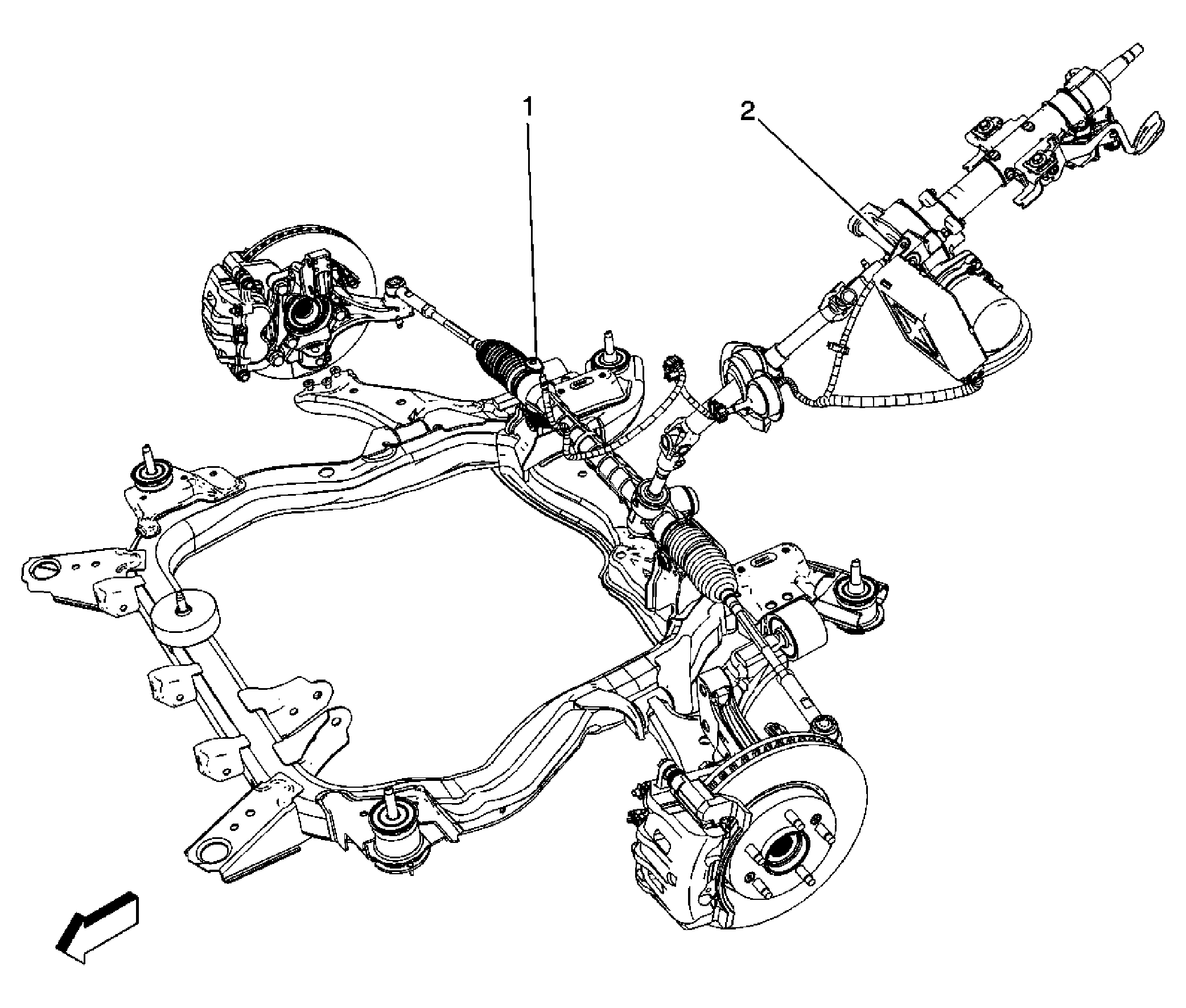

Fig 3: View Of Power Steering Harness

GM1776531

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Ring Terminal
2	G207

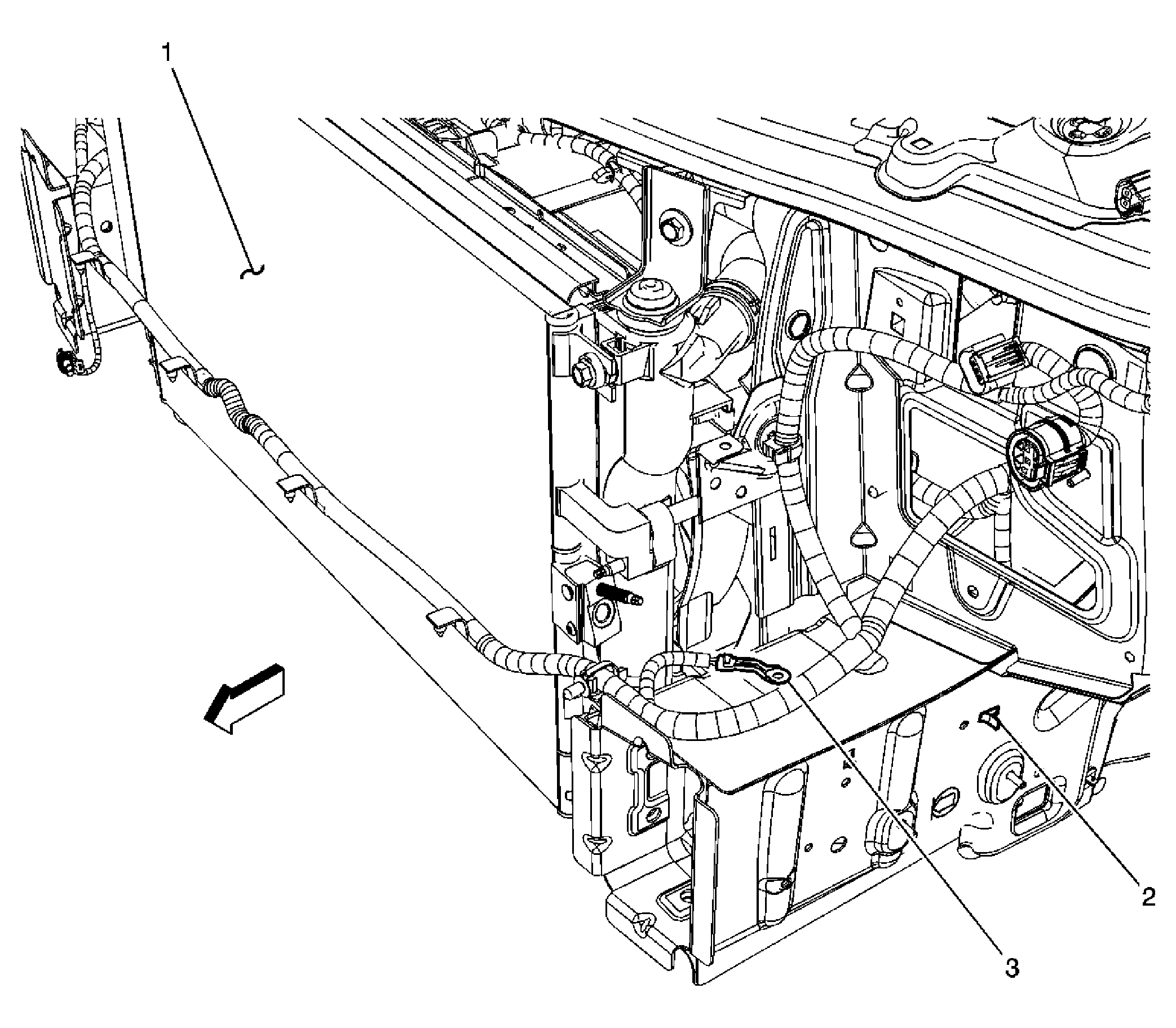

Fig 4: G101

GM1825861

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Condenser
2	LF Frame Rail
3	G101

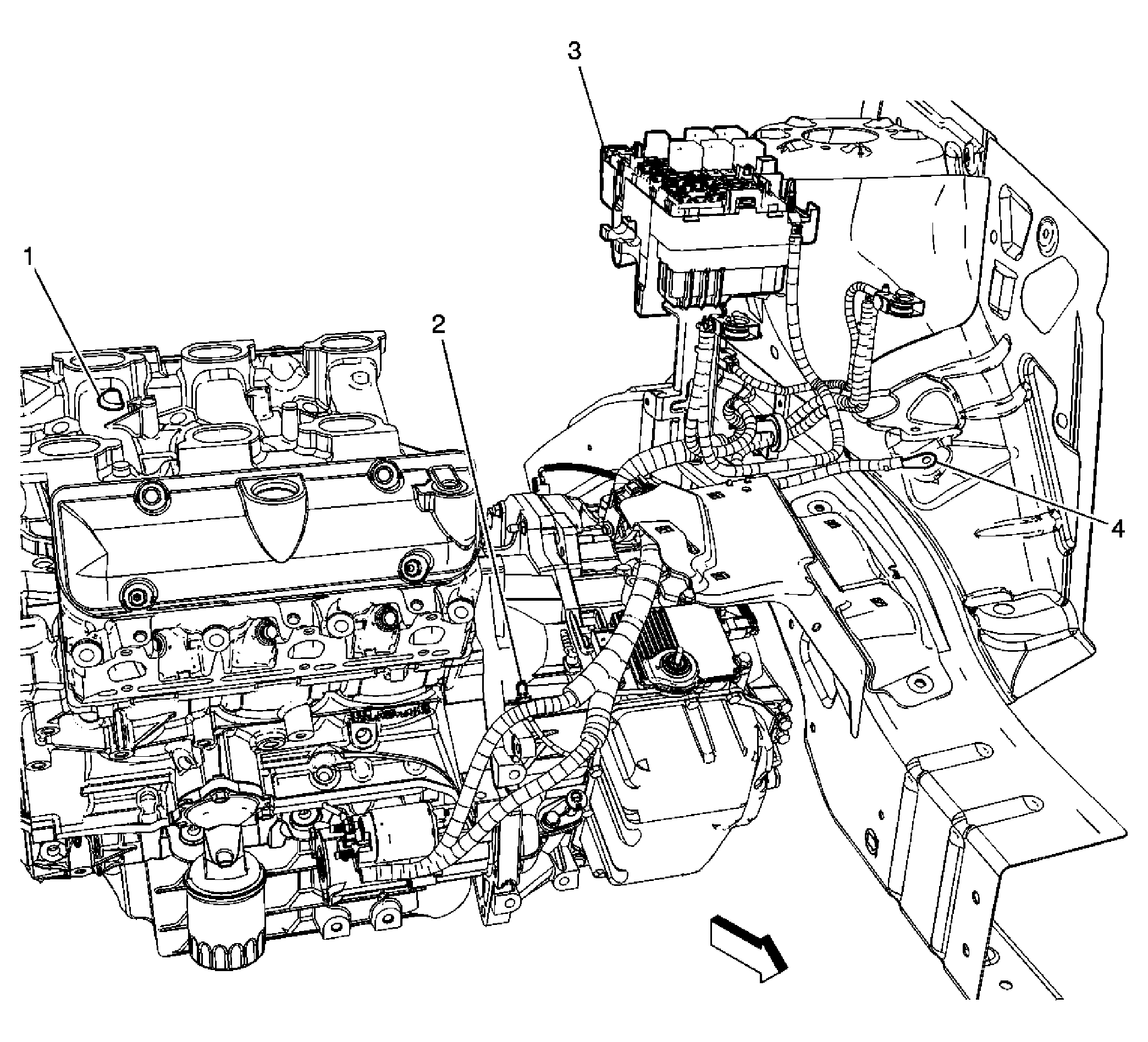

Fig 5: G103 and G105

GM1825855

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Intake Manifold
2	G105
3	Fuse Block - Underhood
4	G103

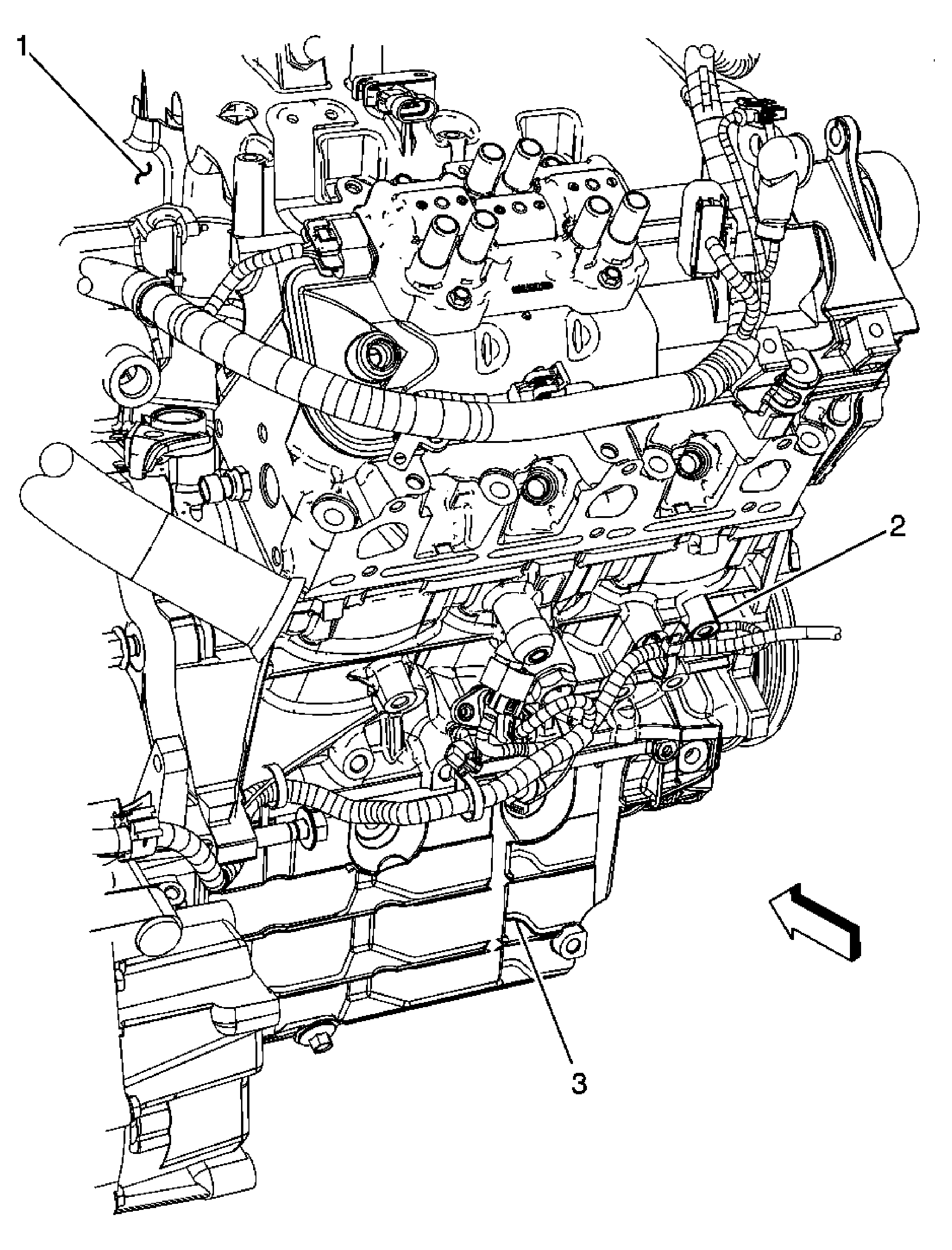

Fig 6: G111

GM1825854

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intake Manifold
2	G111
3	Oil Pan

Fig 7: G201

GM1825844

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	G201
3	Floor Panel

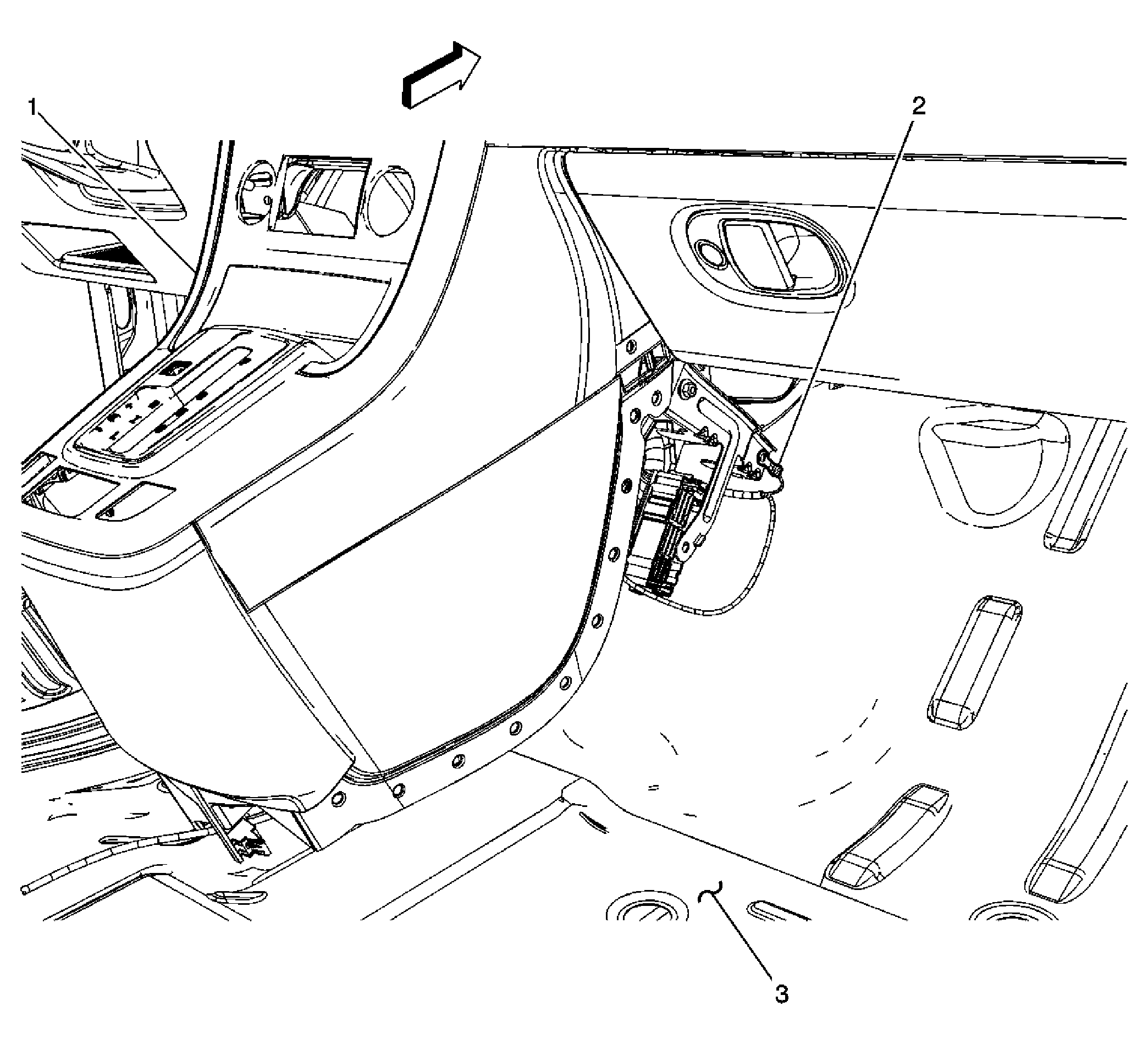

Fig 8: G203

GM1825849

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	G203
3	Floor Panel

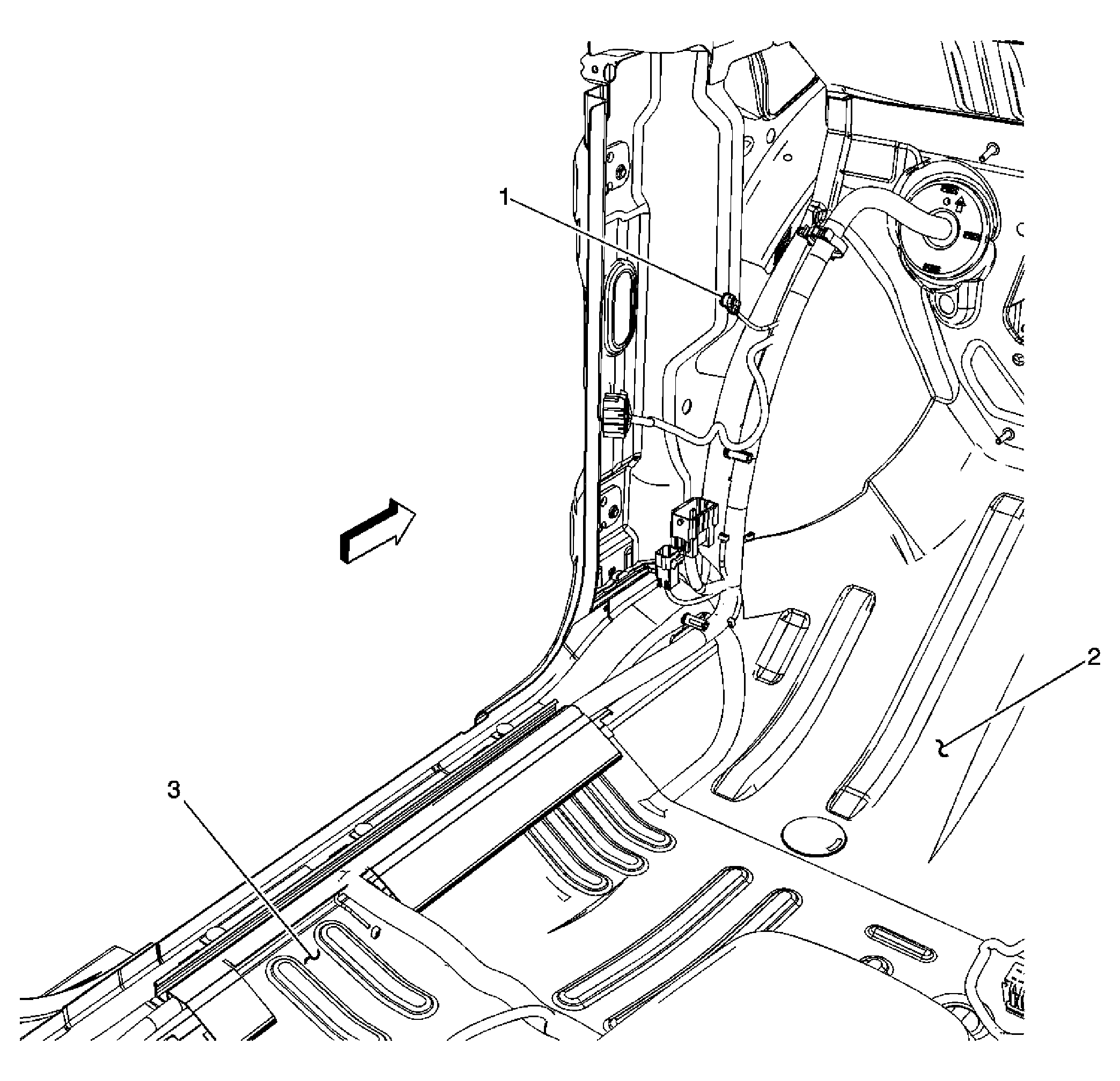

Fig 9: G205

GM1825852

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G205
2	Dash Panel
3	Floor Panel

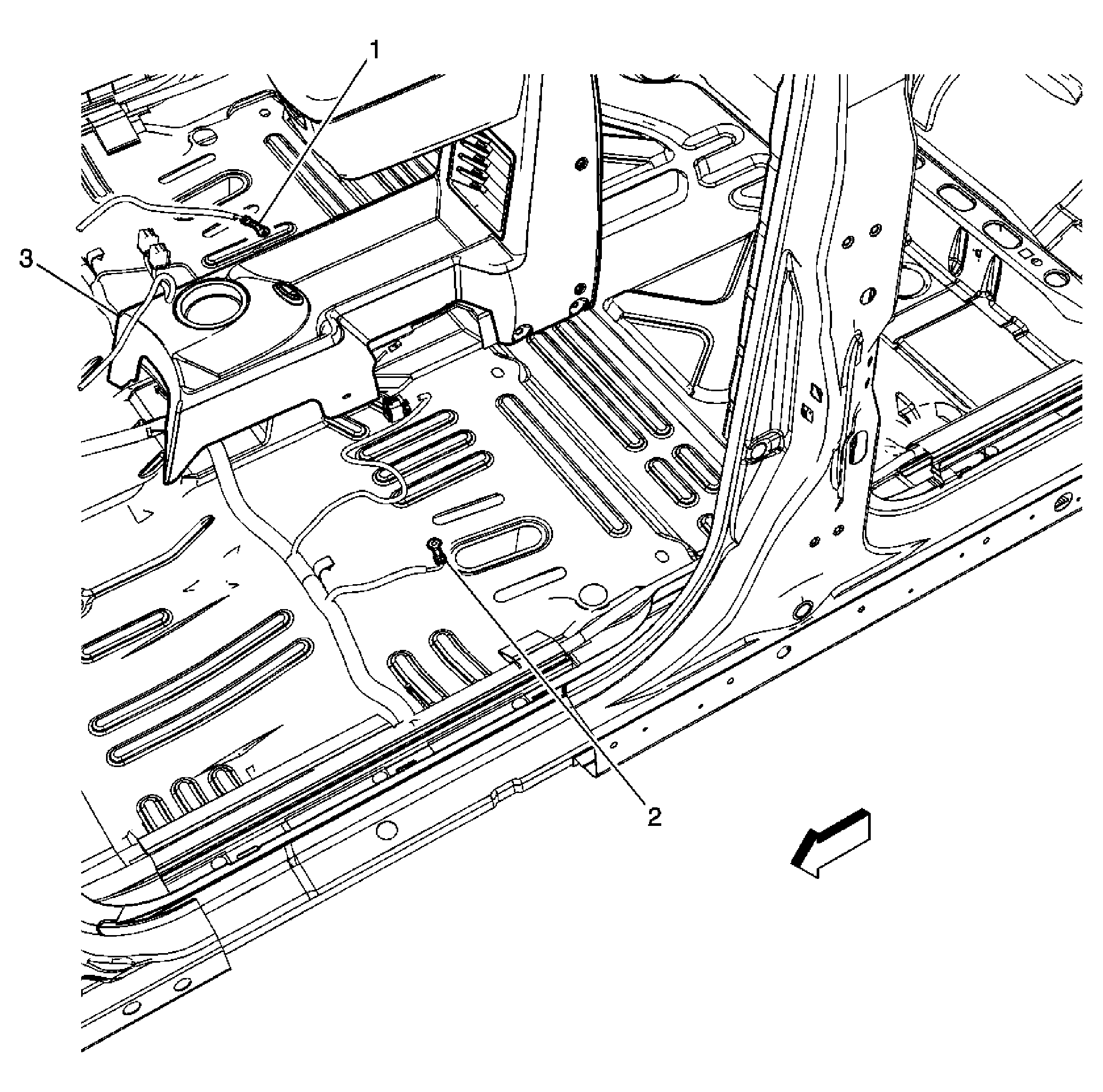

Fig 10: G301 and G311

GM1825853

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G311
2	G301
3	Console

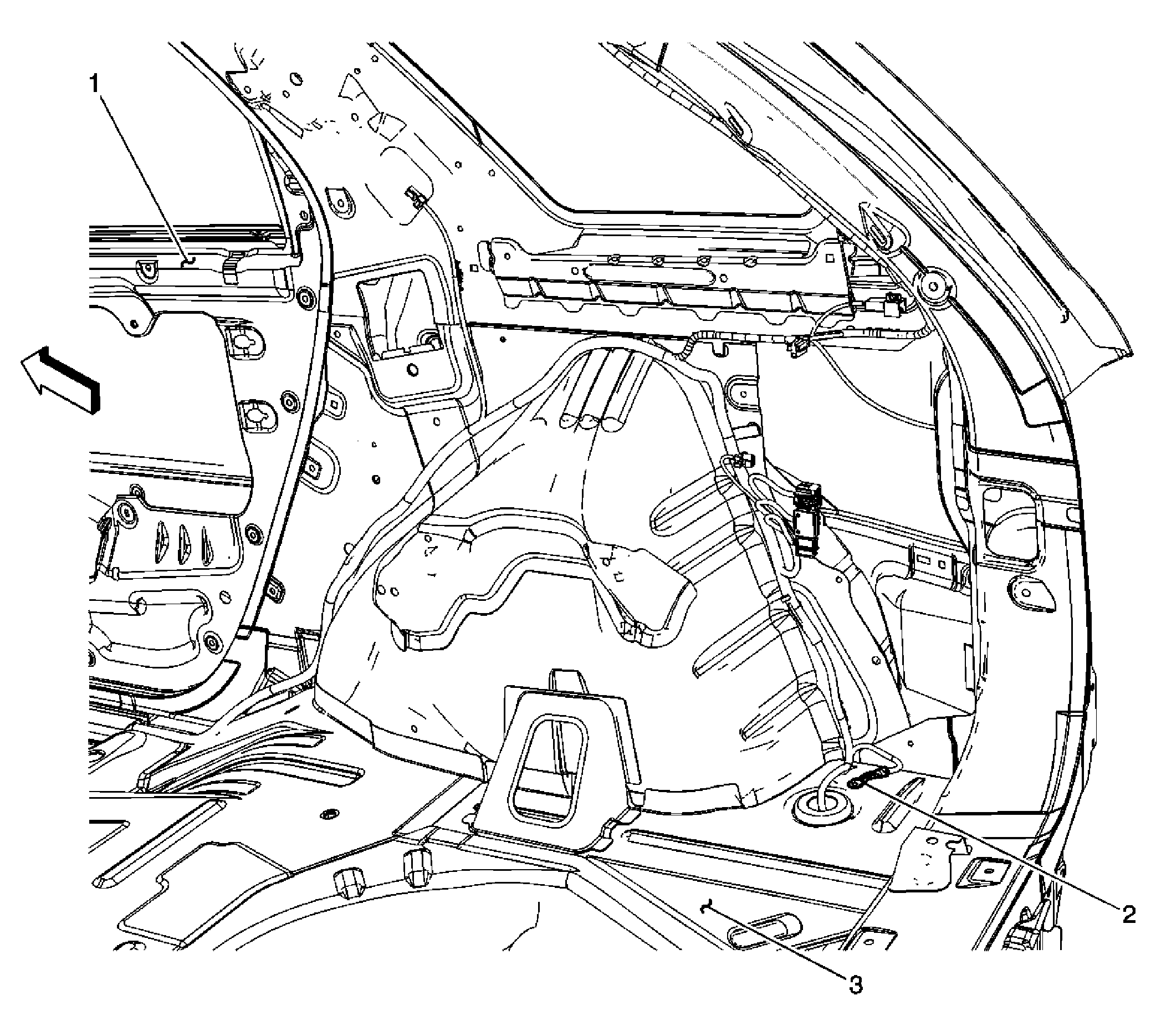

Fig 11: G403

GM1825851

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RR Door Frame
2	G403
3	Rear Floor Panel

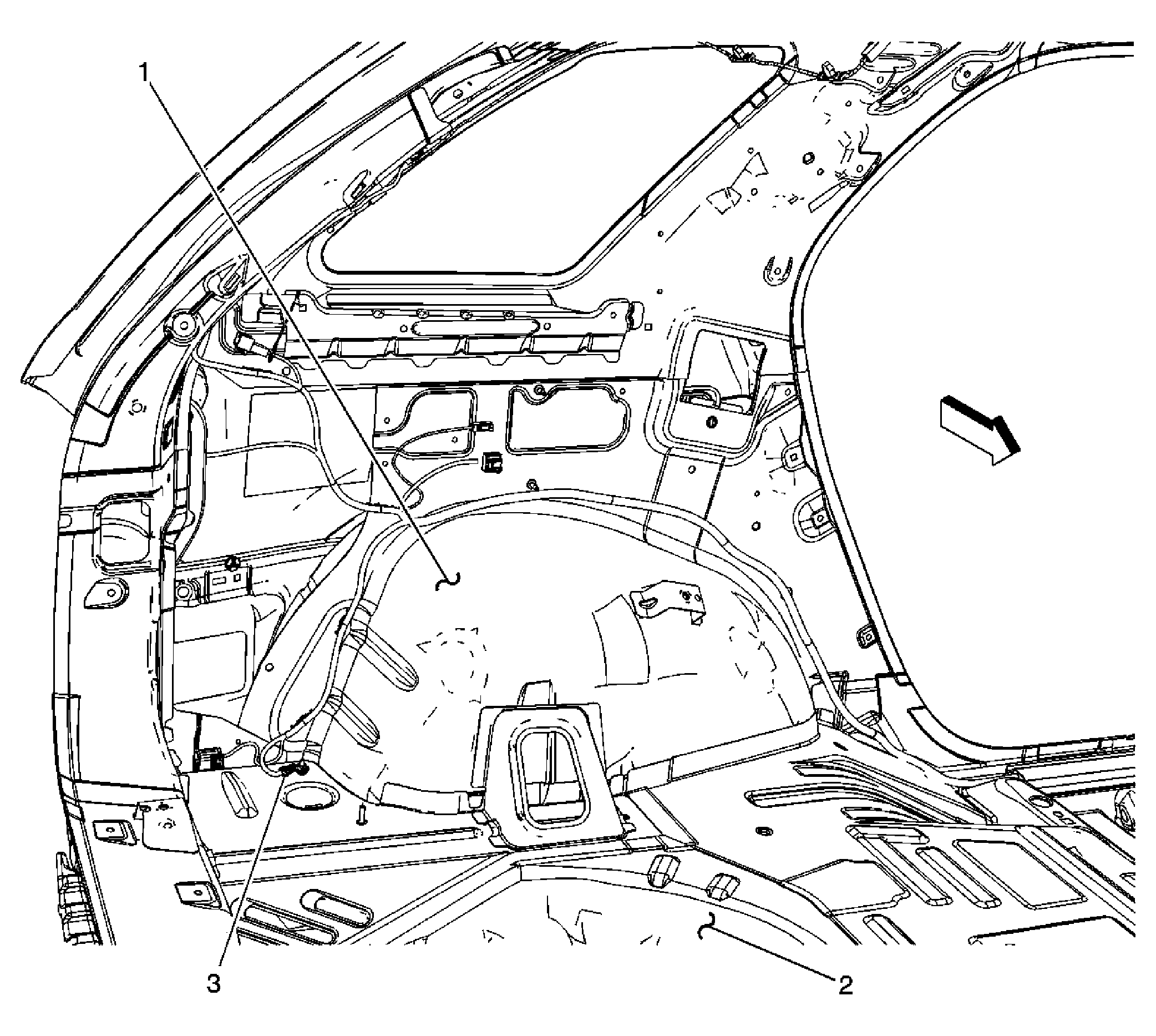

Fig 12: G401

GM1825850

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LR Wheel Panel
2	Rear Floor Panel
3	G401
