Engine Controls Component Views

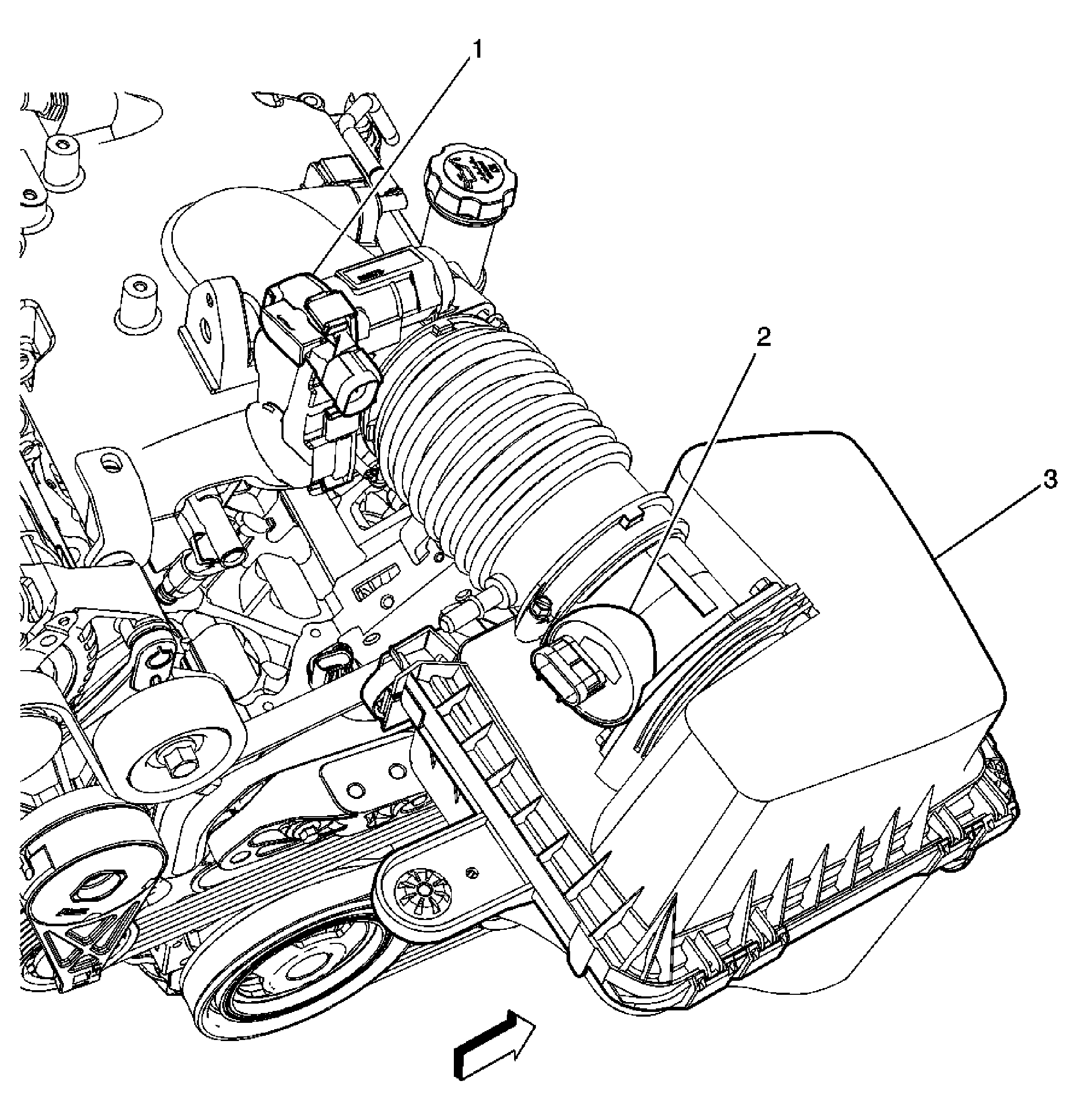

| Callout | Component Name |
|---|---|
| 1 | Throttle Actuator Control (TAC) Module |
| 2 | Mass Air Flow (MAF)/Intake Air Temperatur (IAT) Sensor |
| 3 | Air Cleaner Box |

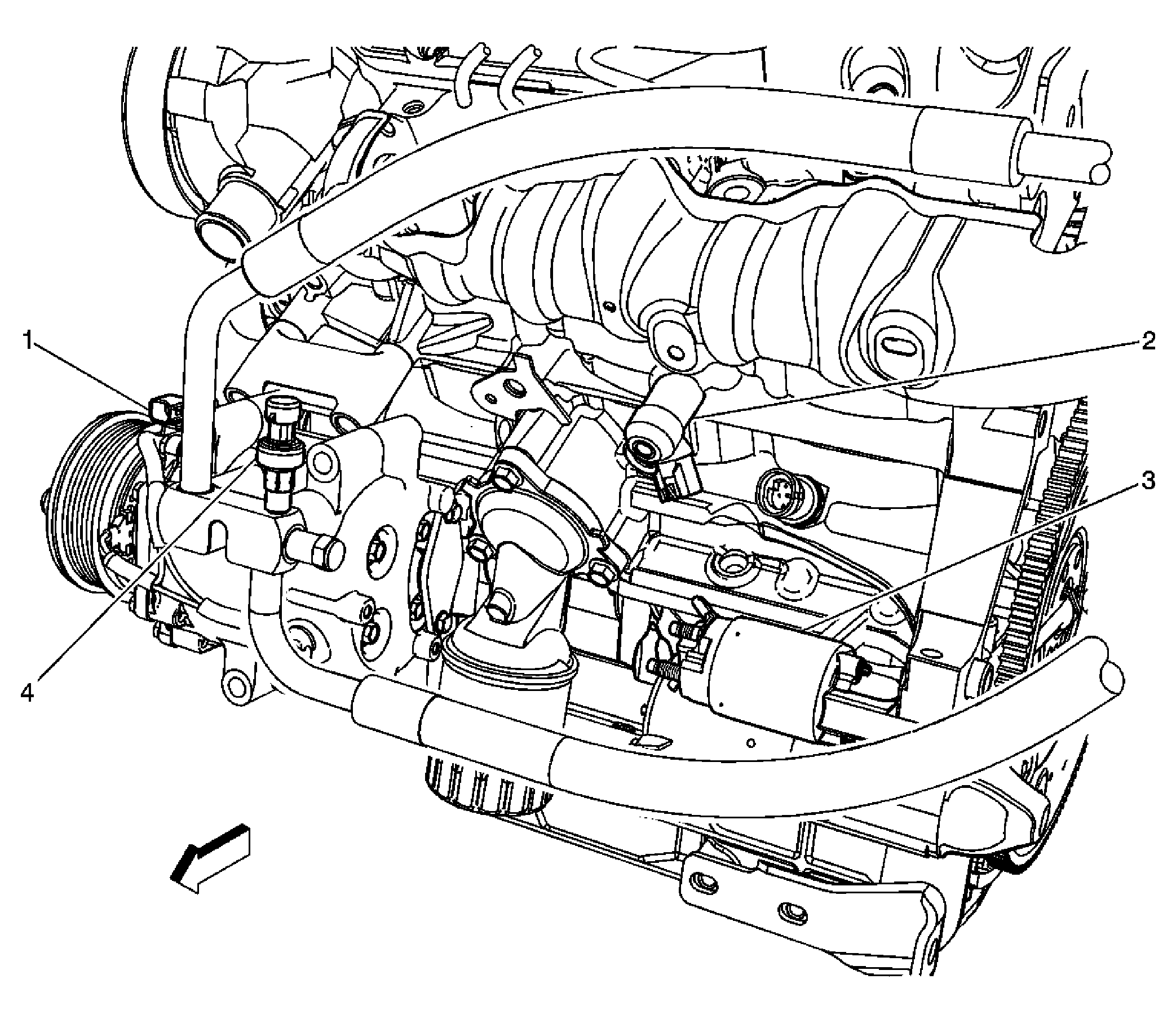

| Callout | Component Name |
|---|---|
| 1 | A/C Compressor Clutch |
| 2 | Knock Sensor (KS) 2 |
| 3 | Starter |
| 4 | A/C Refrigerant Pressure Sensor |

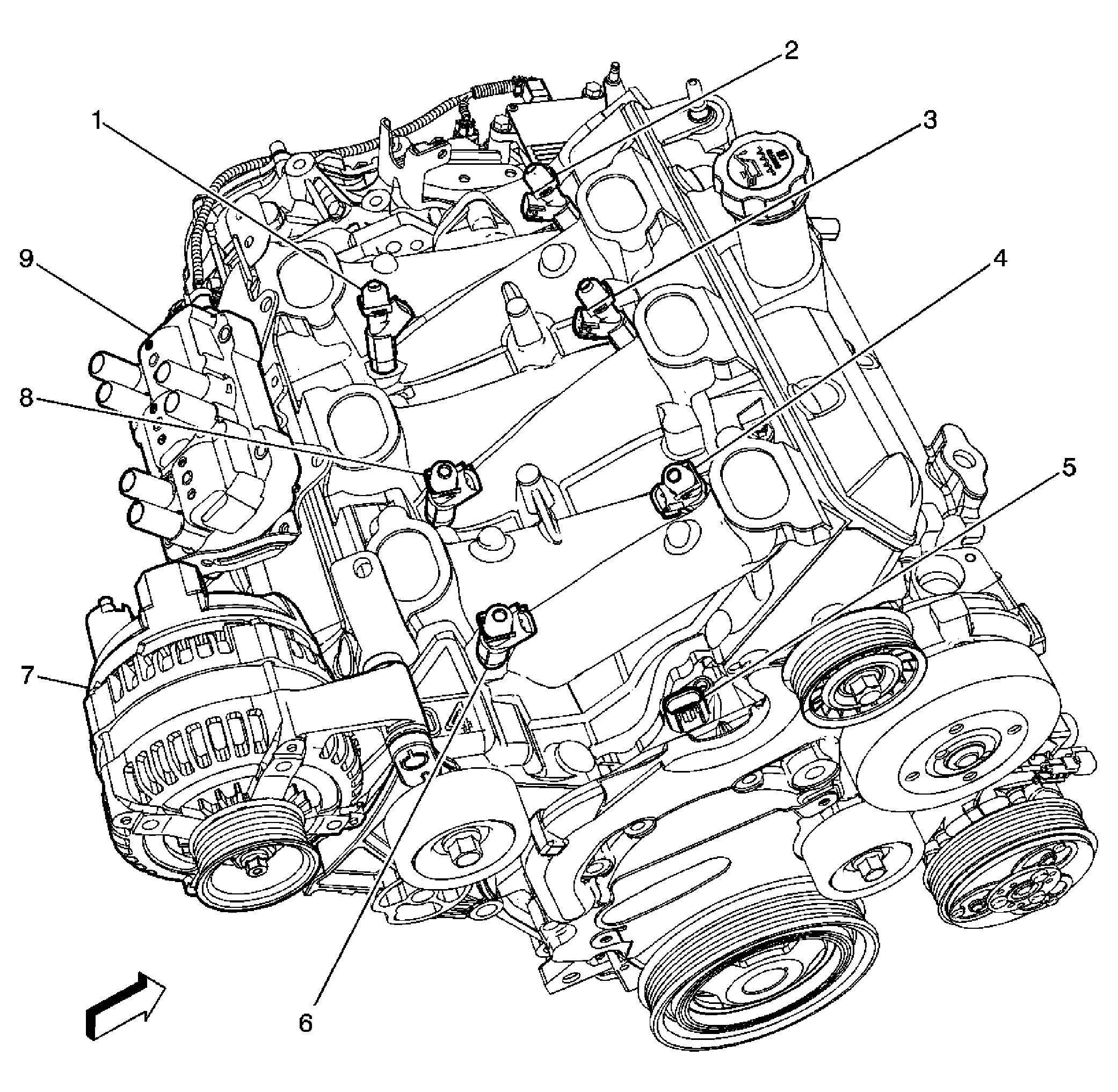

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 5 |
| 2 | Fuel Injector 6 |
| 3 | Fuel Injector 4 |
| 4 | Fuel Injector 2 |
| 5 | Camshaft Position Sensor (CMP) |
| 6 | Fuel Injector 1 |
| 7 | Generator |
| 8 | Fuel Injector 3 |
| 9 | Ignition Control Module (ICM) |

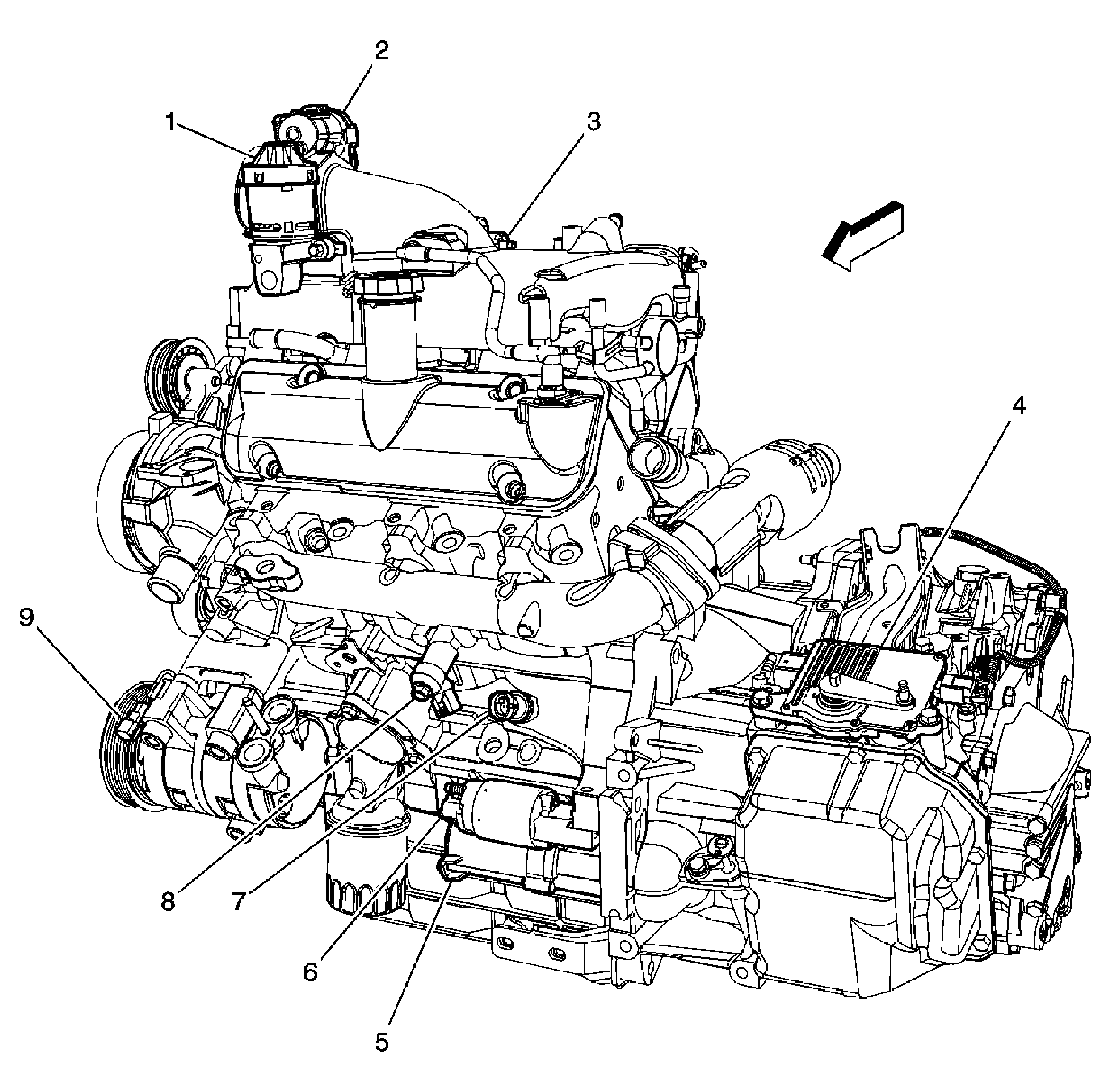

| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation (EGR) Valve |
| 2 | Throttle Actuator Control (TAC) Module |
| 3 | Evaporative Emissions (EVAP) Canister Purge Solenoid |
| 4 | Park/Neutral Position Switch |
| 5 | Starter |
| 6 | Starter Solenoid |
| 7 | Engine Oil Pressure (EOP) Switch |
| 8 | Knock Sensor (KS) 2 |
| 9 | A/C Compressor Clutch |

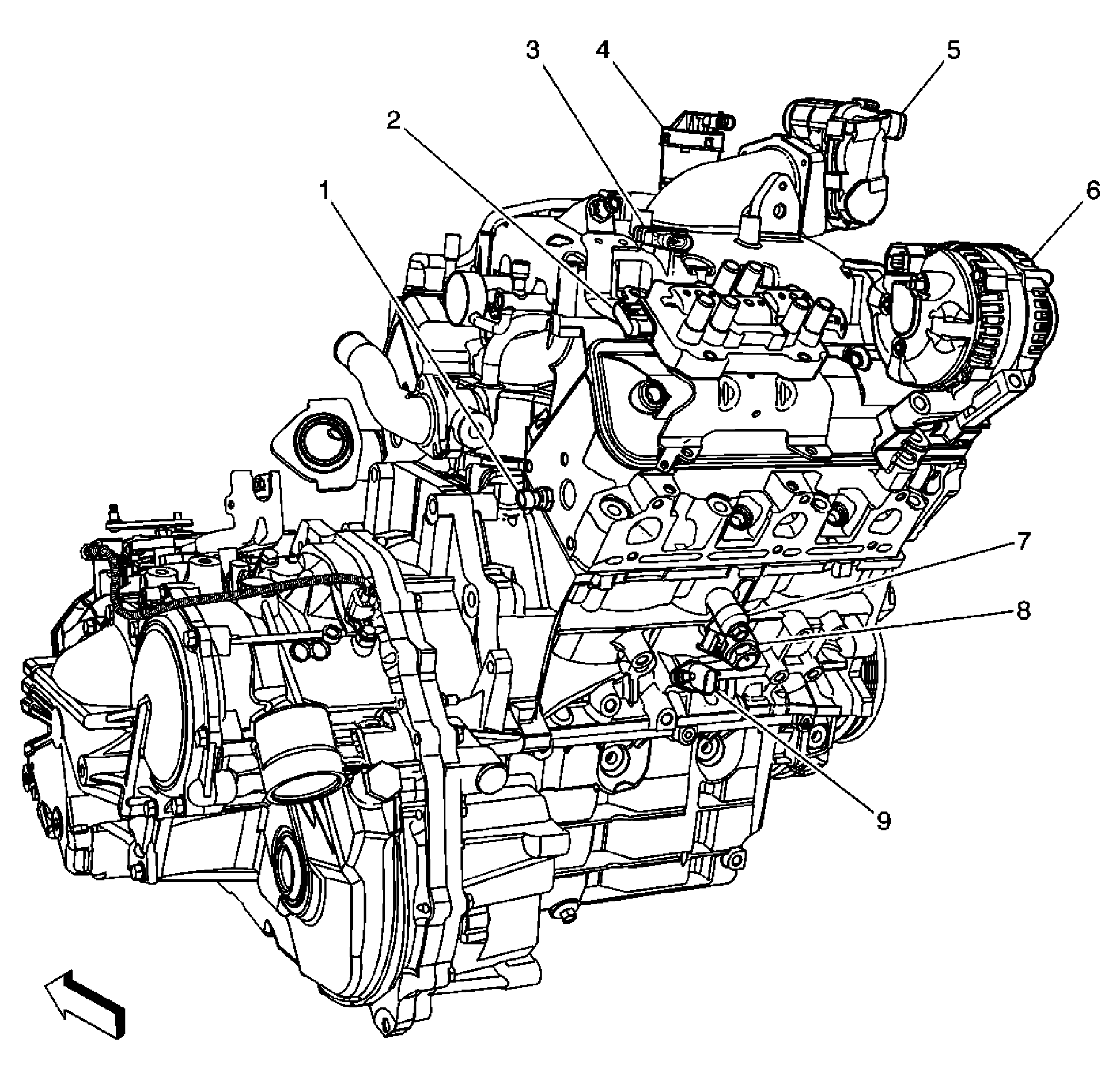

| Callout | Component Name |
|---|---|
| 1 | Engine Coolant Temperature (ECT) Sensor |
| 2 | Ignition Control Module (ICM) |
| 3 | Manifold Absolute Pressure (MAP) Sensor |
| 4 | Exhaust Gas Recirculation (EGR) Valve |
| 5 | Throttle Actuator Control (TAC) Module |
| 6 | Generator |
| 7 | Knock Sensor (KS) 1 |
| 8 | Engine Coolant Heater |
| 9 | Crankshaft Position (CKP) Sensor |

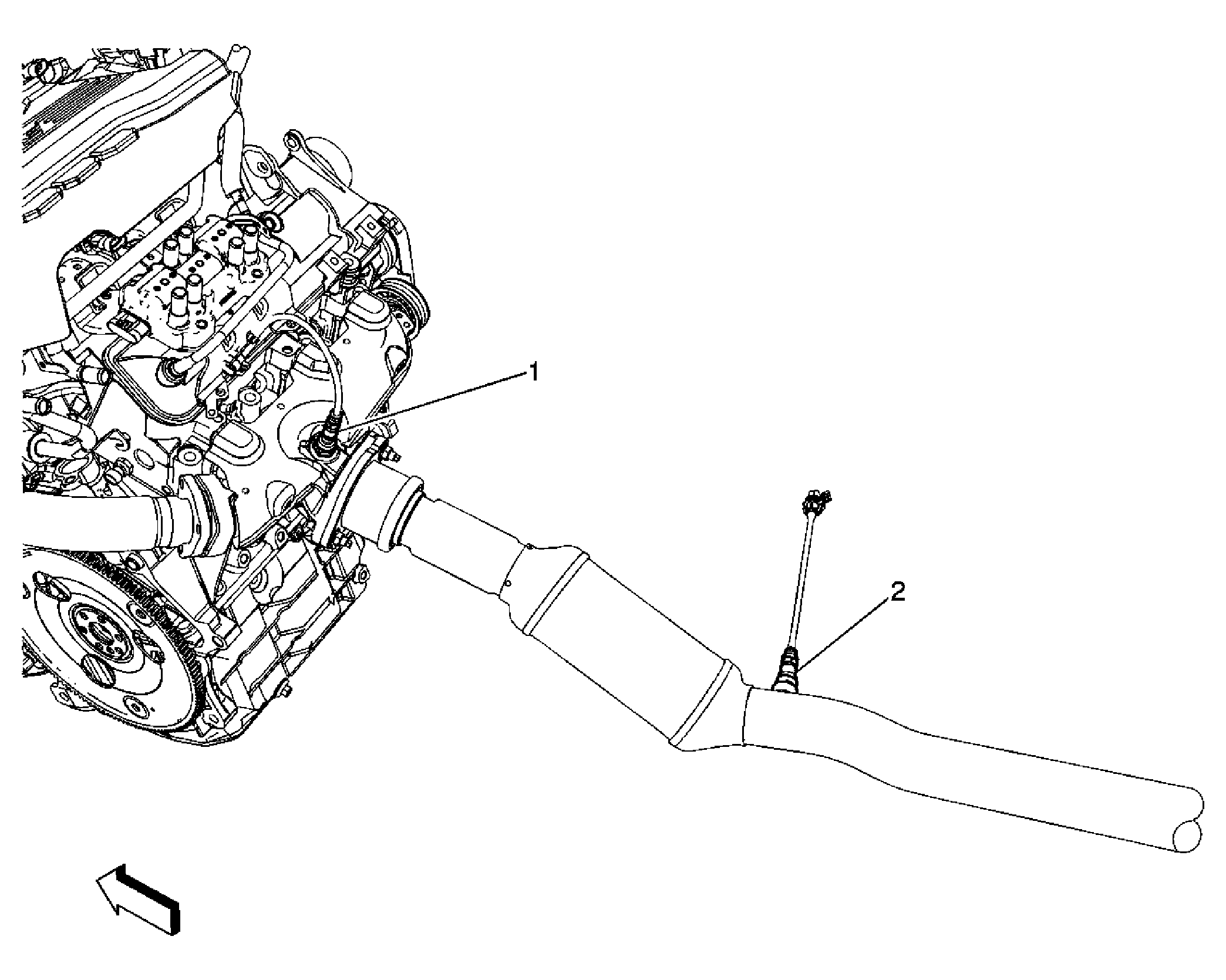

| Callout | Component Name |
|---|---|
| 1 | Heated Oxygen Sensor (HO2S) 1 |
| 2 | Heated Oxygen Sensor (HO2S) 2 |

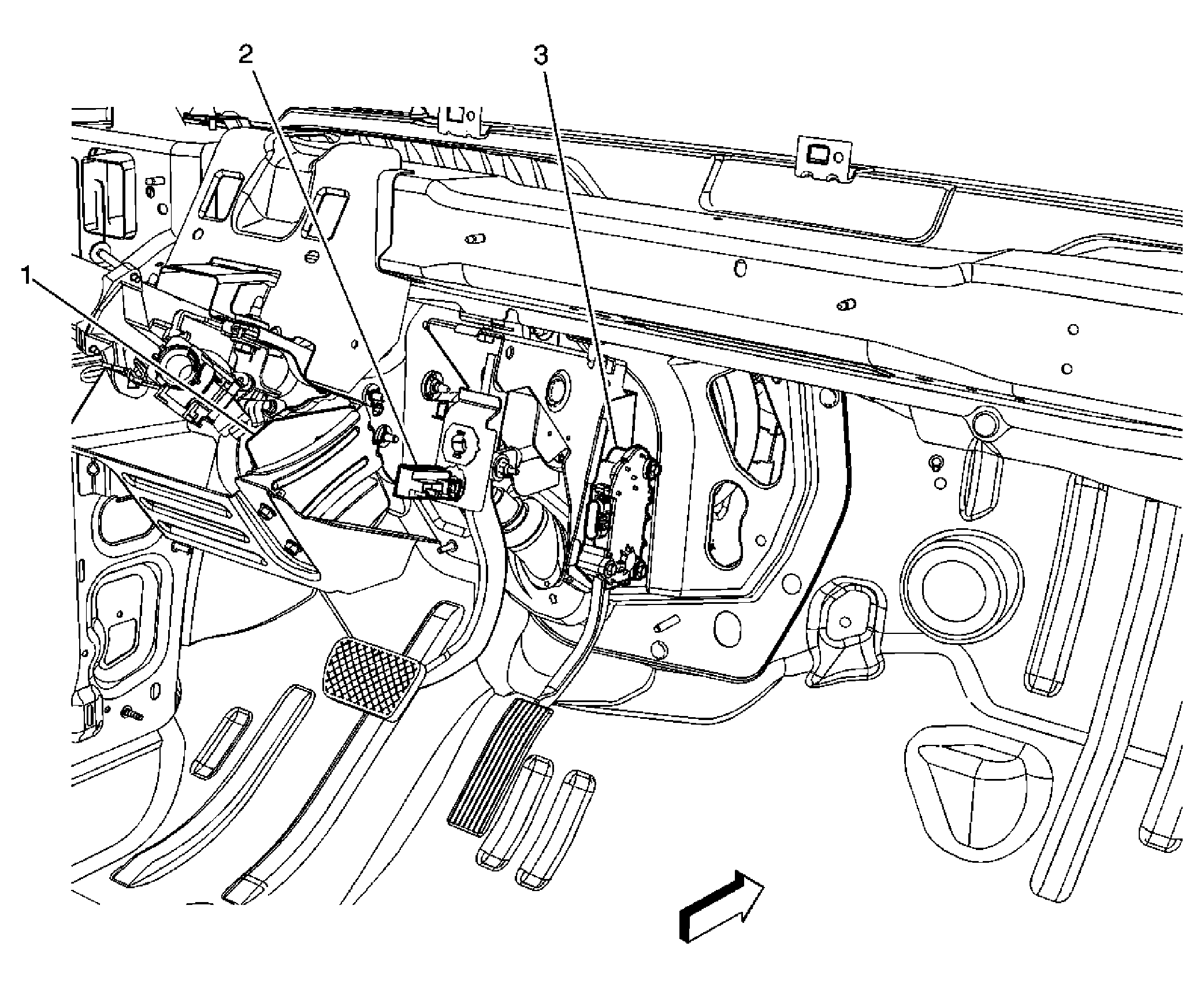

| Callout | Component Name |
|---|---|
| 1 | Electric Power Steering (EPS) Module |
| 2 | Brake Pedal Position Sensor |
| 3 | Accelerator Pedal Position (APP) Sensor |

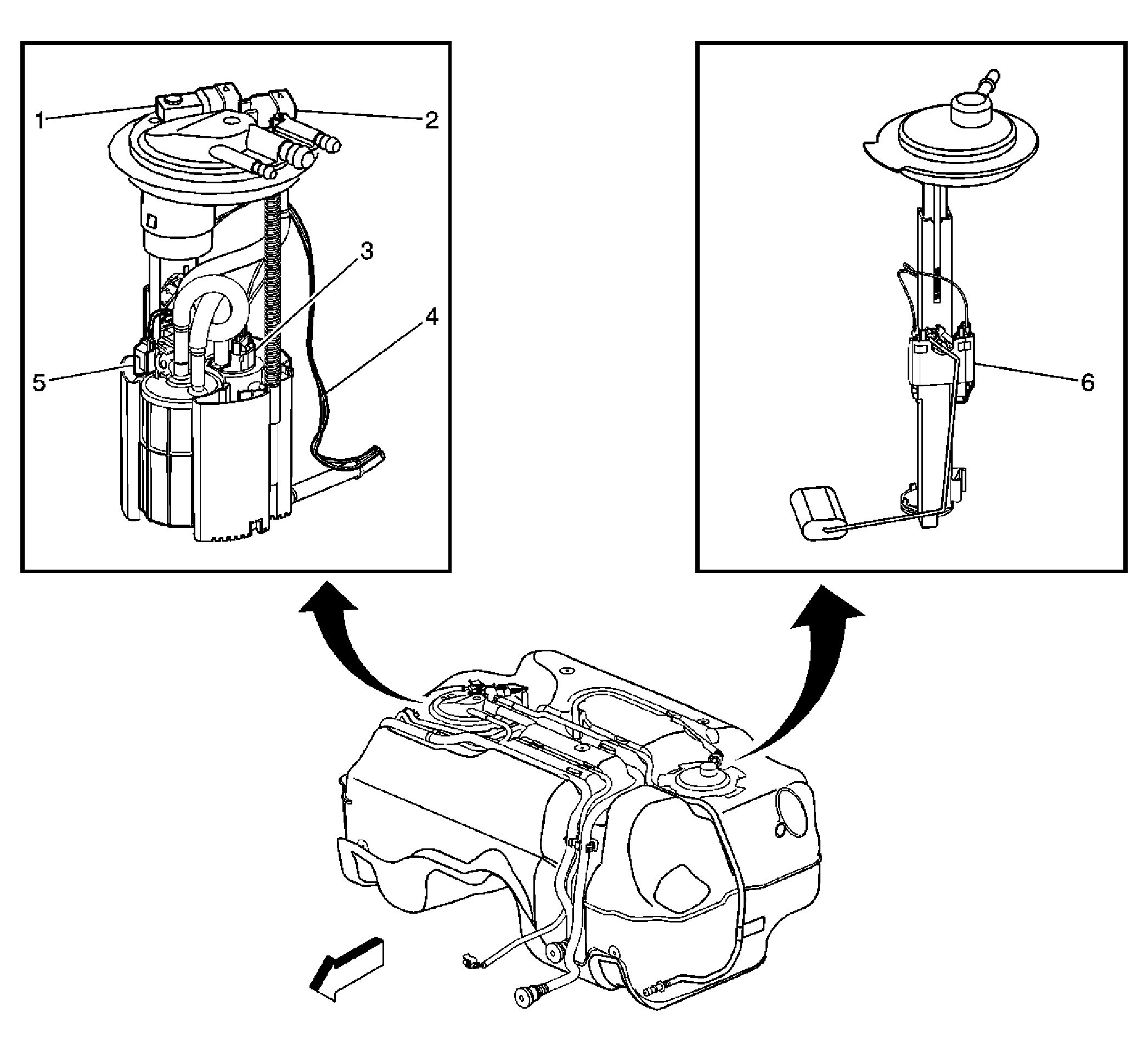

| Callout | Component Name |
|---|---|
| 1 | Fuel Tank Pressure (FTP) Sensor Connector |
| 2 | Fuel Pump and Sender Assembly Connector - Primary |
| 3 | Fuel Pump |
| 4 | Lead - Primary Sender to Secondary Sender Assembly |
| 5 | Fuel Level Sensor |
| 6 | Fuel Pump and Sender Assembly Connector - Secondary |
