Engine Electrical Component Views

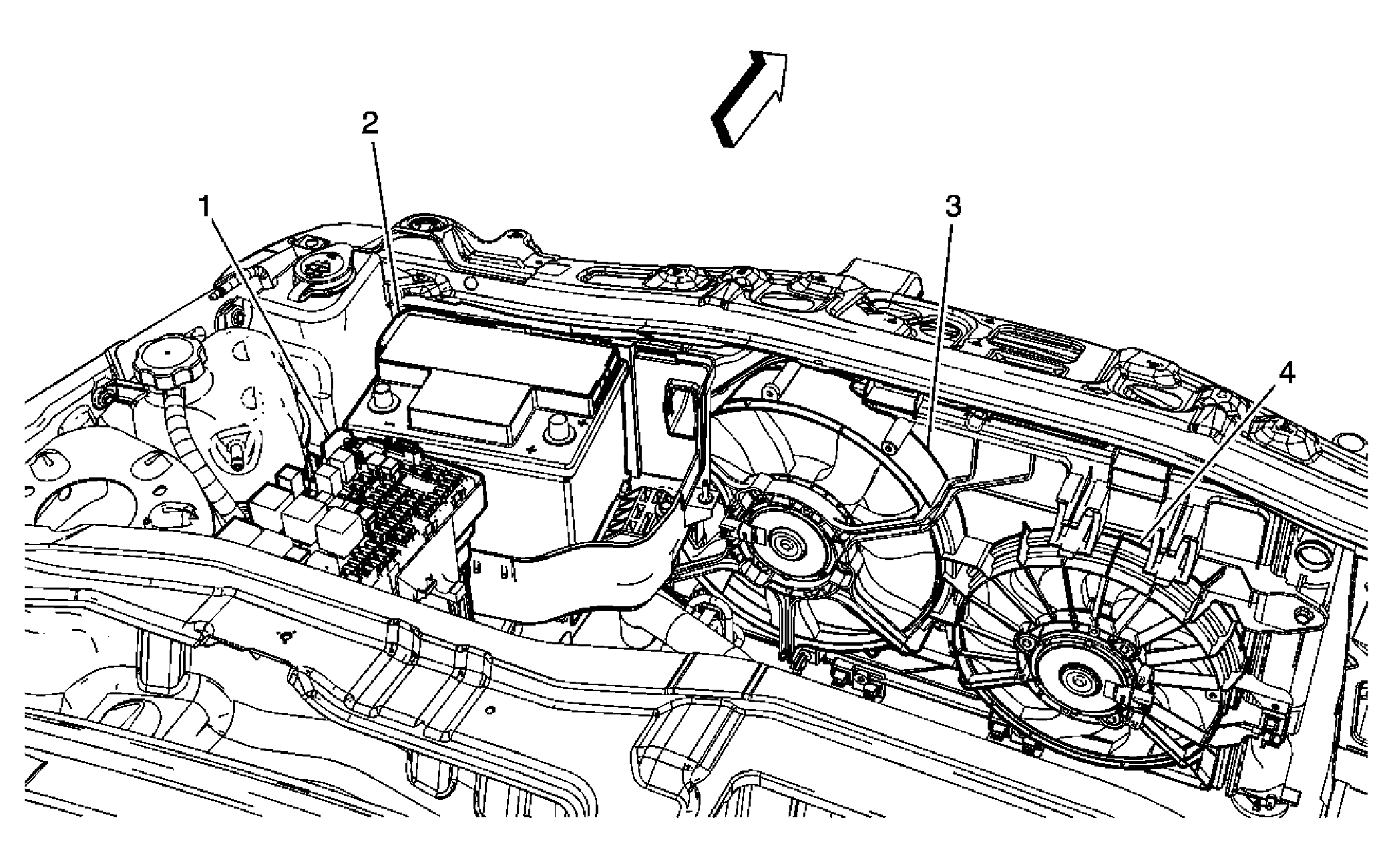

| Callout | Component Name |
|---|---|
| 1 | Fuse Block - Underhood |
| 2 | Battery |
| 3 | Cooling Fan - Left |
| 4 | Cooling Fan - Right |
| Callout | Component Name |
|---|---|
| 1 | LF Strut Tower |
| 2 | G103 |
| 3 | Windshield Washer Fluid Pump |
| 4 | Battery Current Sensor |
| Callout | Component Name |
|---|---|
| 1 | Fuel Injector 5 |
| 2 | Fuel Injector 6 |
| 3 | Fuel Injector 4 |
| 4 | Fuel Injector 2 |
| 5 | Camshaft Position Sensor (CMP) |
| 6 | Fuel Injector 1 |
| 7 | Generator |
| 8 | Fuel Injector 3 |
| 9 | Ignition Control Module (ICM) |
| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation (EGR) Valve |
| 2 | Throttle Actuator Control (TAC) Module |
| 3 | Evaporative Emissions (EVAP) Canister Purge Solenoid |
| 4 | Park/Neutral Position Switch |
| 5 | Starter |
| 6 | Starter Solenoid |
| 7 | Engine Oil Pressure (EOP) Switch |
| 8 | Knock Sensor (KS) 2 |
| 9 | A/C Compressor Clutch |
