Wiper/Washer Component Views

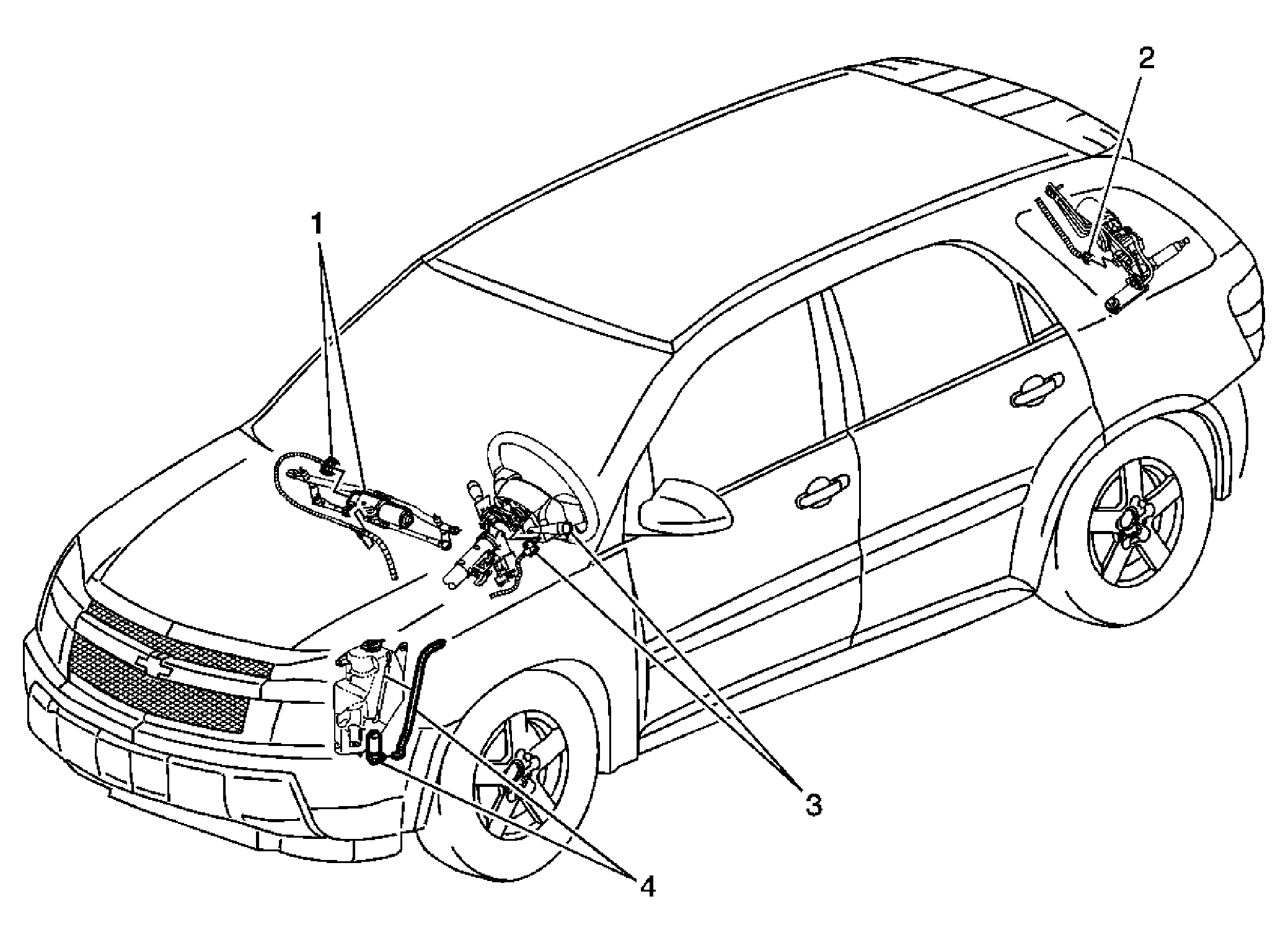

Fig 1: View Of Wiper/Washer System Components

GM1470243

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper/Washer Motor
2	Wiper Motor - Rear
3	Windshield Wiper/Washer Switch
4	Windshield Washer Fluid Pump

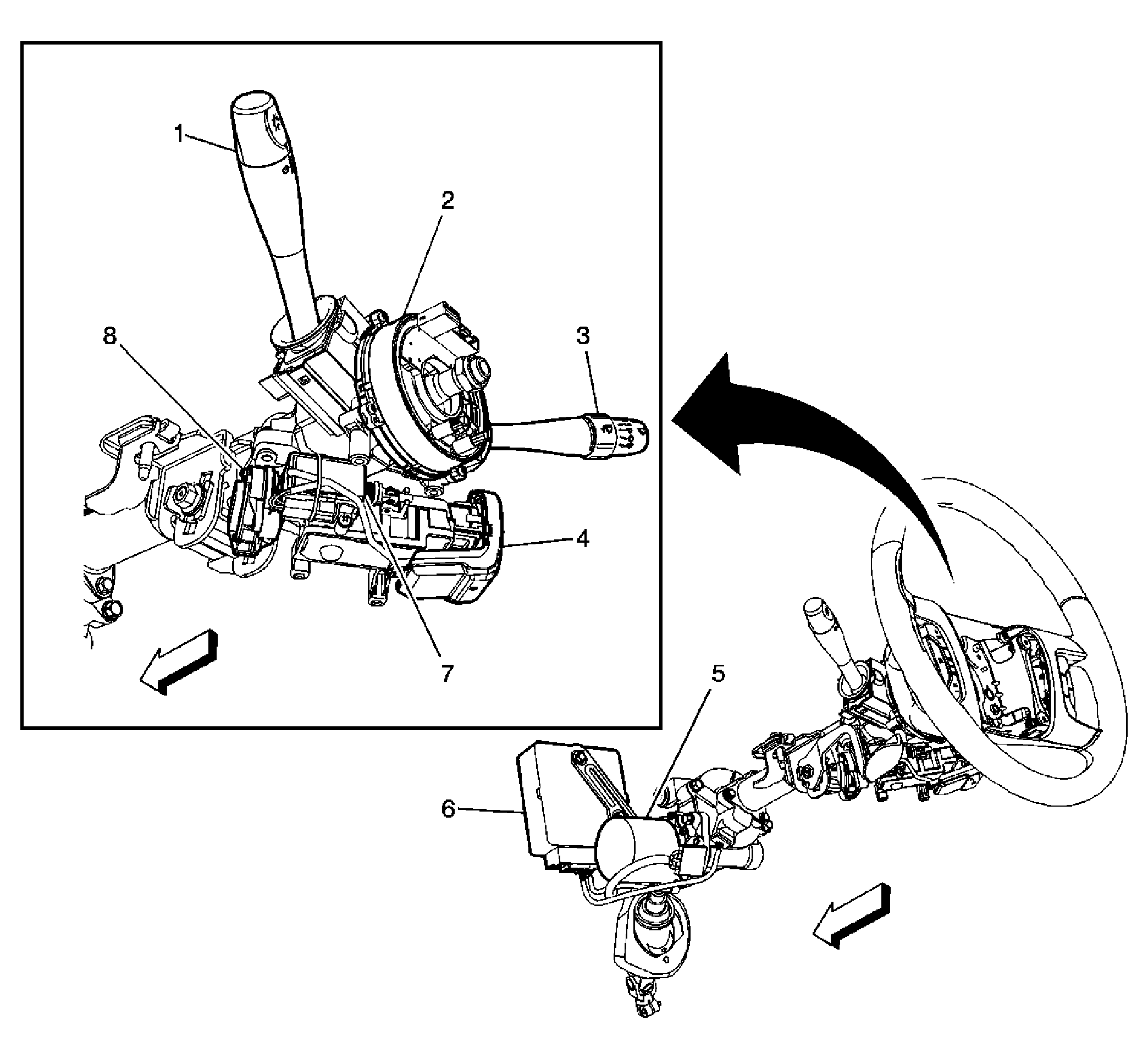

Fig 2: View Of Steering Column Components

GM1825916

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Theft Deterrent Module
5	Power Steering Motor
6	Power Steering Control Module (PSCM)
7	Ignition Key Cylinder Lock Solenoid
8	Ignition Switch

Fig 3: View Of Instrument Panel

GM1825883

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Switch
5	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6	Rear Wiper/Washer Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switches
10	Power Window Switch - Main
11	Traction Control Switch
12	Dimmer Switch
13	Outside Rear View Mirror Switch
