Secondary/Configurable Control Component Views

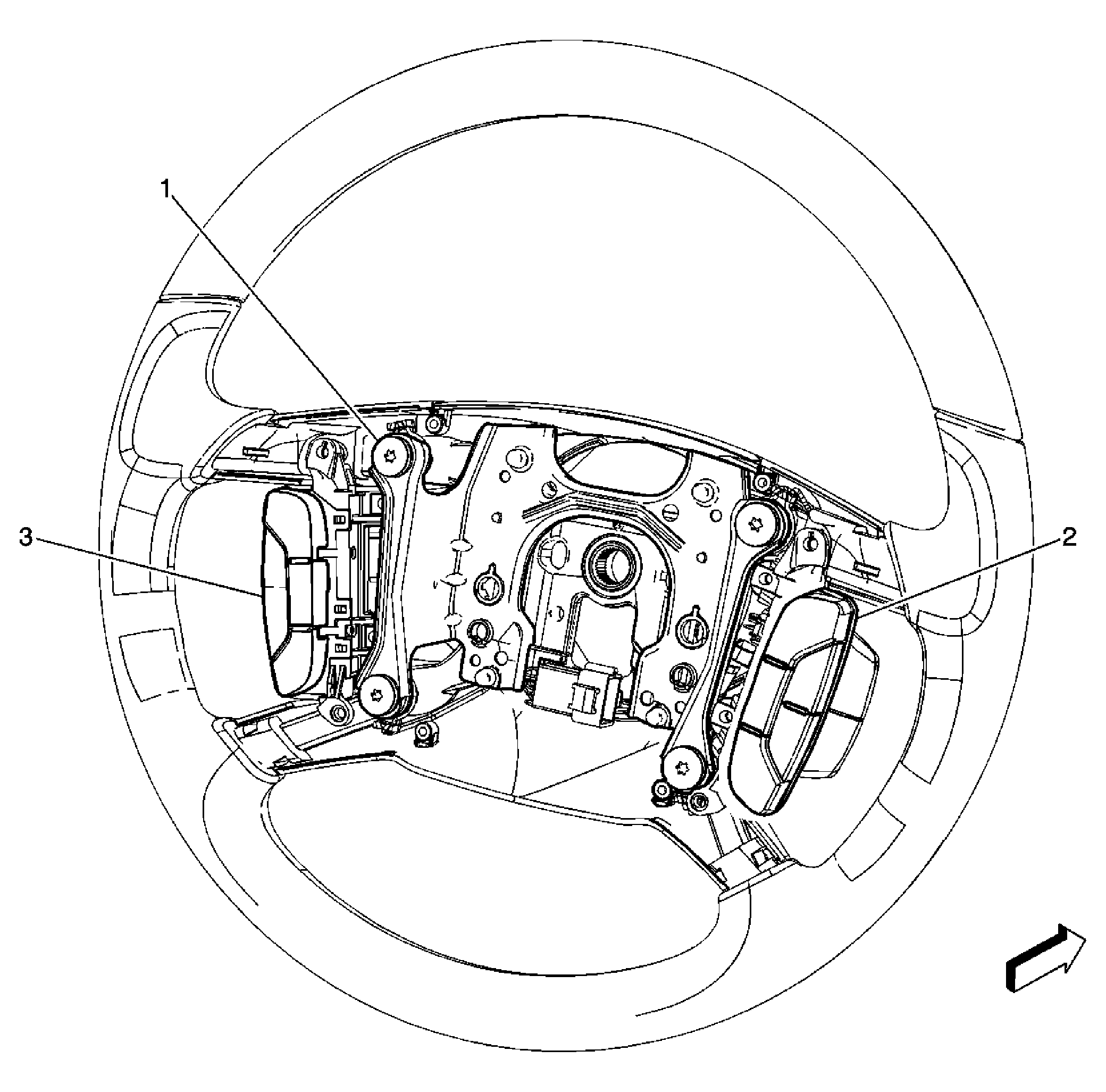

Fig 1: View Of Steering Wheel Components
GM1825870Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch
2 Steering Wheel Controls - Right
3 Steering Wheel Controls - Left
