Vehicle Communication Interface Module (VCIM) Battery (UE1)

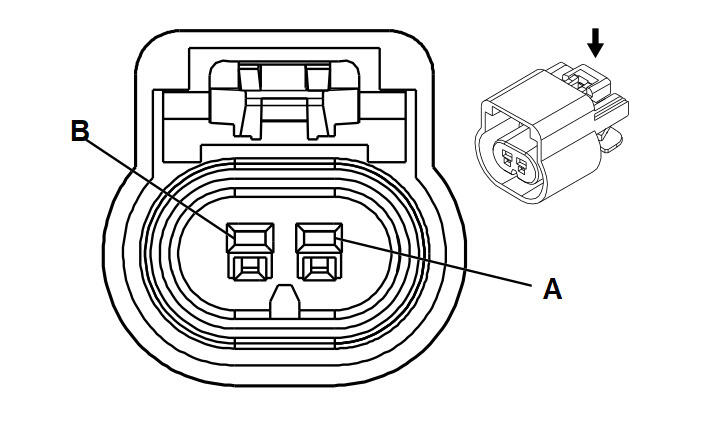

Fig 1: Vehicle Communication Interface Module (VCIM) Battery (UE1) Connector End View
GM523630Courtesy of GENERAL MOTORS CORP.
Vehicle Communication Interface Module (VCIM) Battery (UE1) Connector Parts Information

Connector Part Information
  • OEM: 15326801
  • Service: 15306156
  • Description: 2-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Video Display (UCC) Connector Terminal Identification

Pin Wire Color Circuit No. Function
A RD/WH 5235 Battery Backup Supply Voltage
B Y/BK 5167 Battery Backup Low Reference
