Entertainment/Communication Component Views

Fig 1: View Of Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Steering Wheel Controls - Right
3	Steering Wheel Controls - Left

Fig 2: View Of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor
2	Instrument Panel Cluster (IPC)
3	Driver Information Center (DIC) Switch
4	Hazard Switch
5	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6	Rear Wiper/Washer Switch
7	Radio
8	HVAC Control Module
9	Heated Seat Switches
10	Power Window Switch - Main
11	Traction Control Switch
12	Dimmer Switch
13	Outside Rear View Mirror Switch

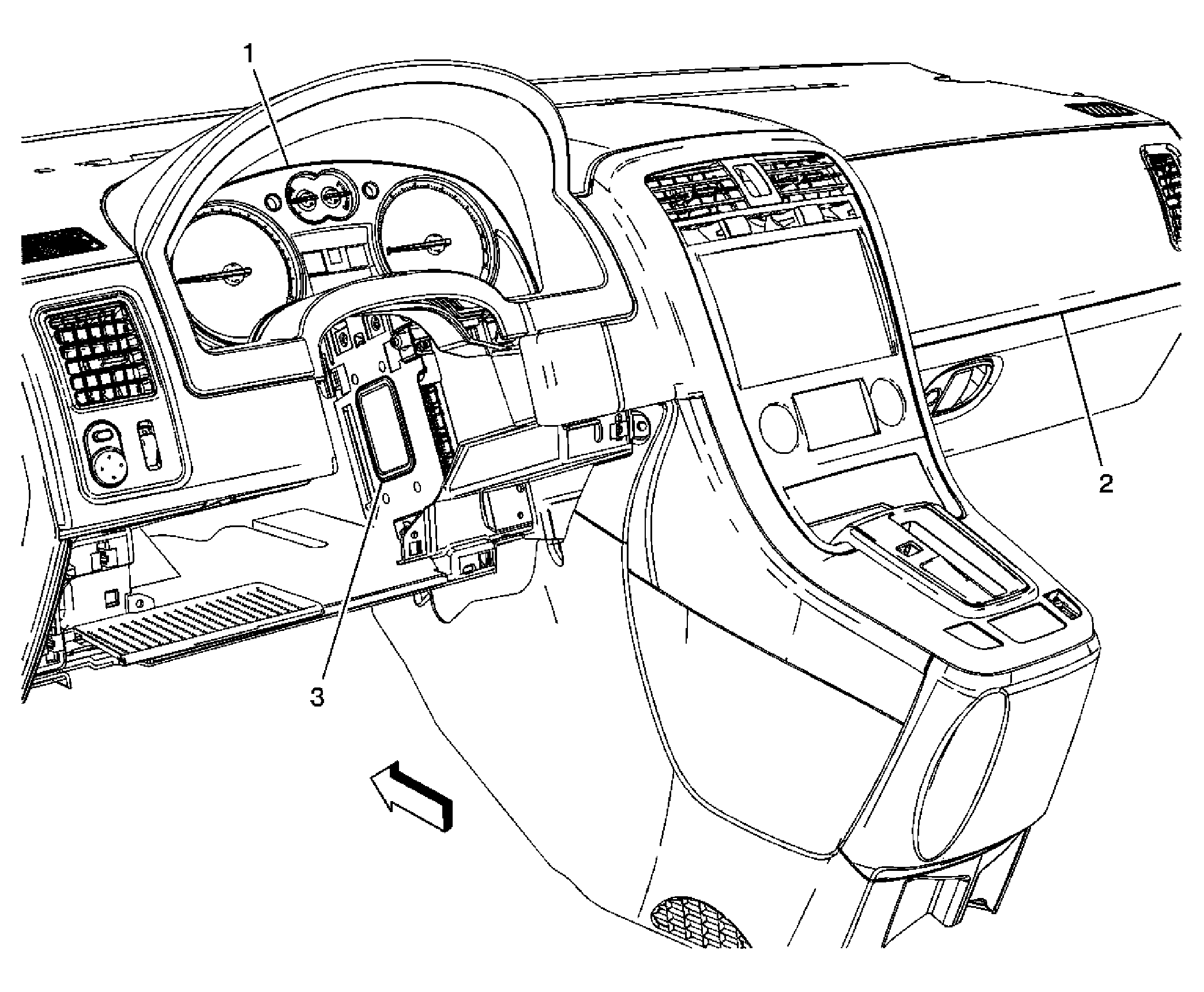

Fig 3: Identifying Components Behind I/P Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel cluster (IPC)
2	I/P Trim
3	Vehicle communication Interface Module (VCIM) (UE1)

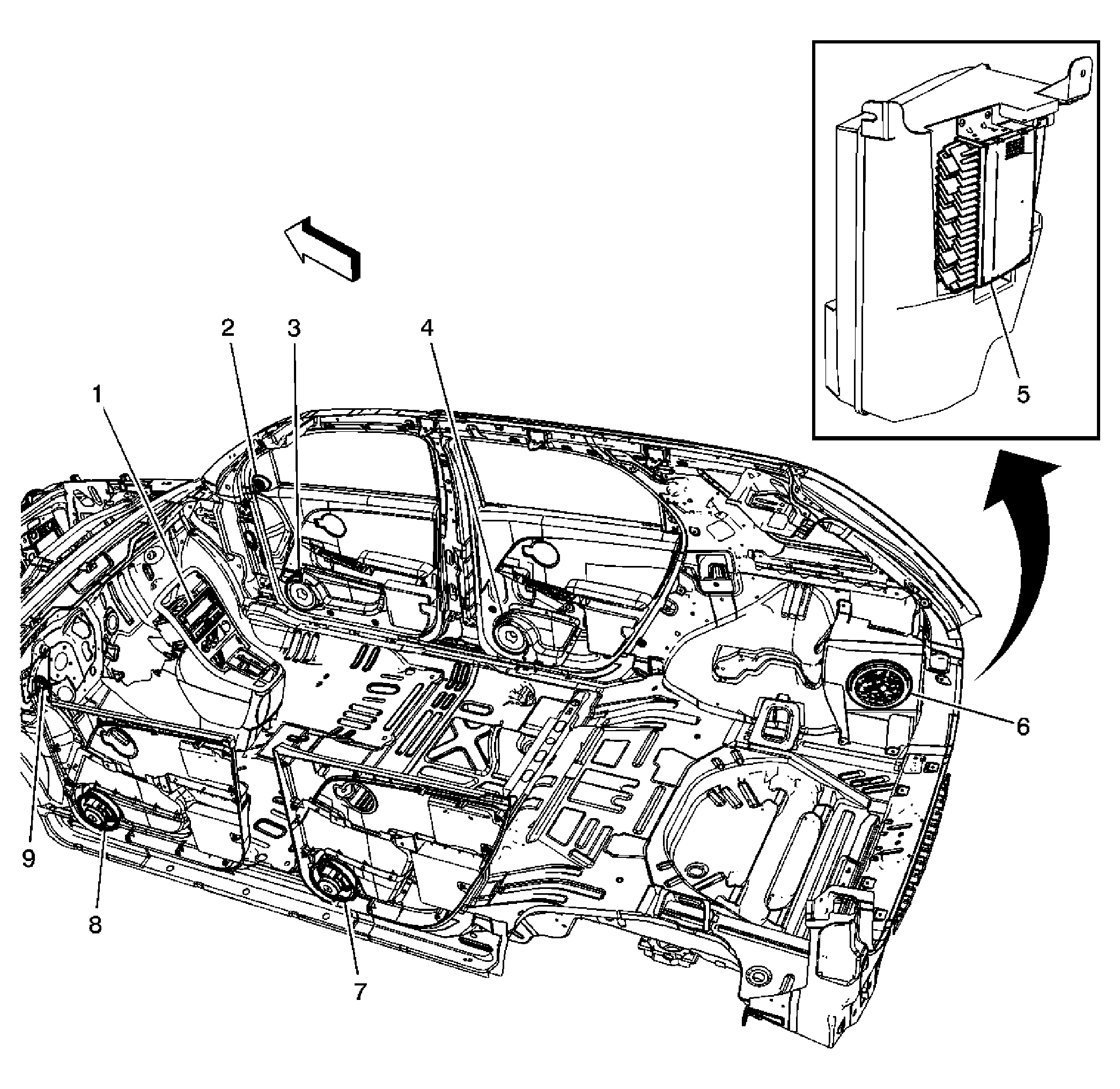

Fig 4: Identifying Audio Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - RF (Tweeter)
3	Speaker - RF
4	Speaker - RR
5	Amplifier (U65)
6	Speaker - Subwoofer (U65)
7	Speaker - LR
8	Speaker - LF
9	Speaker - LF (Tweeter)

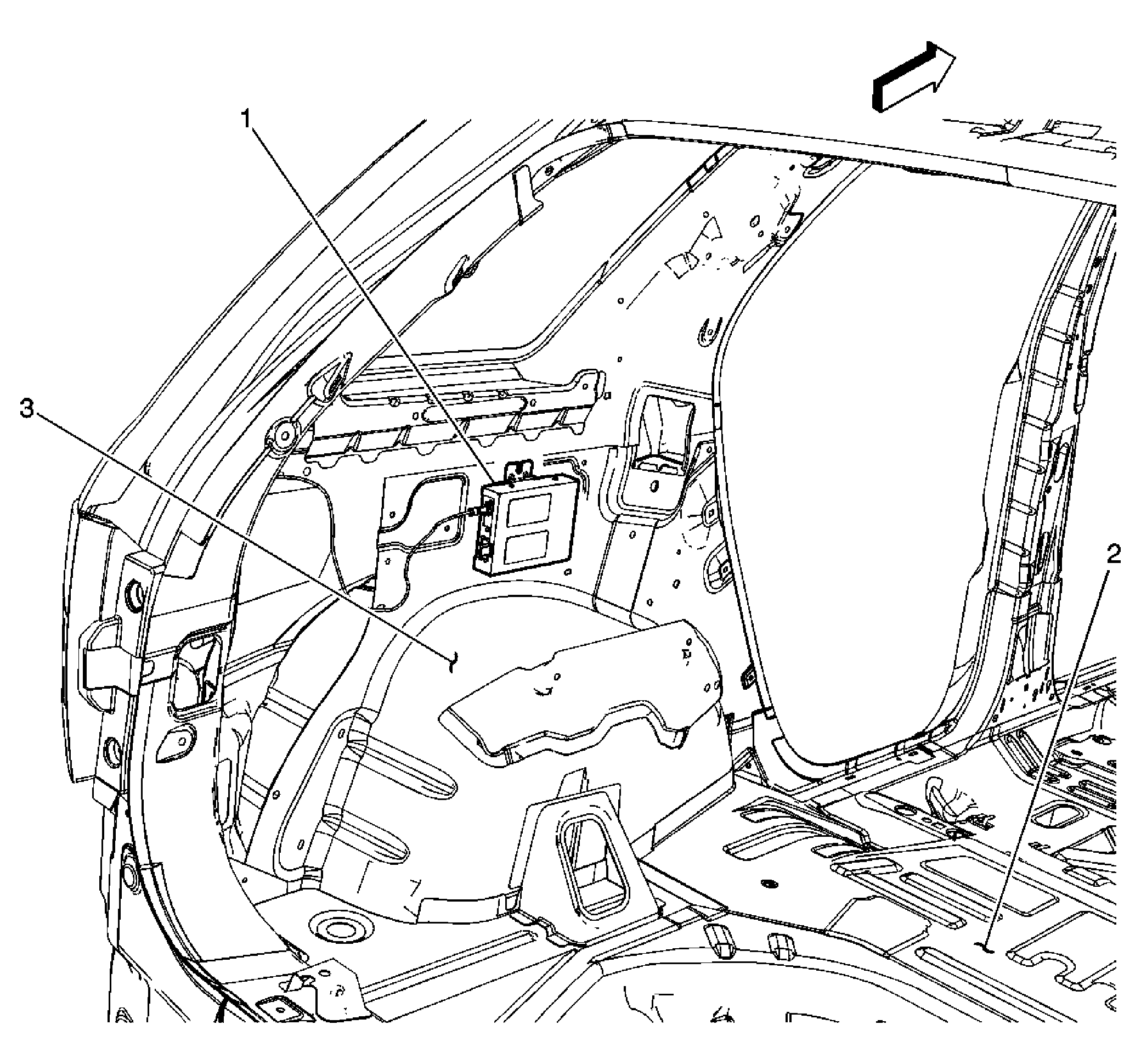

Fig 5: View Below LR Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Rear Floor
3	LR Wheel Panel

Fig 6: Rear of the Roof View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof
2	Cellular and Navigation Antenna (UE1)
