Lighting Systems Component Views

Fig 1: View Of Front Lighting Components (Chevrolet)
GM1826017Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - RF
2 Park Lamp - RF
3 Headlamp - Right
4 Park Lamp - LF
5 Marker Lamp - LF
6 Turn Signal Lamp - LF
7 Fog Lamp - LF
8 Headlamp - Left
9 Fog Lamp - RF
10 Turn Signal Lamp - RF
Fig 2: View Of Front Lighting Components (Pontiac)
GM1826022Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Marker Lamp - RF
2 Headlamp - Right
3 Headlamp - Left
4 Park/Turn Signal Lamp - LF
5 Marker Lamp - LF
6 Fog Lamp - LF
7 Fog Lamp - RF
8 Park/Turn Signal Lamp - RF
Fig 3: View Of Steering Column Components
GM1825916Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Inflatable Restraint Steering Wheel Module Coil
3 Windshield Wiper/Washer Switch
4 Theft Deterrent Module
5 Power Steering Motor
6 Power Steering Control Module (PSCM)
7 Ignition Key Cylinder Lock Solenoid
8 Ignition Switch
Fig 4: View Of Instrument Panel
GM1825883Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ambient Light Sensor
2 Instrument Panel Cluster (IPC)
3 Driver Information Center (DIC) Switch
4 Hazard Switch
5 Inflatable Restraint Passenger Air Bag ON/OFF Indicator
6 Rear Wiper/Washer Switch
7 Radio
8 HVAC Control Module
9 Heated Seat Switches
10 Power Window Switch - Main
11 Traction Control Switch
12 Dimmer Switch
13 Outside Rear View Mirror Switch
Fig 5: View Of Pedal Assemblies
GM1825950Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electric Power Steering (EPS) Module
2 Brake Pedal Position Sensor
3 Accelerator Pedal Position (APP) Sensor
Fig 6: View Of Front Headliner Components
GM1826041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp - Front
2 Cellular Telephone Microphone (UE1)
3 Sunroof Switch (CF5)
4 Courtesy/Map Lamp

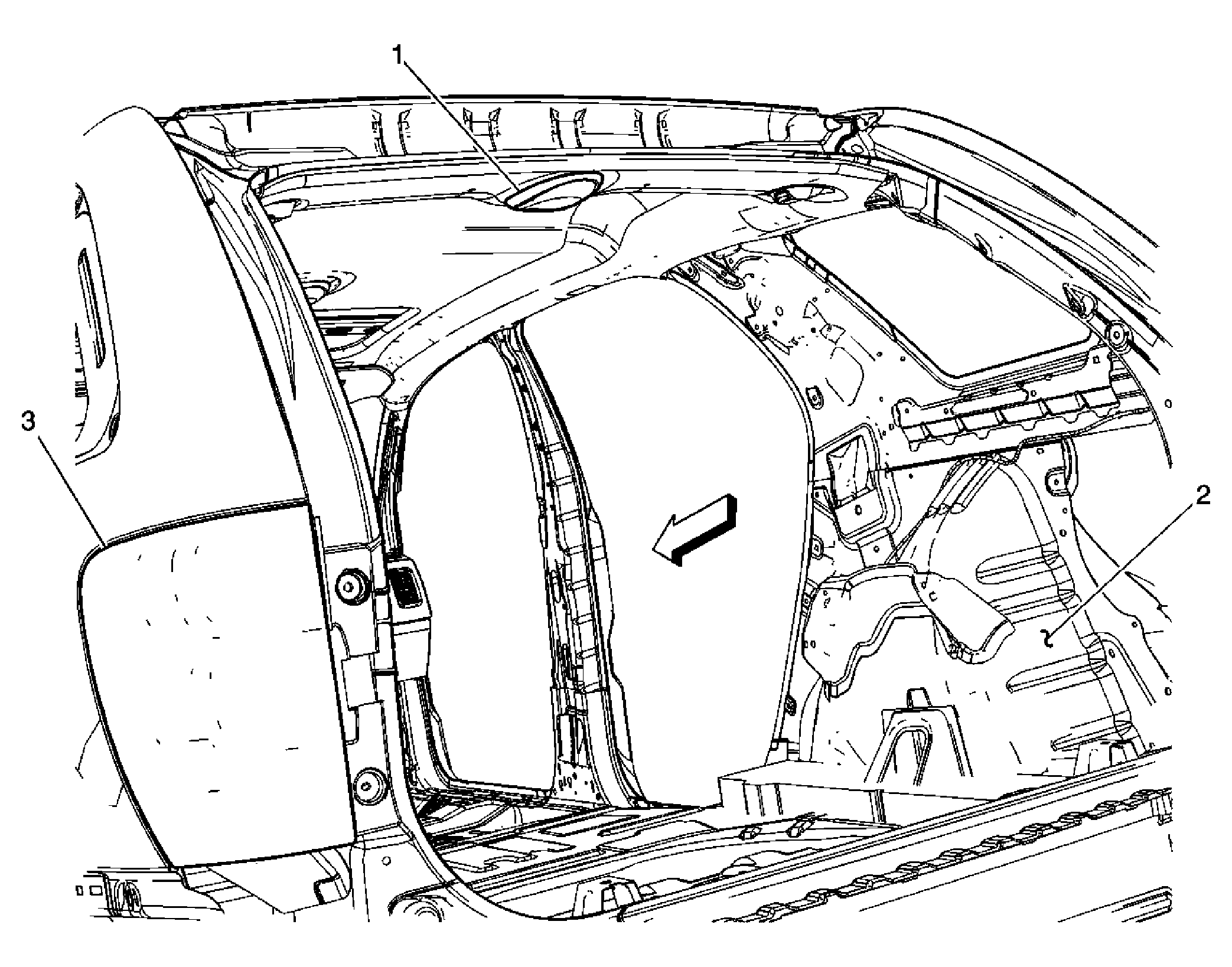

Fig 7: View Of Rear Of Headliner
GM1826037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp - Rear
2 RR Wheel Panel
3 LR Lamp Assembly
Fig 8: View Of Rear Lighting Components (Chevrolet)
GM1826030Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Stop Lamp - Left
2 License Lamp - Left
3 License Lamp - Right
4 Center High Mounted Stop Lamp (CHMSL)
5 Park/Stop Lamp - Right
6 Park/Turn Signal Lamp - Right
7 Marker Lamp - RR
8 Backup Lamp - Right
9 Backup Lamp - Left
10 Marker Lamp - LR
11 Park/Turn Signal Lamp - Left
Fig 9: View Of Rear Lighting Components (Pontiac)
GM1826026Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Stop Lamp - Left
2 Center High Mounted Stop Lamp (CHMSL)
3 License Lamp - Left
4 Park/Stop Lamp - Right
5 Park/Turn Signal Lamp - Right
6 Marker Lamp - RR
7 Backup Lamp - Right
8 License Lamp - Right
9 Backup Lamp - Left
10 Marker Lamp - LR
11 Park/Turn Signal Lamp - Left
