Infrared Transmitter Module (UUC)
Infrared Transmitter Module (UUC) Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

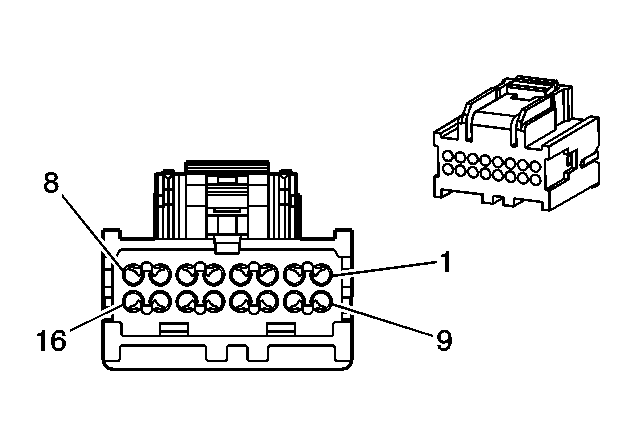

Infrared Transmitter Module (UUC) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | L-BU | 5826 | Left DVD Audio Signal (+) |
| 2 | PU | 6979 | DVD Audio Common |
| 3 | WH | 5828 | Right DVD Audio Signal (+) |
| 4 | YE | 343 | Accessory Voltage |
| 5-7 | - | - | Not Used |
| 8 | OG/BK | 5831 | Remote Infra Red Signal (+) |
| 9-11 | - | - | Not Used |
| 12 | BK/WH | 1551 | Ground |
| 13-15 | - | - | Not Used |
| 16 | TN/WH | 5830 | Remote Infra Red Signal (-) |
