Data Communication Component Views

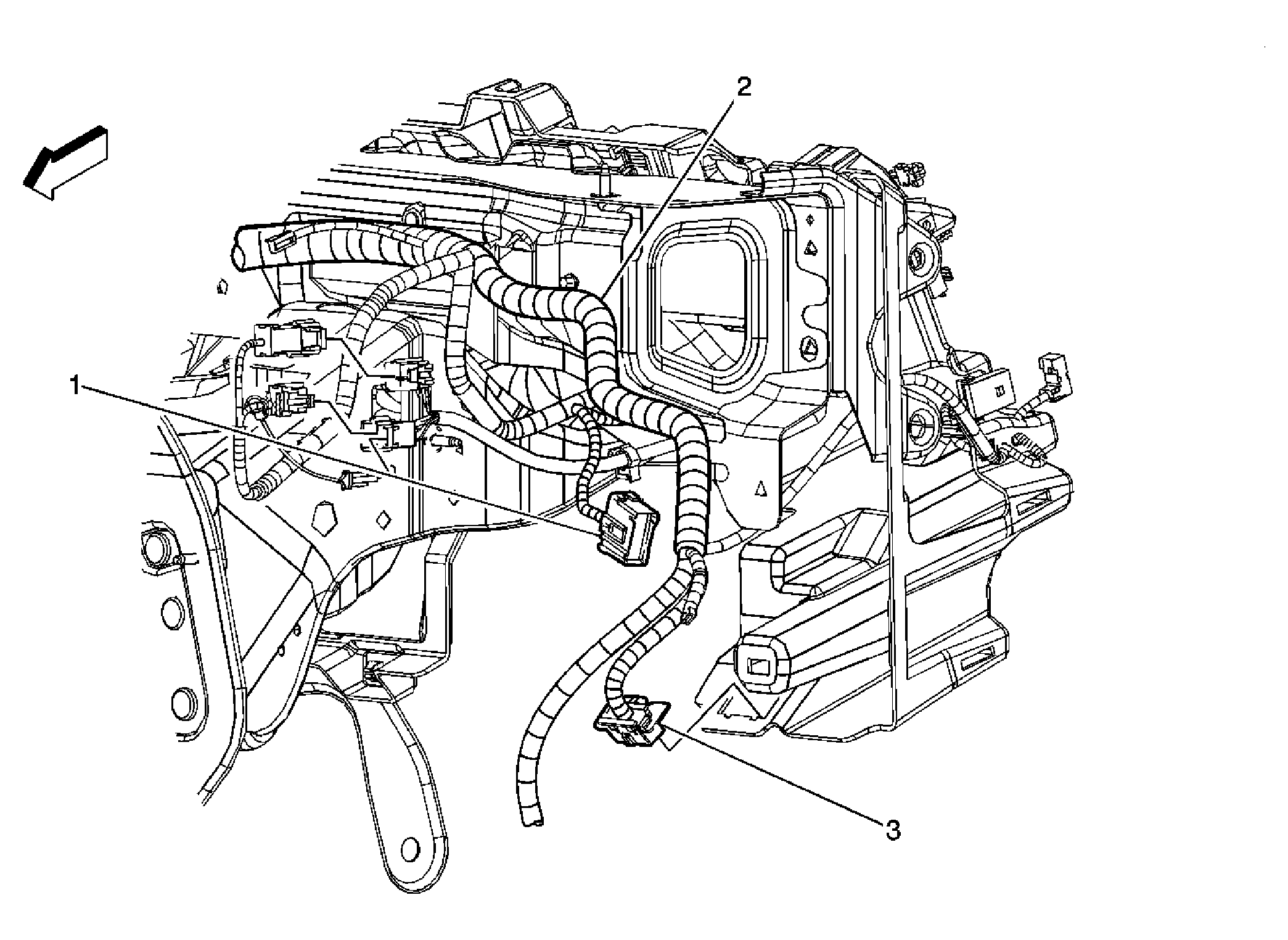

Fig 1: View Behind Left Side Of I/P
GM1628999Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack SP200
2 I/P Harness
3 Data Link Connector (DLC)

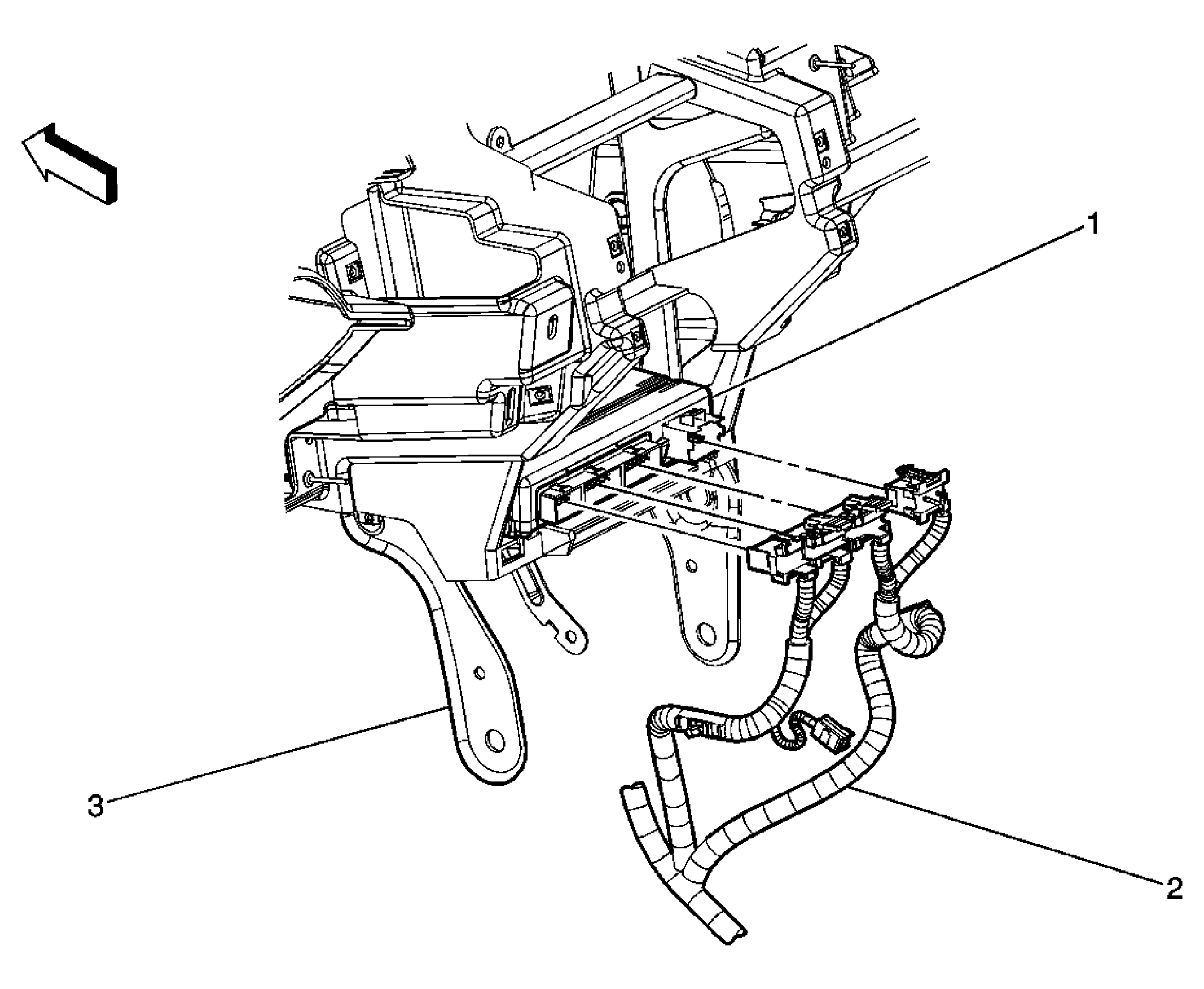

Fig 2: View Of Center Of I/P
GM1454882Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 I/P Harness
3 Center I/P Support

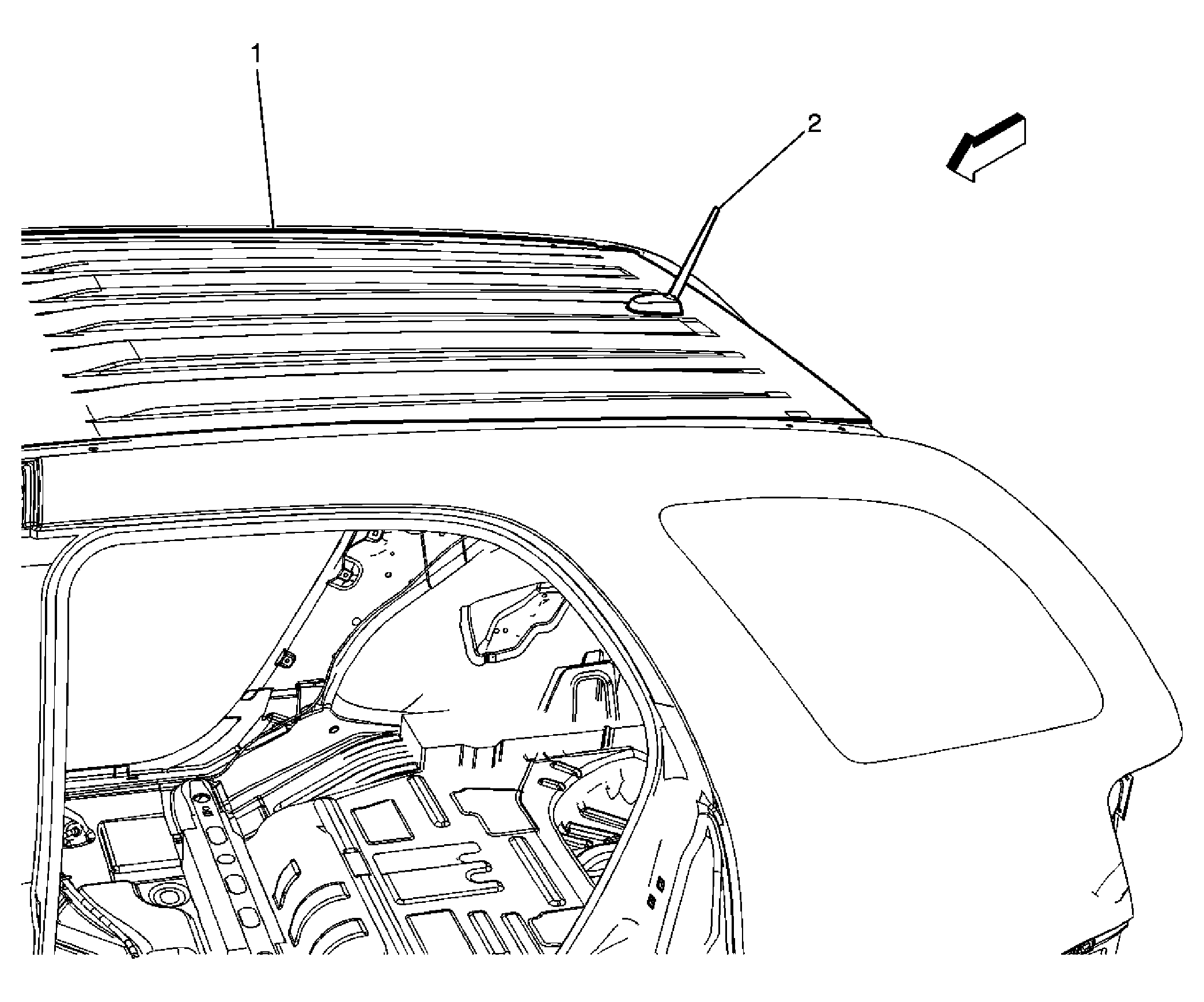

Fig 3: Rear of the Roof View
GM1826045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof
2 Cellular and Navigation Antenna (UE1)
