Remote Function Component Views

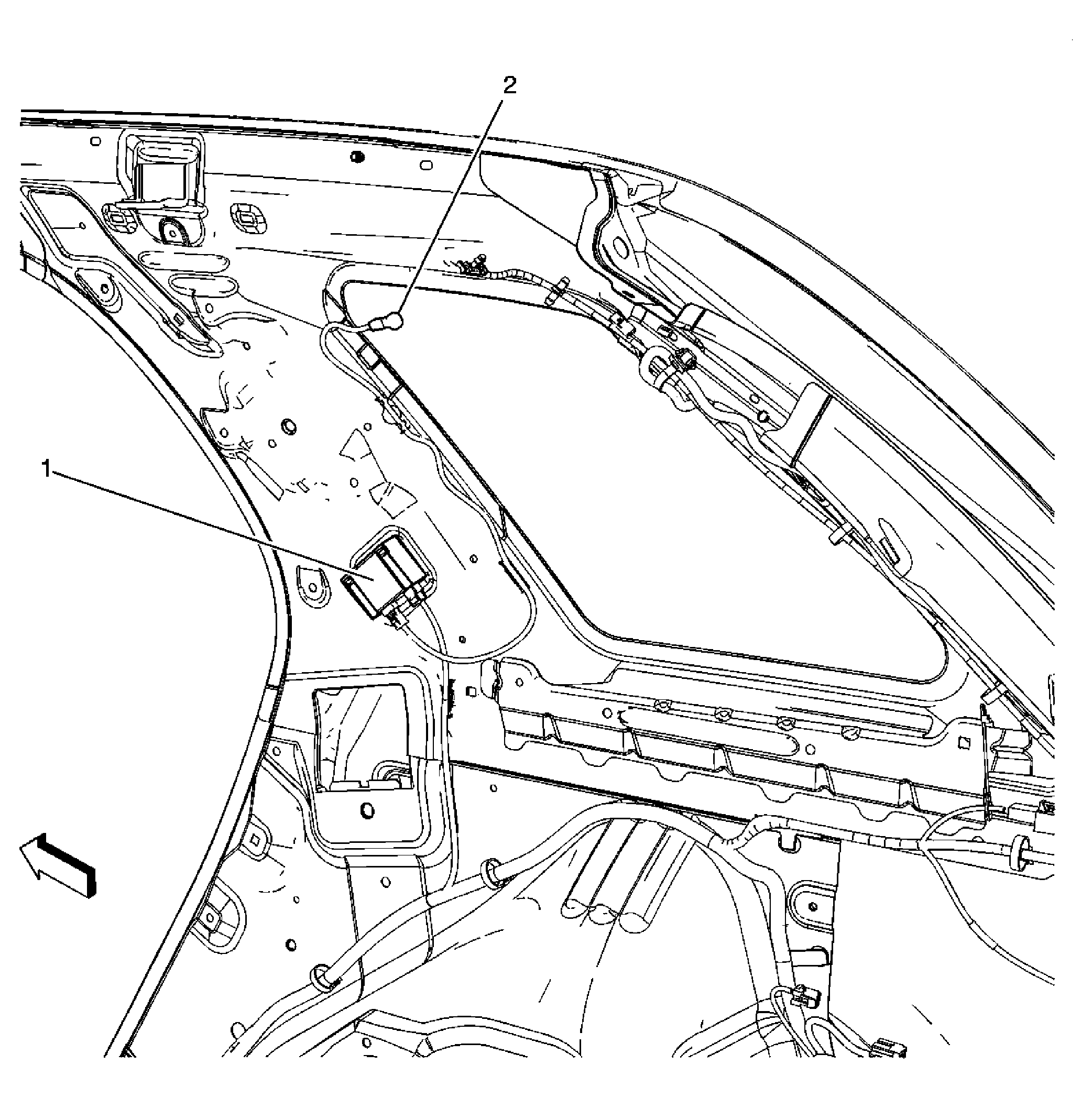

Fig 1: Locating Remote Control Door Lock Receiver (RCDLR) & Antenna
GM1827823Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Control Door Lock Receiver (RCDLR)
2 Remote Control Door Lock Receiver (RCDLR) Antenna
