Installation Procedure

    IMPORTANT: Ensure clearance is maintained between the transmission and the following:
    • The catalytic converter
    • The clutch assembly
    • The engine wiring harness
  1. Using the transmission jack, carefully raise the transmission to the engine.

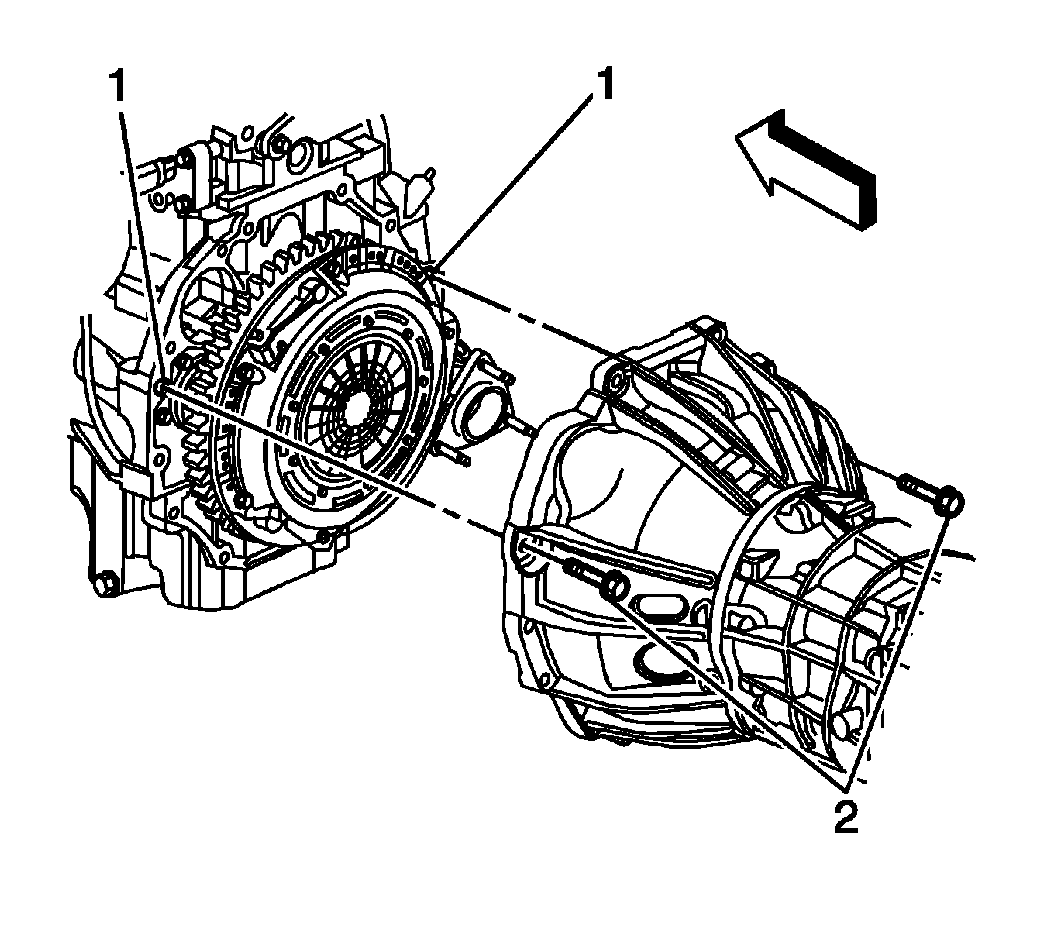

    2. Fig 1: View Of Transmission Mounting Bolts & Engine Dowels
    GM1302115Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not allow the transmission to hang from the clutch assembly.
  2. Align the transmission with the engine dowels (1).
    3. NOTE: Refer to Fastener Notice .
  3. Install the 2 transmission mounting bolts (2).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

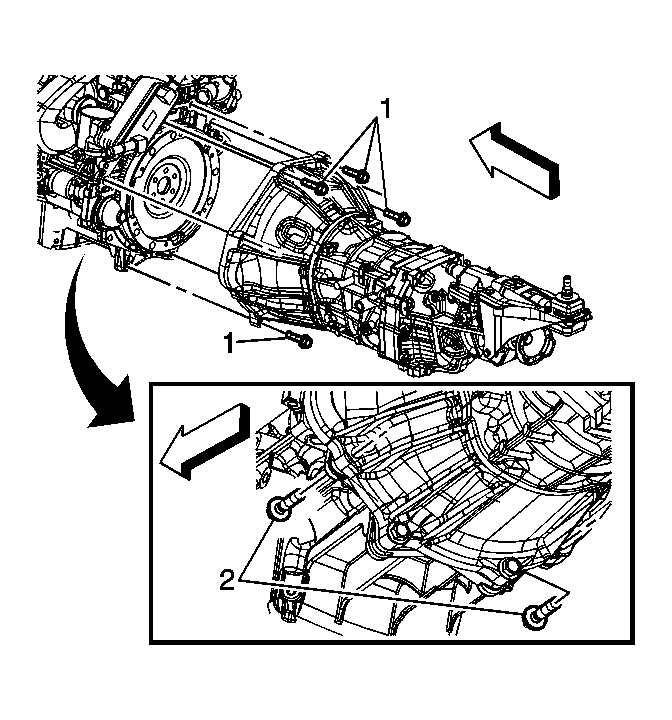

    4. Fig 2: Transmission-To-Engine Mounting Bolts
    GM1607169Courtesy of GENERAL MOTORS CORP.
  4. Install the 2 engine to transmission mounting bolts (2).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  5. Install the 5 transmission to engine mounting bolts (1).

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  6. Install the transmission support. Refer to Transmission Support Replacement .
  7. Remove the transmission jack from under the vehicle.
    8. Fig 3: View Of VSS Electrical Connector
    GM1302108Courtesy of GENERAL MOTORS CORP.
  8. Connect the VSS electrical connector (2)
  9. Connect the engine wiring harness clips (1) to the clip brackets.
  10. Lay the engine wiring harness over the transmission.
    11. Fig 4: View Of Backup Lamp Switch Electrical Connector & Oxygen Sensor
    GM1302110Courtesy of GENERAL MOTORS CORP.
  11. Connect the following engine wiring harness electrical connectors:
    • Backup lamp switch (1)
    • Oxygen sensor (2)
  12. Connect the engine wiring harness clip (3) to the clip bracket.
  13. Install the rear propeller shaft. Refer to Propeller Shaft Replacement .
  14. Fill the transmission fluid if removed. Refer to Transmission Fluid Replacement .

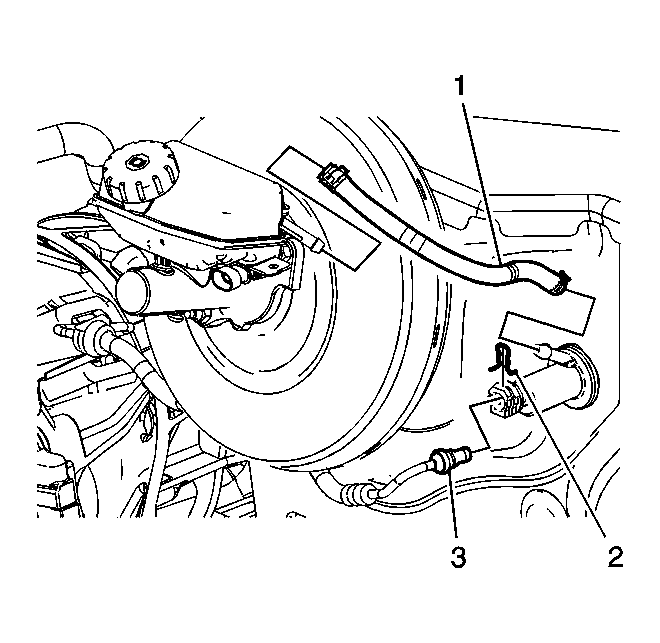

    15. Fig 5: Clutch Hose/Pipe Assembly & Retainer Clip
    GM1608989Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure the clutch hydraulic hose does not come in contact with any sharp or potentially hot surfaces.
  15. Install the clutch hose/pipe assembly retainer clip (2) to the clutch master cylinder.
  16. Connect the clutch hose/pipe assembly (3) to the clutch master cylinder.
  17. Tug gently on the clutch hose/pipe assembly (3) to ensure proper retention into the clutch master cylinder.
  18. If equipped, install the turbocharger. Refer to Turbocharger Replacement .
  19. Install the control lever knob and boot assembly. Refer to Control Lever and/or Boot Replacement .
