Transmission Mount Replacement

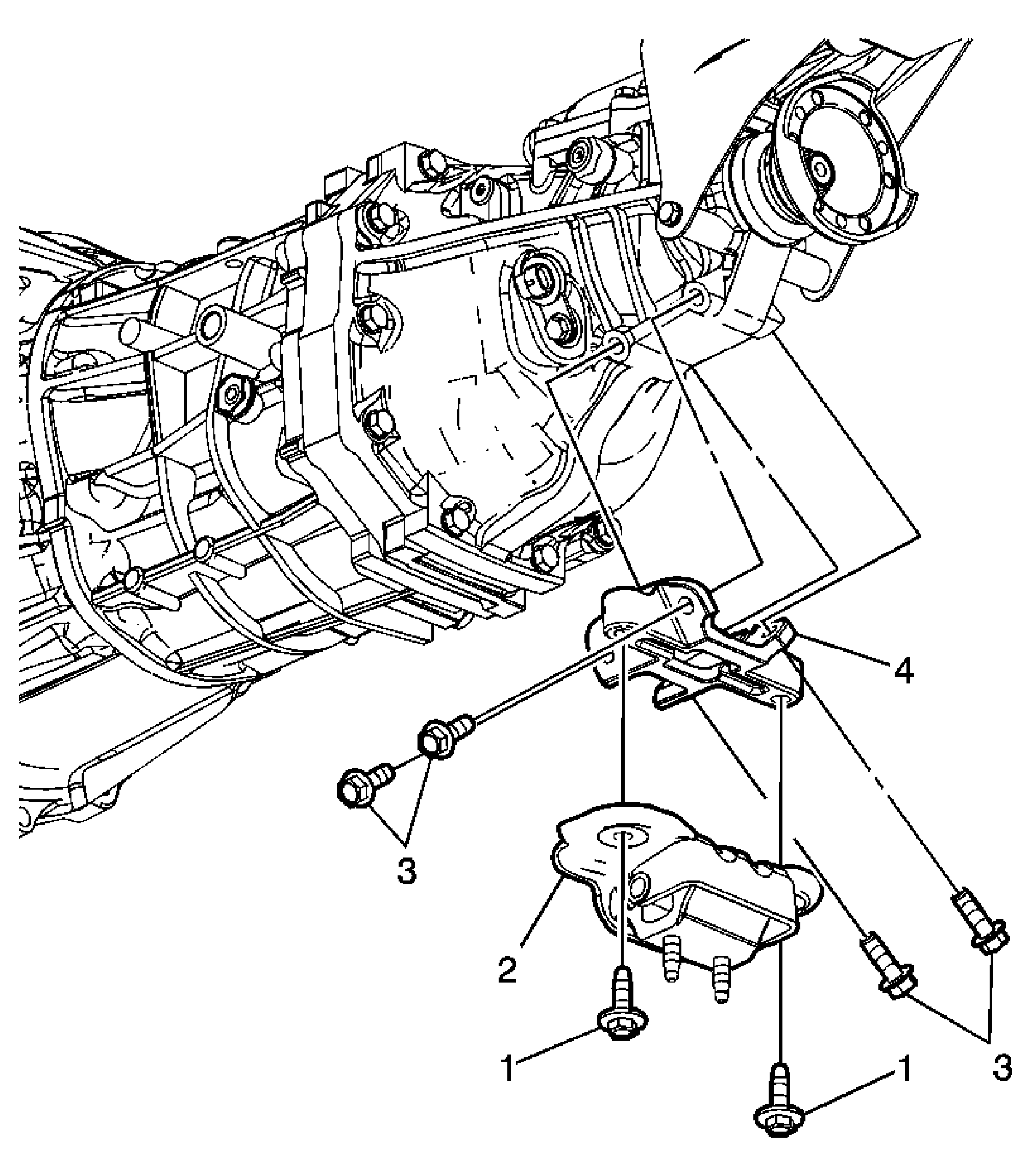

Fig 1: Transmission Mount

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front floor closeout panel. Refer to Floor Panel Tunnel Panel Front Closeout Panel Replacement . Remove the driveline tunnel closeout panel. Refer to Driveline Tunnel Closeout Panel Replacement . Support the transmission. Remove the transmission support. Refer to appropriate Transmission Support Replacement: Transmission Support Replacement (M/T w/Z0K) Transmission Support Replacement (M/T)
1	Transmission Mount Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 55 N.m (41 lb ft)
2	Transmission Mount
3	Transmission Mount Adaptor Bolt (Qty: 4) Tighten: 55 N.m (41 lb ft)
4	Transmission Mount Adaptor
