Transmission Case Disassemble

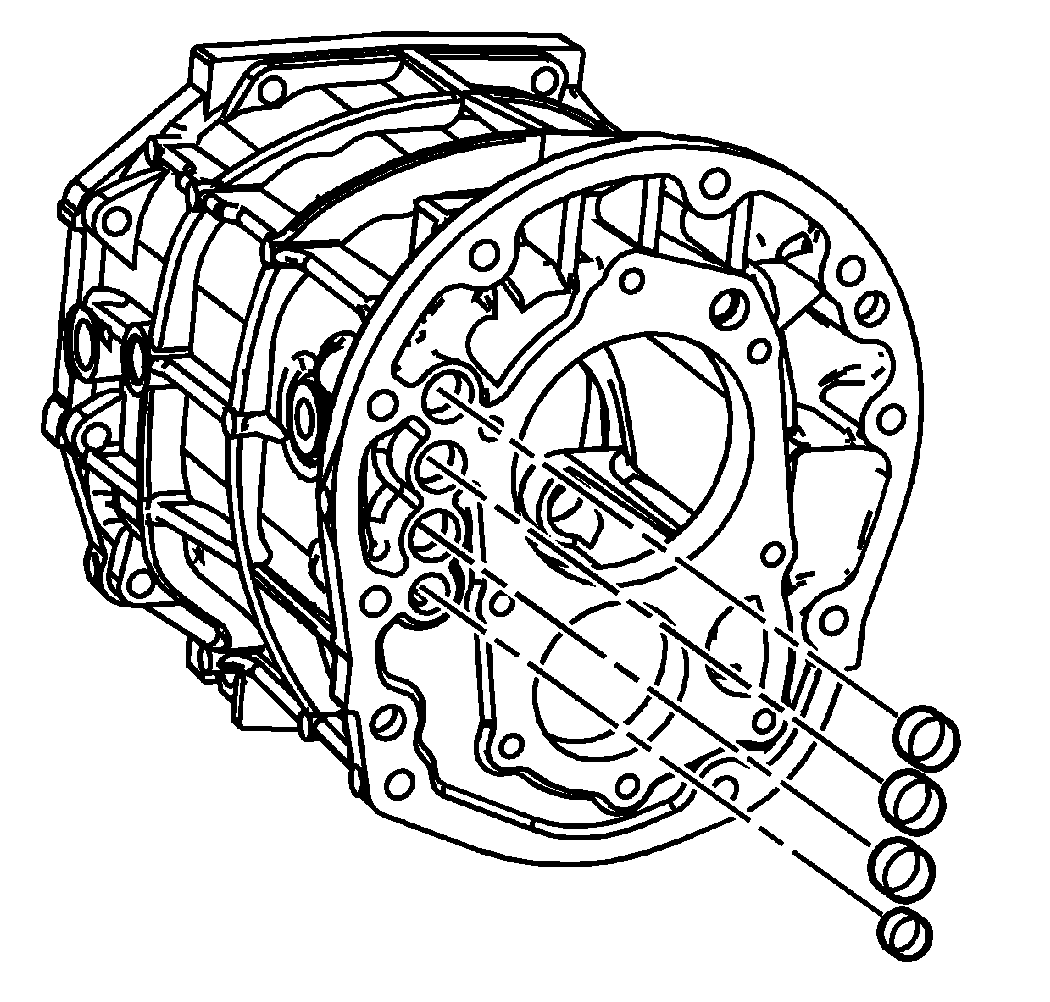

Fig 1: Locating Shift Shaft Plugs In Transmission Front Case
GM880944Courtesy of GENERAL MOTORS CORP.

If required, using a suitable punch, remove the shift shaft plugs from the front case.
