Input Shaft Disassemble

Tools Required

J 22912-B  Split-Plate Bearing Puller

    Fig 1: View Of 4th Gear Blocking Ring
    GM880814Courtesy of GENERAL MOTORS CORP.
  1. Remove the 4th gear blocking ring from the input shaft.
    2. Fig 2: Locating Output Front Support Bearing
    GM880816Courtesy of GENERAL MOTORS CORP.
  2. Remove the output shaft front support bearing from the input shaft.
    3. Fig 3: Identifying Input Shaft Bearing Retaining Ring
    GM880819Courtesy of GENERAL MOTORS CORP.
  3. Inspect the input shaft bearing for being faulty. Refer to Bearings and Spacers Cleaning and Inspection .
  4. If the bearing is faulty, remove the input shaft bearing retaining ring.

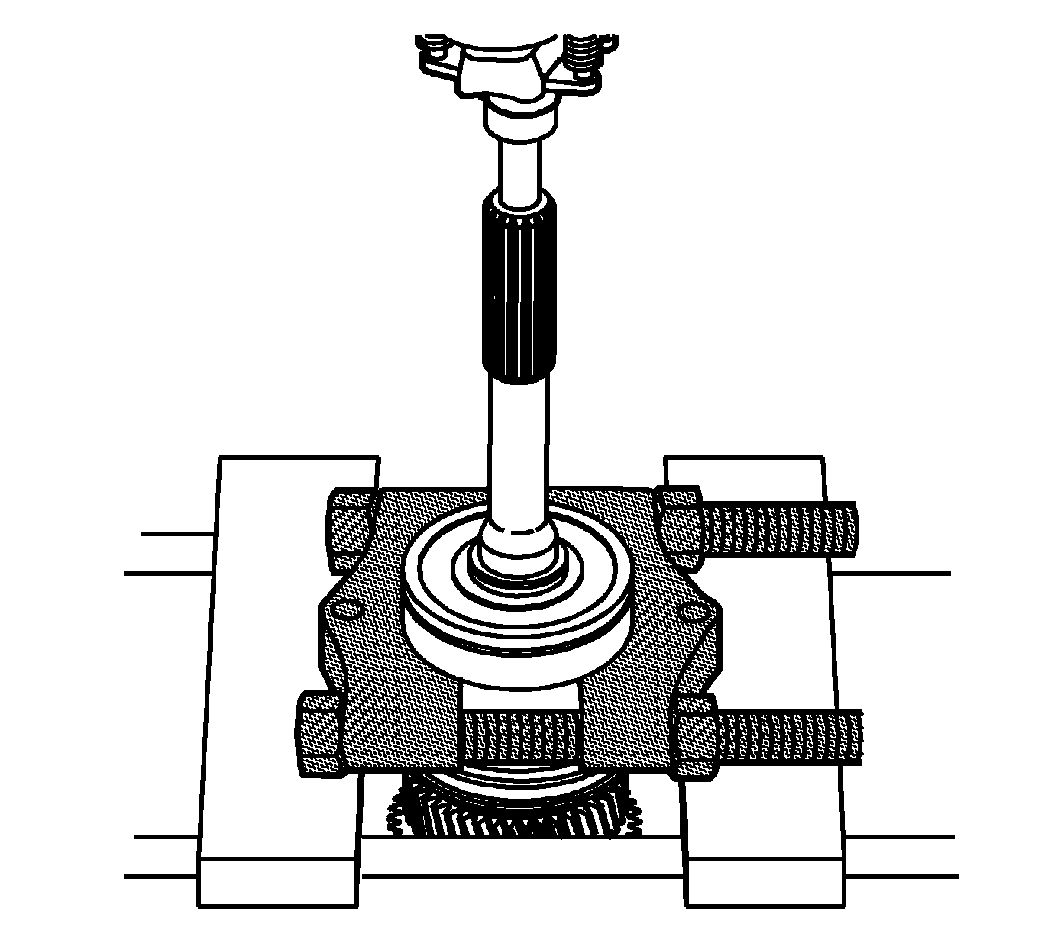

    5. Fig 4: Removing The Input Shaft Bearing Using J 22912-01
    GM880825Courtesy of GENERAL MOTORS CORP.
  5. Using a hydraulic press and J 22912-B  , remove the input shaft bearing. Discard the bearing. Do not use the bearing after removal.
