Moveable Window Schematics

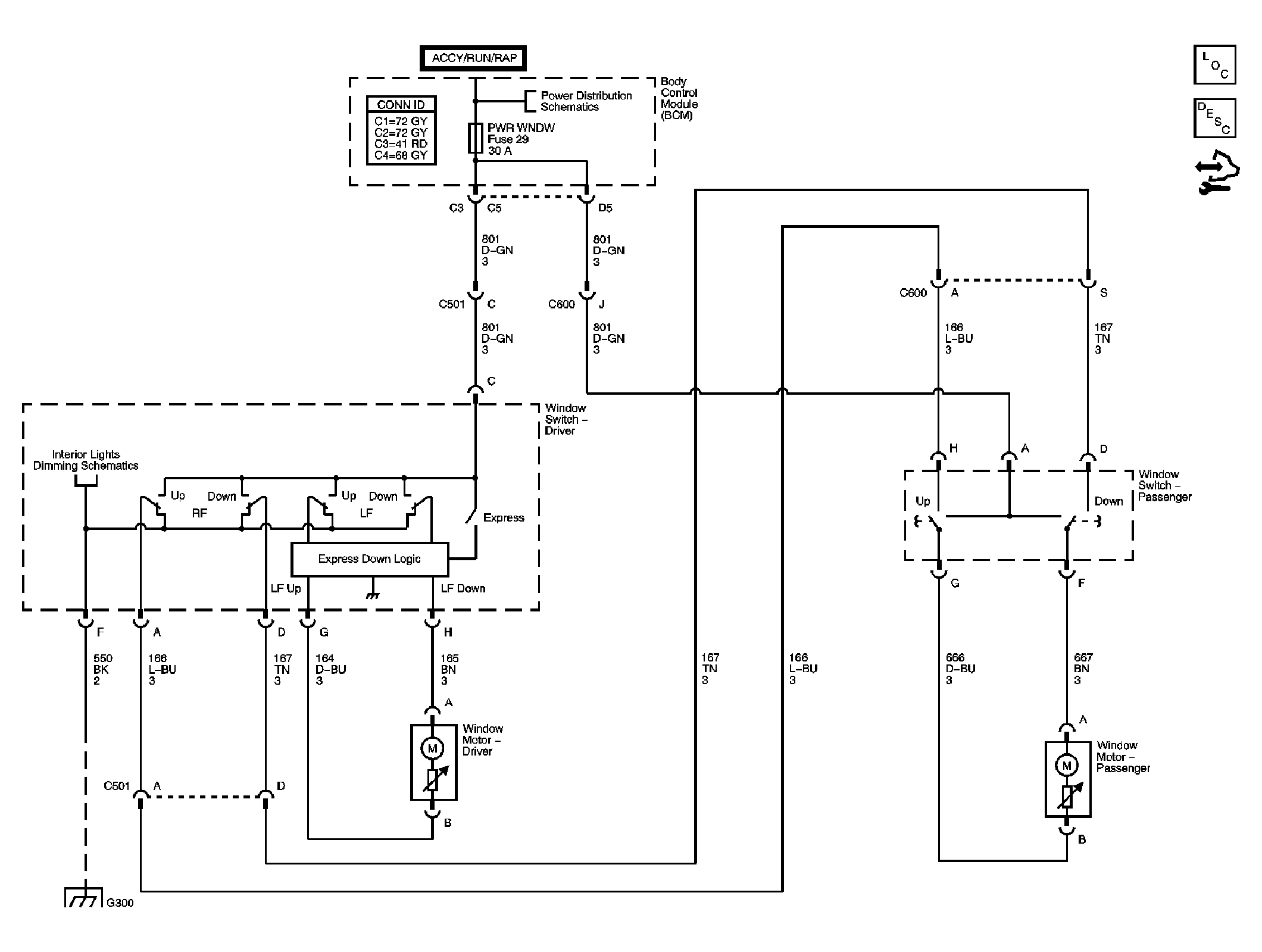

Fig 1: Moveable Window Schematic

GM1829665

Courtesy of GENERAL MOTORS CORP.
