Front Side Door Window Replacement

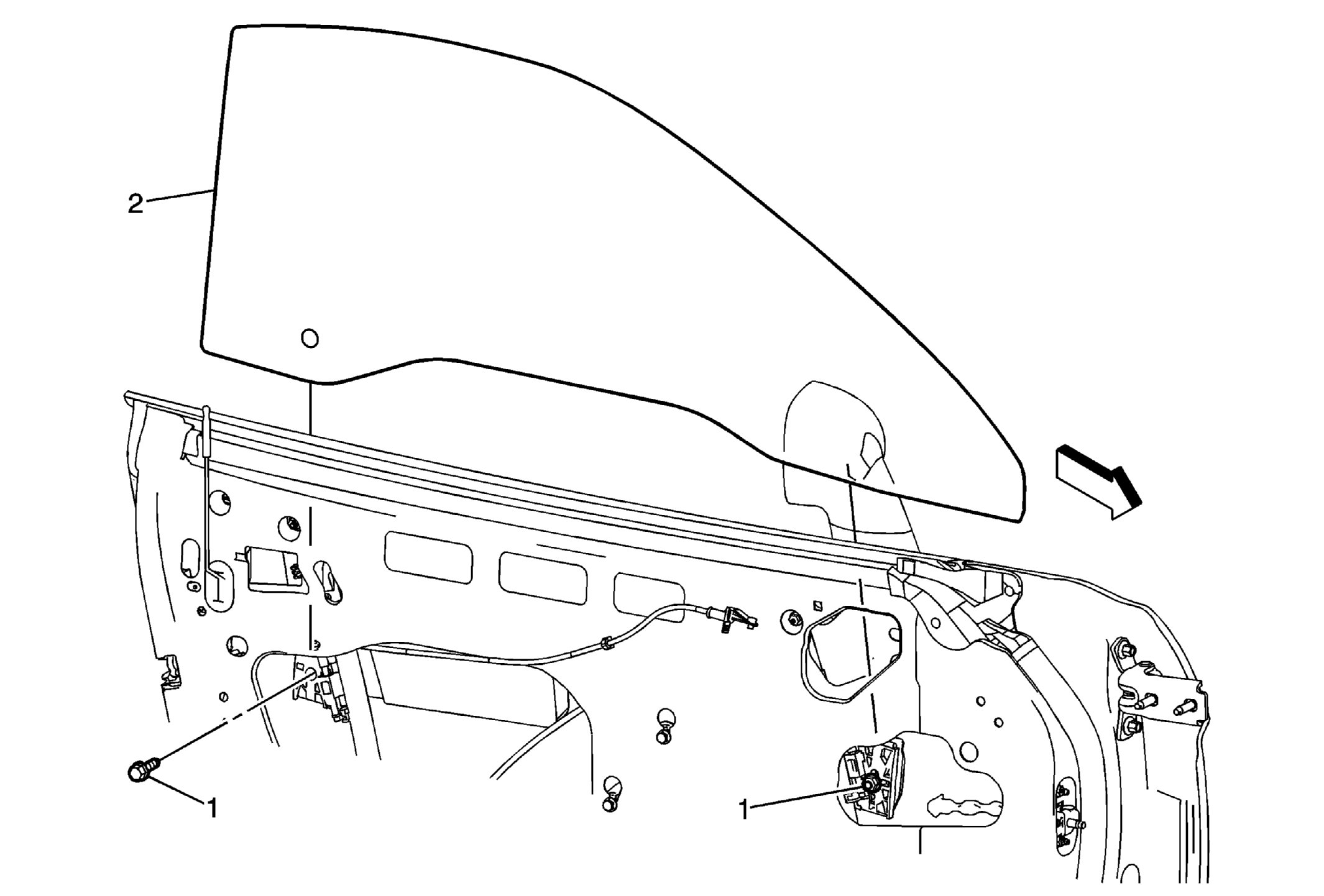

Fig 1: Front Door Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position window approximately half way down. Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement .
1	Front Side Door Window Regulator to Window Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Front Door Window Tip: Adjust the door window. Refer to Door Window Adjustment .

Callout

Component Name

Preliminary Procedures

Front Side Door Window Regulator to Window Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Front Door Window
Tip: Adjust the door window. Refer to Door Window Adjustment .
