Data Communication Schematics

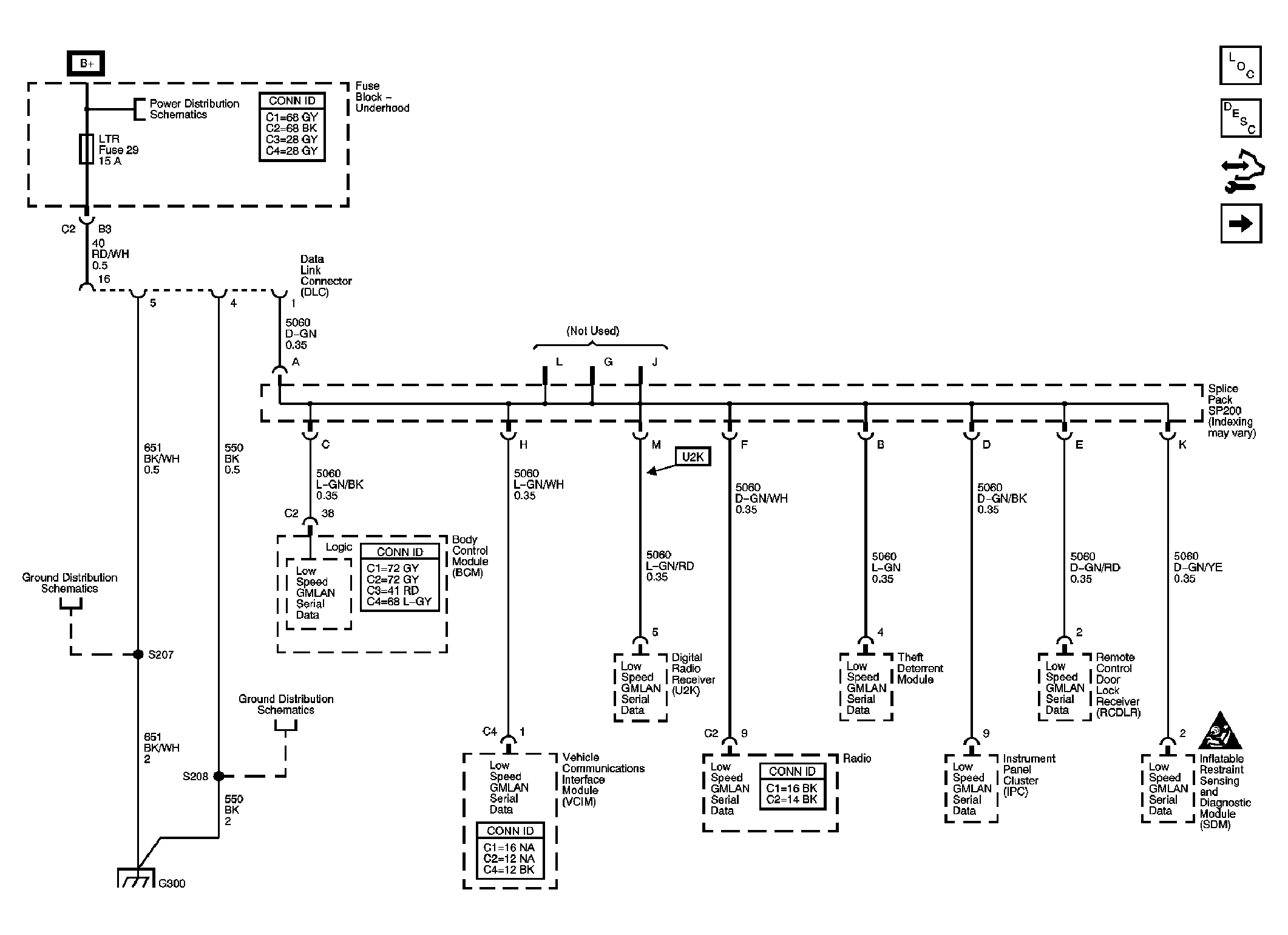

Fig 1: Low Speed LAN Schematic

GM1830092

Courtesy of GENERAL MOTORS CORP.

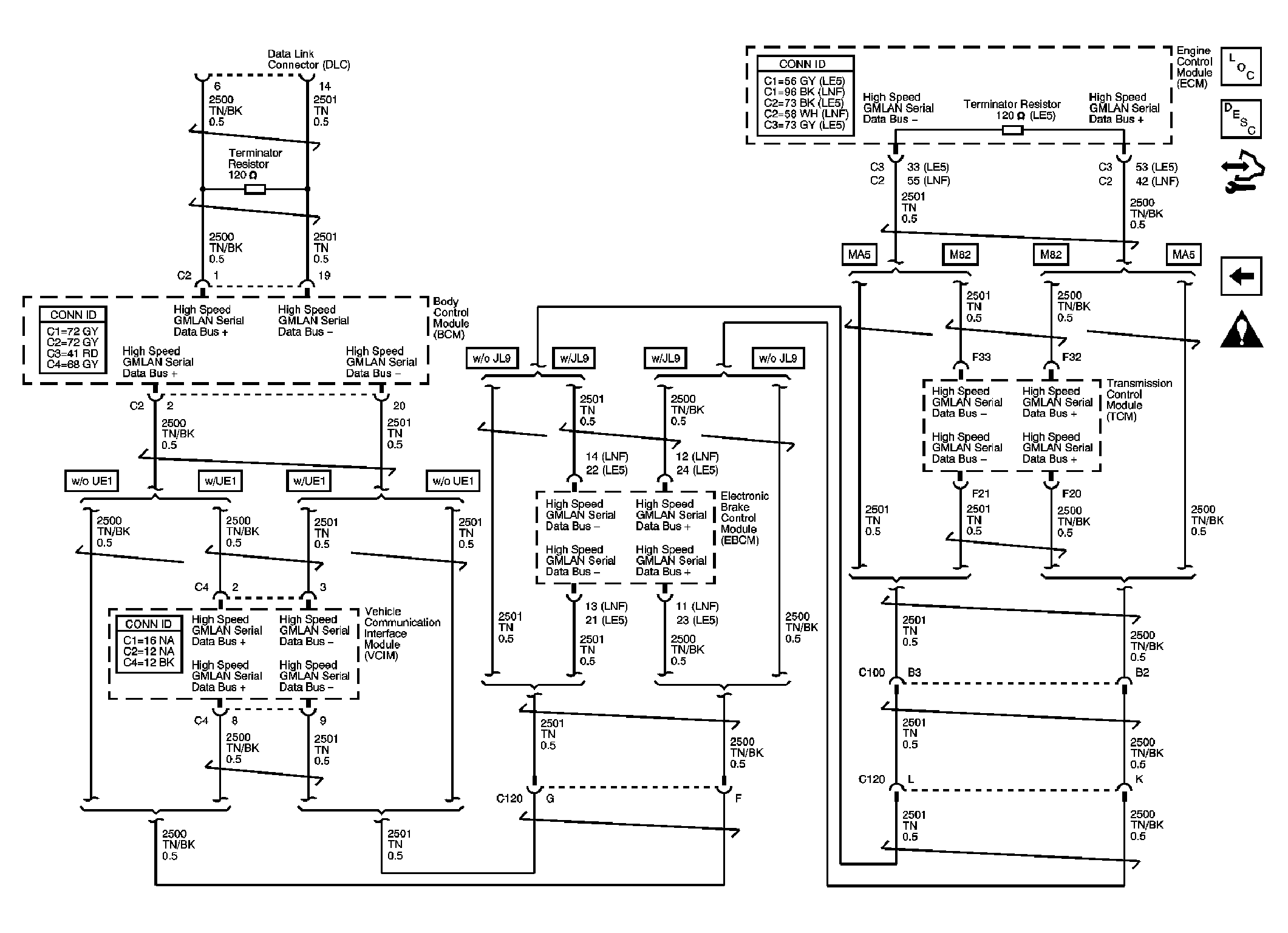

Fig 2: High Speed LAN Schematic

GM1830096

Courtesy of GENERAL MOTORS CORP.
