Body Control System Schematics

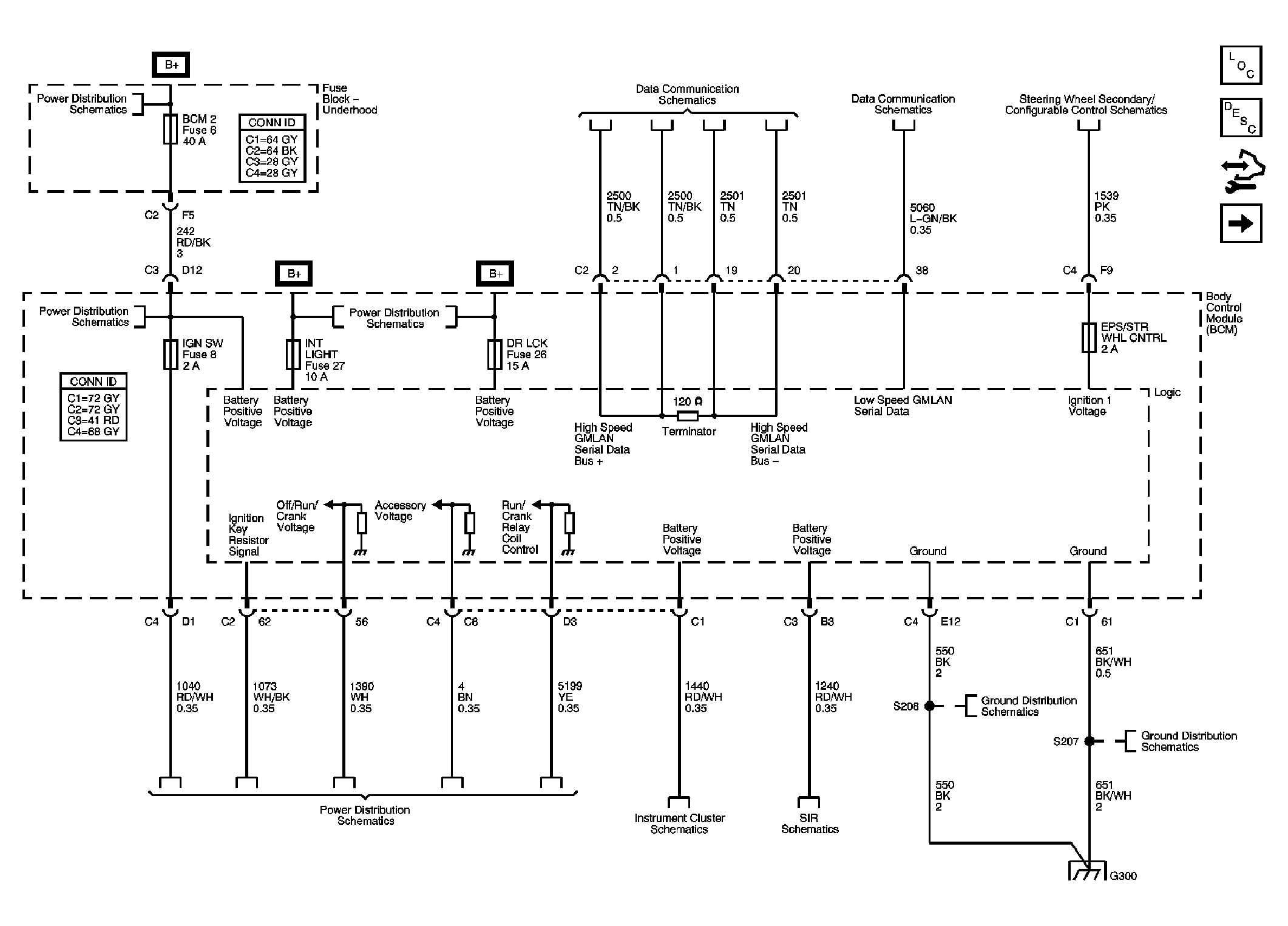

Fig 1: Data Link, Ground, and Power Schematic
GM1830061Courtesy of GENERAL MOTORS CORP.

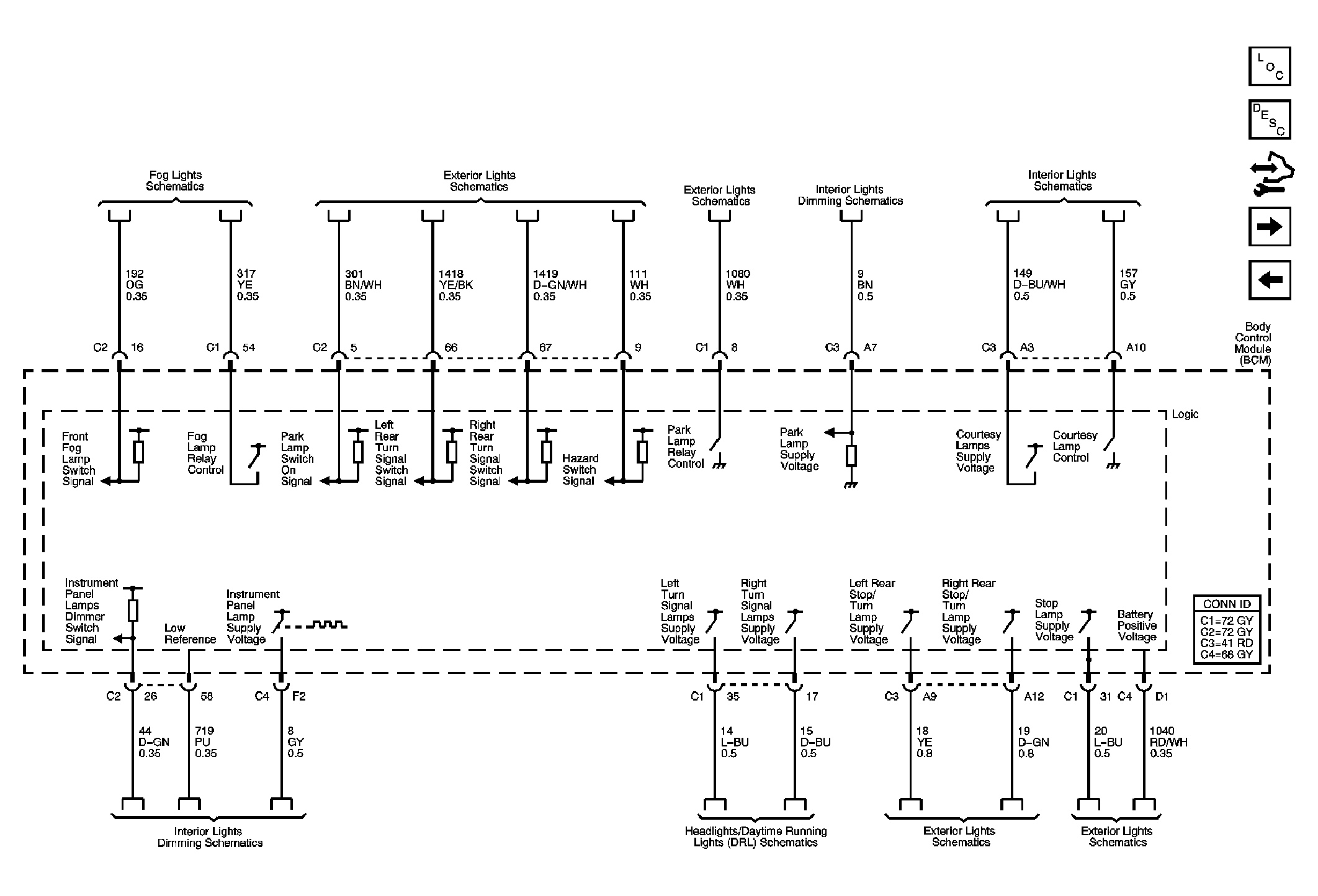

Fig 2: Lighting System References Schematic
GM1830066Courtesy of GENERAL MOTORS CORP.

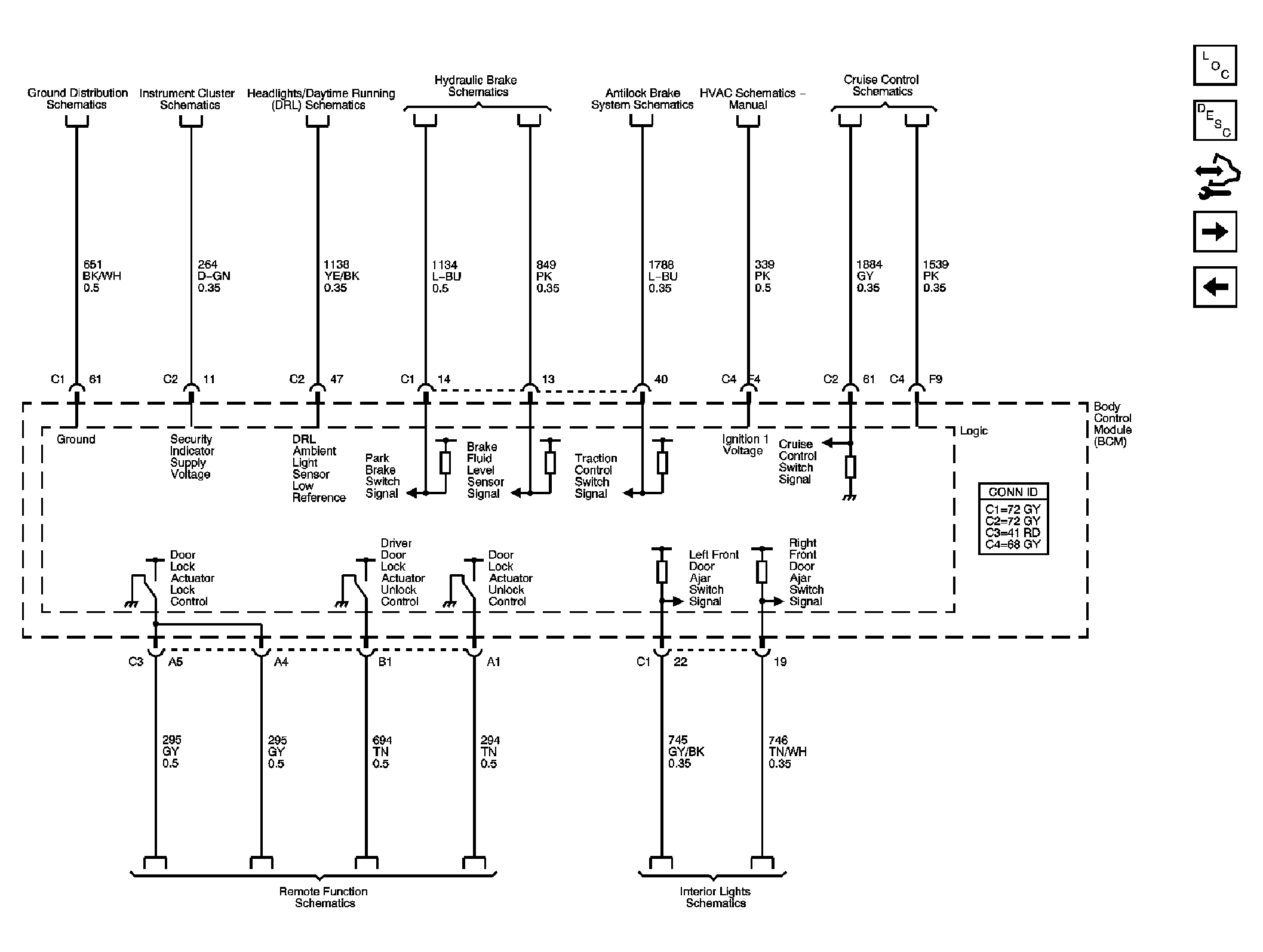

Fig 3: Brakes, Cooling System, Cruise, and Door Lock References Schematic
GM1830071Courtesy of GENERAL MOTORS CORP.

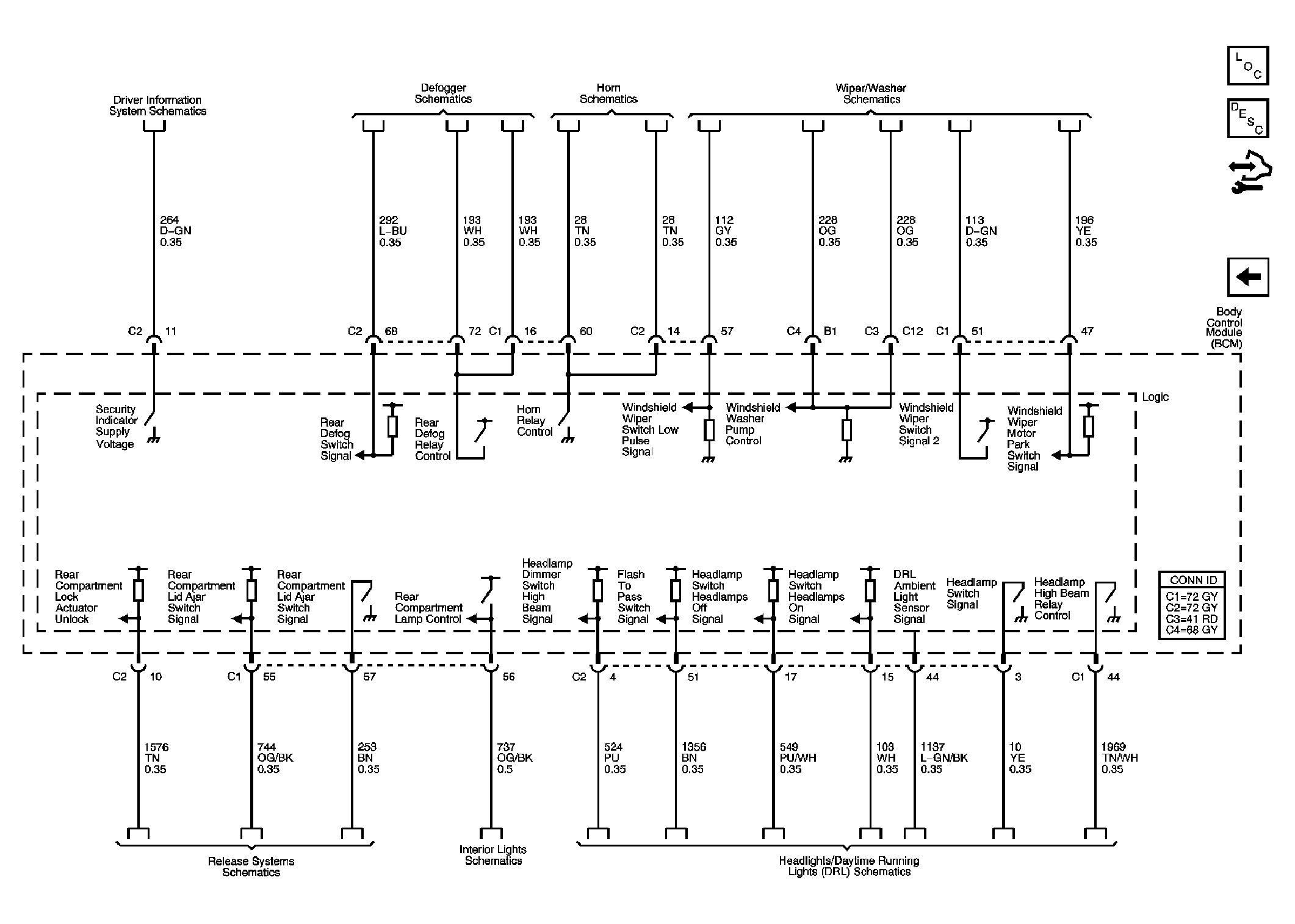

Fig 4: Defogger, Horn, Release Systems, & Wiper/Washer References Schematic
GM1830079Courtesy of GENERAL MOTORS CORP.
