Installation Procedure

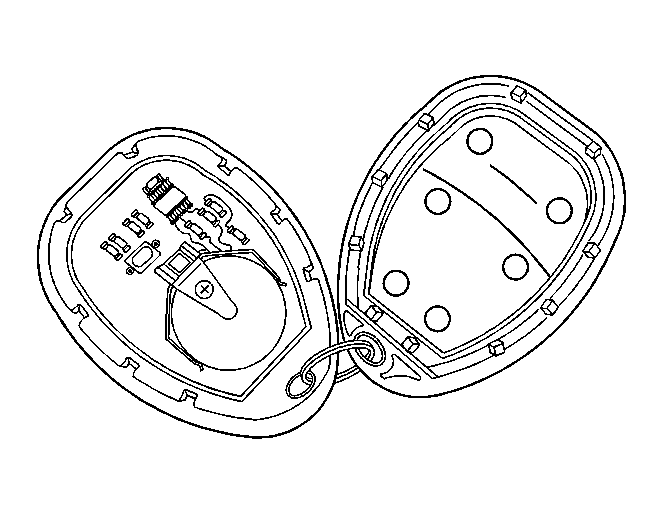

    Fig 1: Locating Transmitter Battery
    GM1547519Courtesy of GENERAL MOTORS CORP.
  1. Install the battery into the transmitter with the positive side of the battery facing up.
  2. Snap the front and back half of the transmitter together.
  3. Ensure the transmitter halves are tight to prevent moisture from intruding into the transmitter.
