Power Distribution Schematics

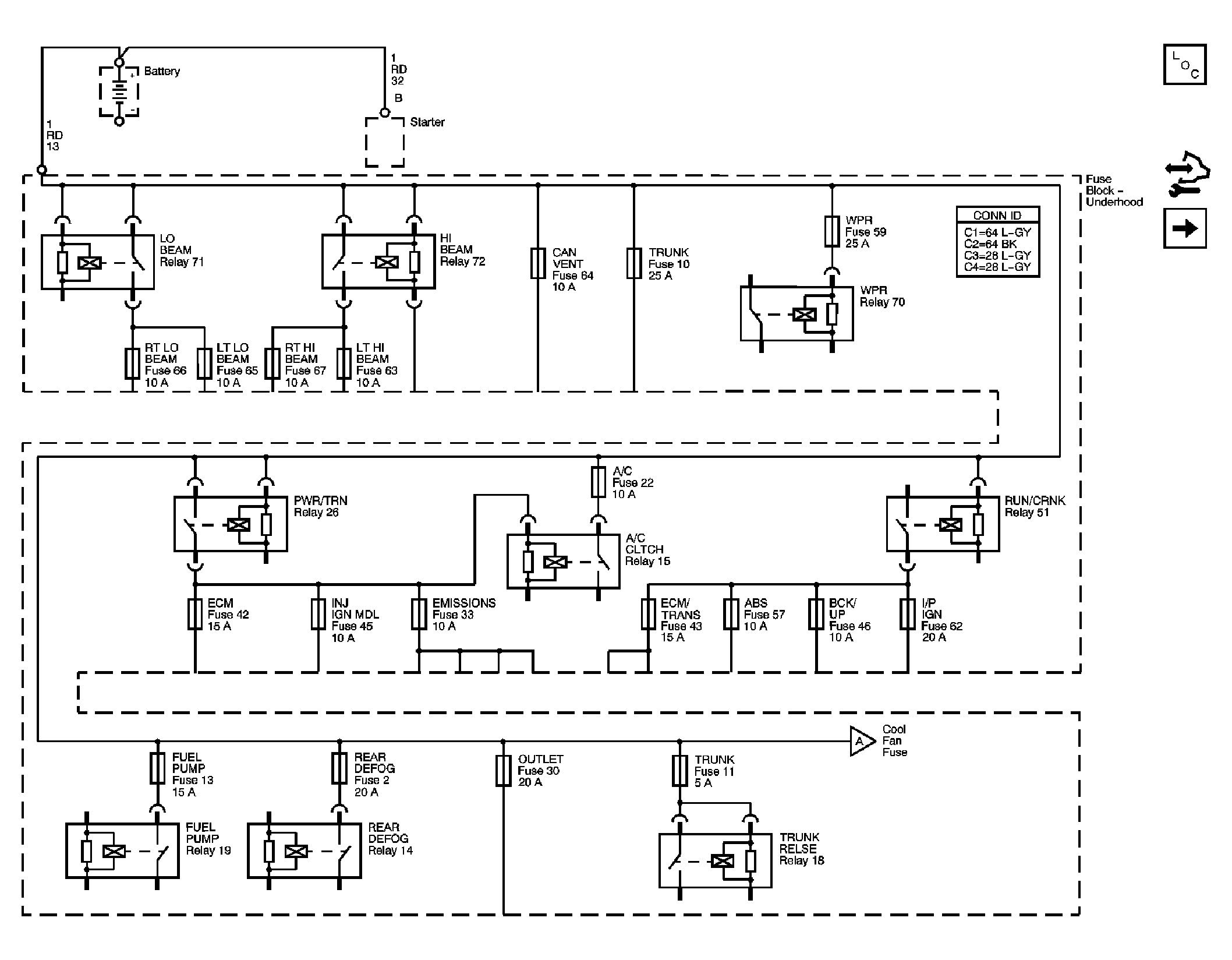

Fig 1: B+ Bus Bar Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

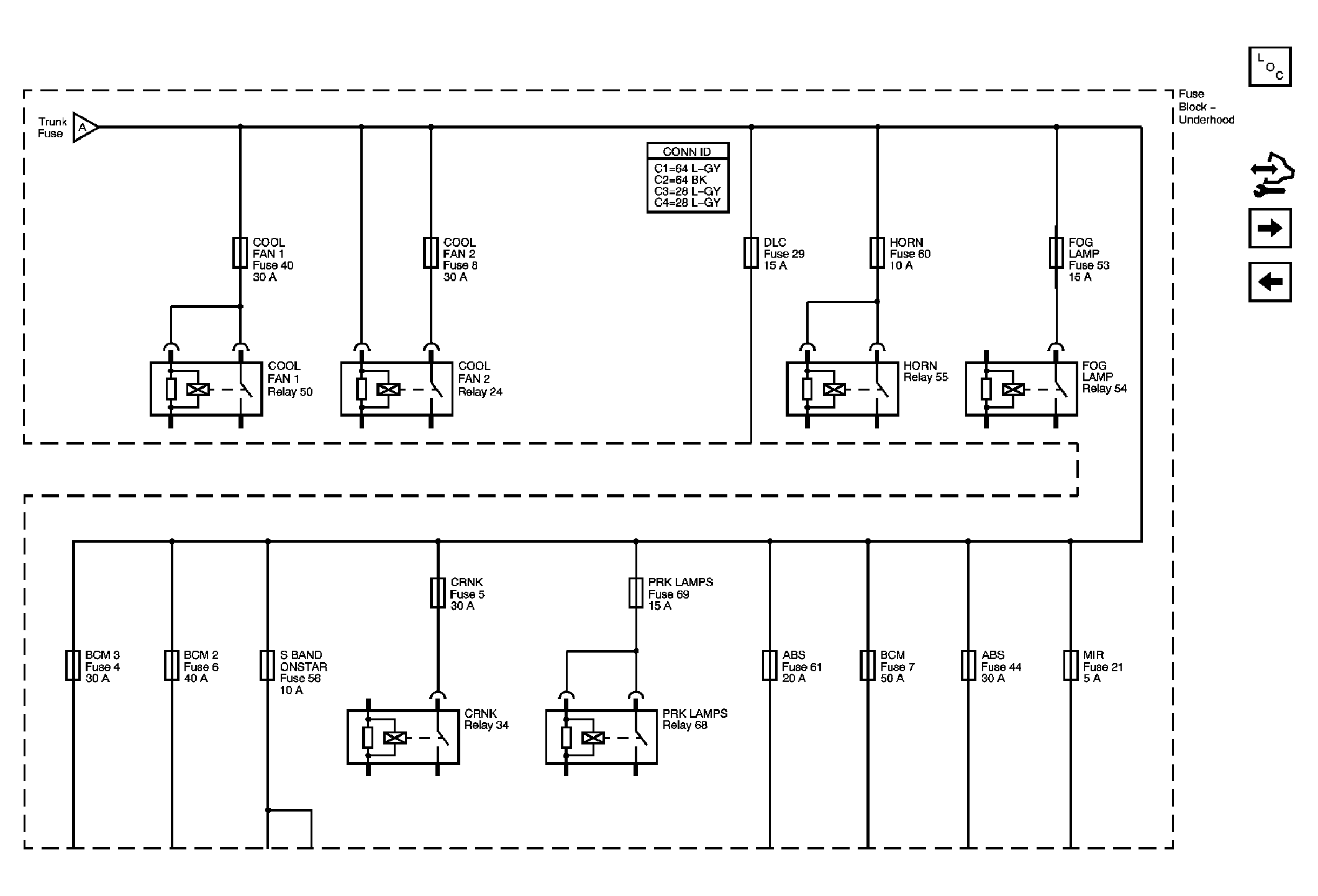

Fig 2: B+ Bus Bar Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: LH LOW BEAM, RH LOW BEAM, LH HI BEAM, RH HI BEAM, and PARK LAMPS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

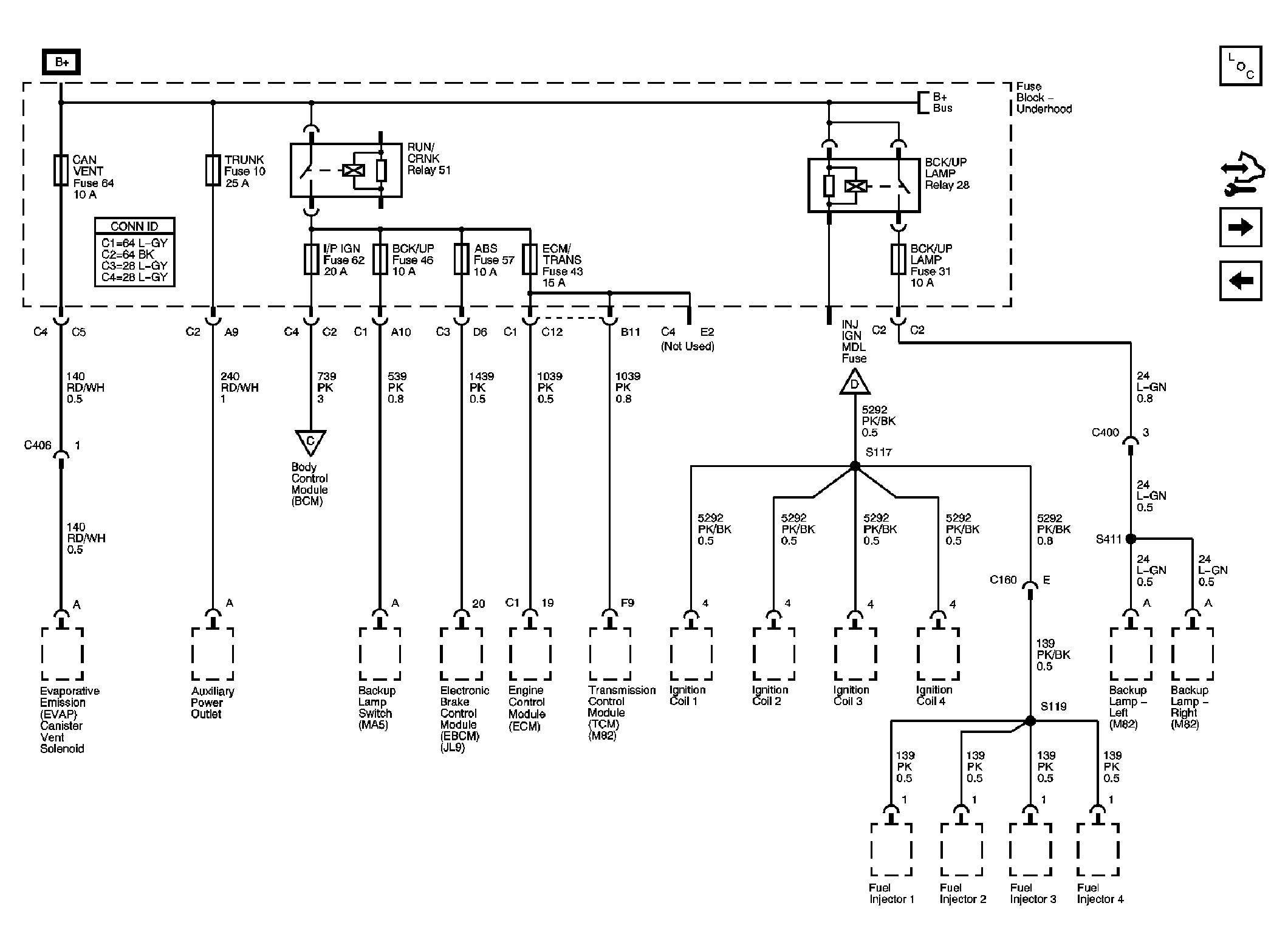

Fig 4: TANK VENT, OUTLET, IP IGN, BACK UP, ABS, and ECM TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

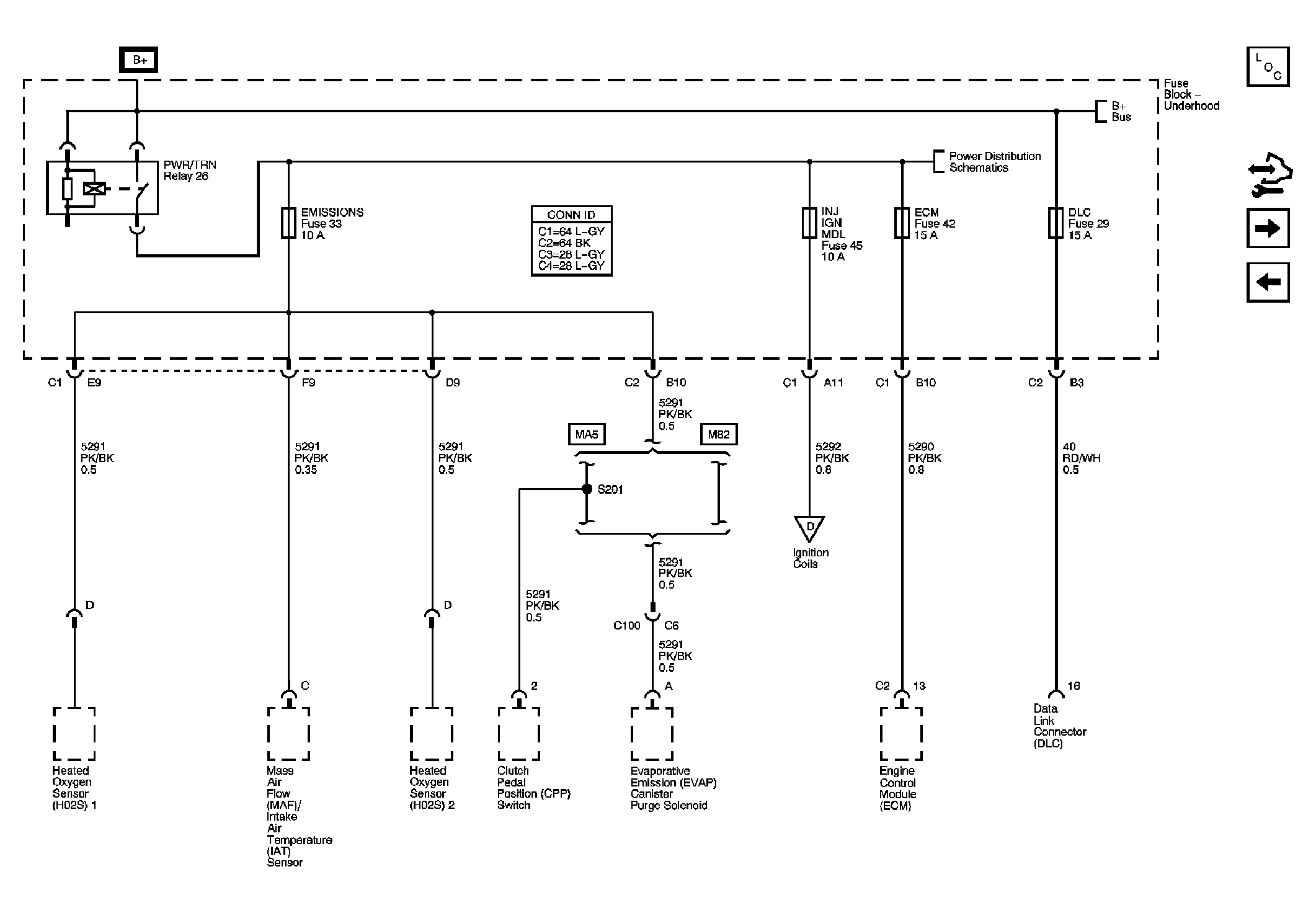

Fig 5: EMISSIONS, ECM, and LIGHTER Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

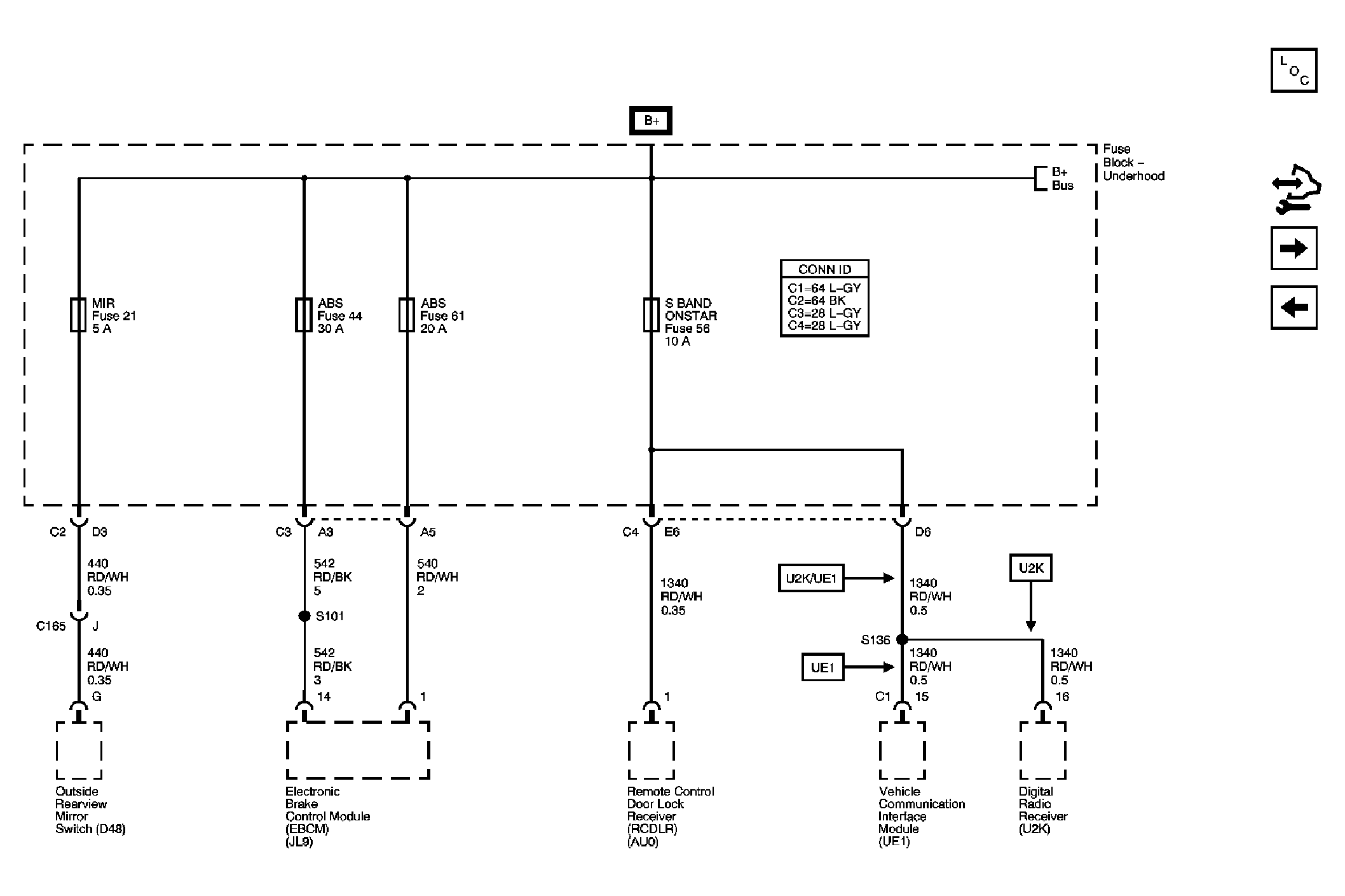

Fig 6: MIRRORS, ABS, ABS/BCM, and S-BAND ONSTAR Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

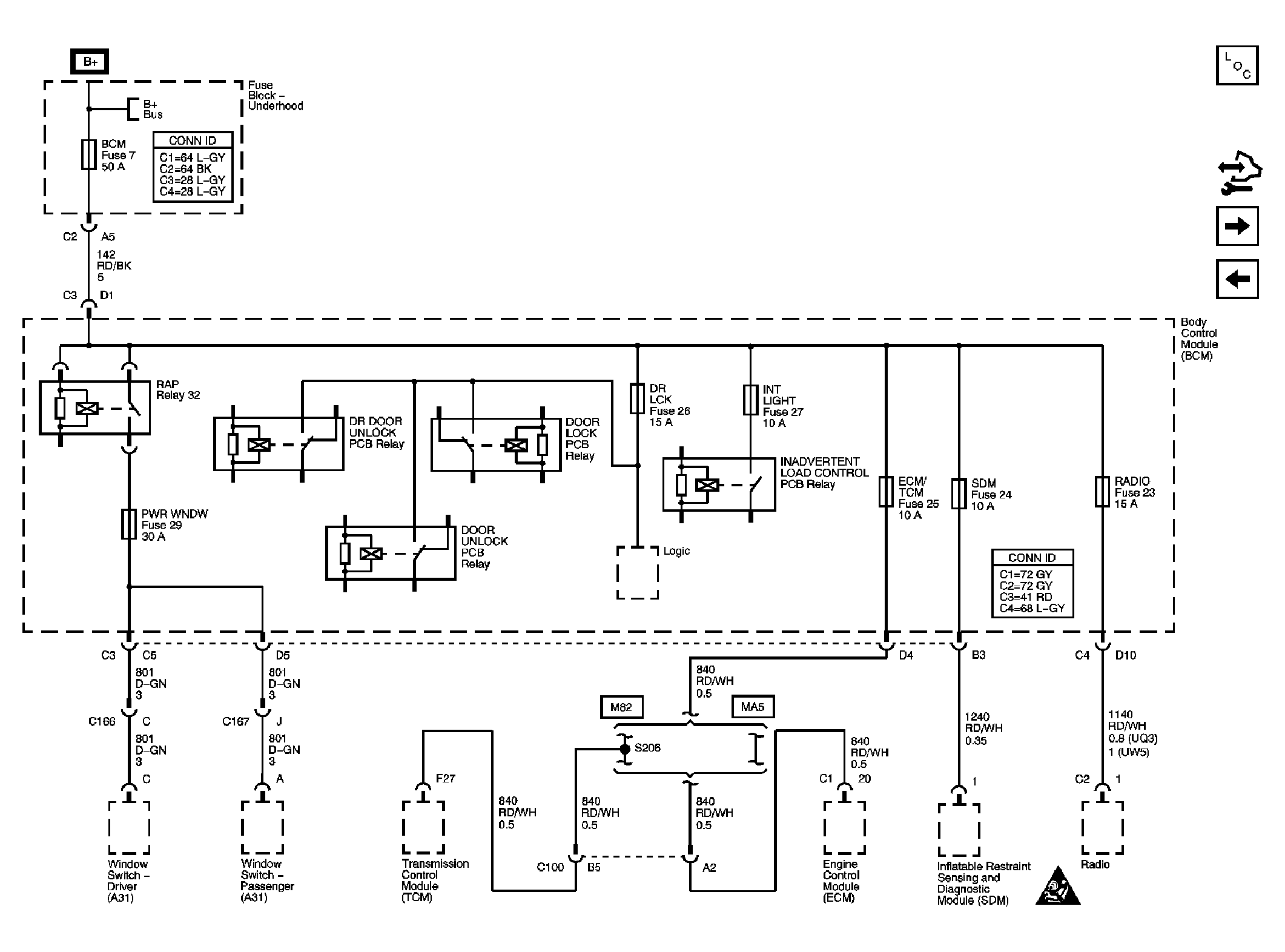

Fig 7: WINDOWS, DOOR LKS, INT LPS, ECM/TCM, RADIO, and SDM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

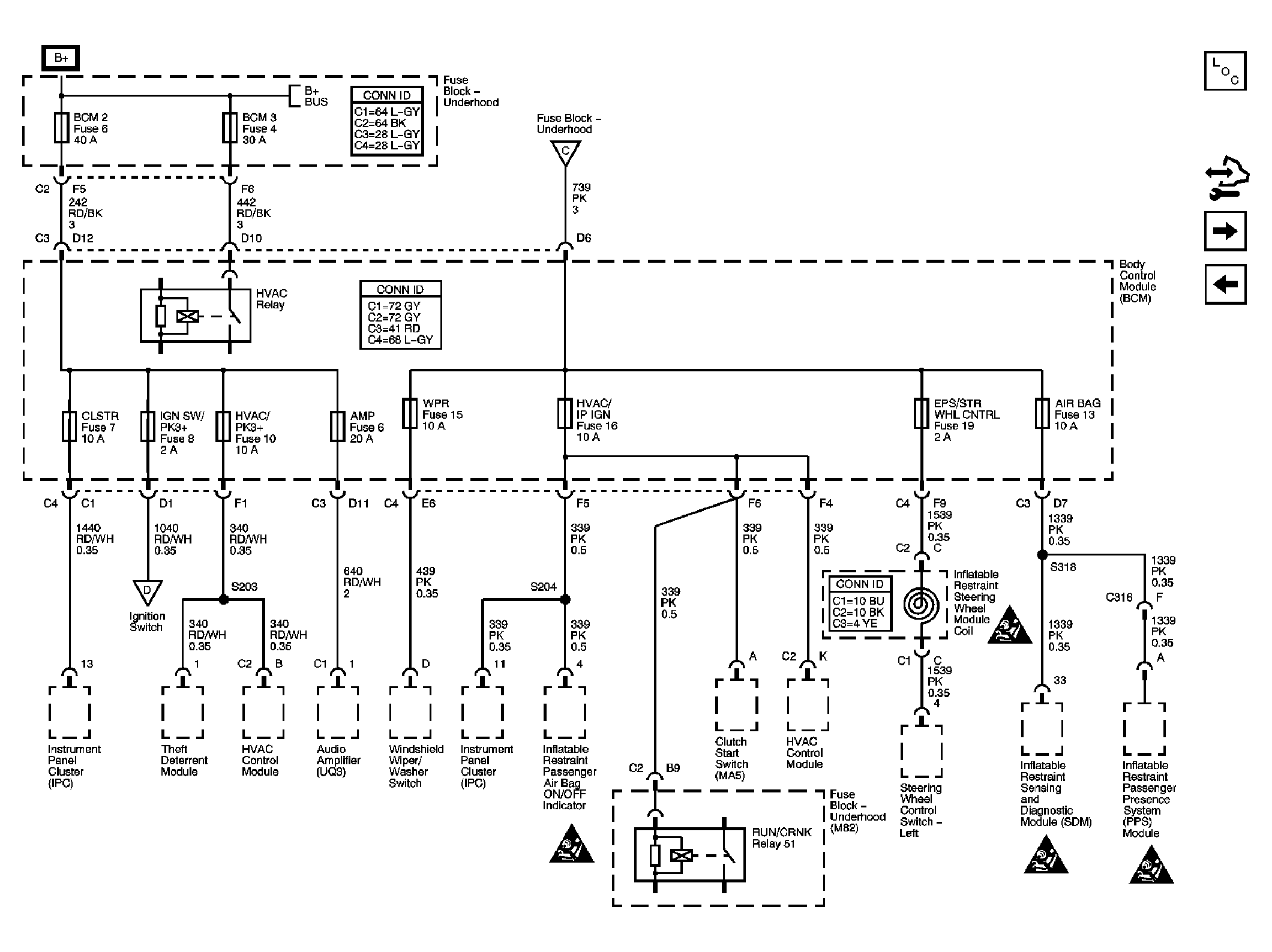

Fig 8: CLUSTER, IGN SW/PK3, HVAC/PK3, AUDIO AMPLIFIER, WIPERS, HVAC/IP IGN, RESTRAINTS, and EPS/SWC Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

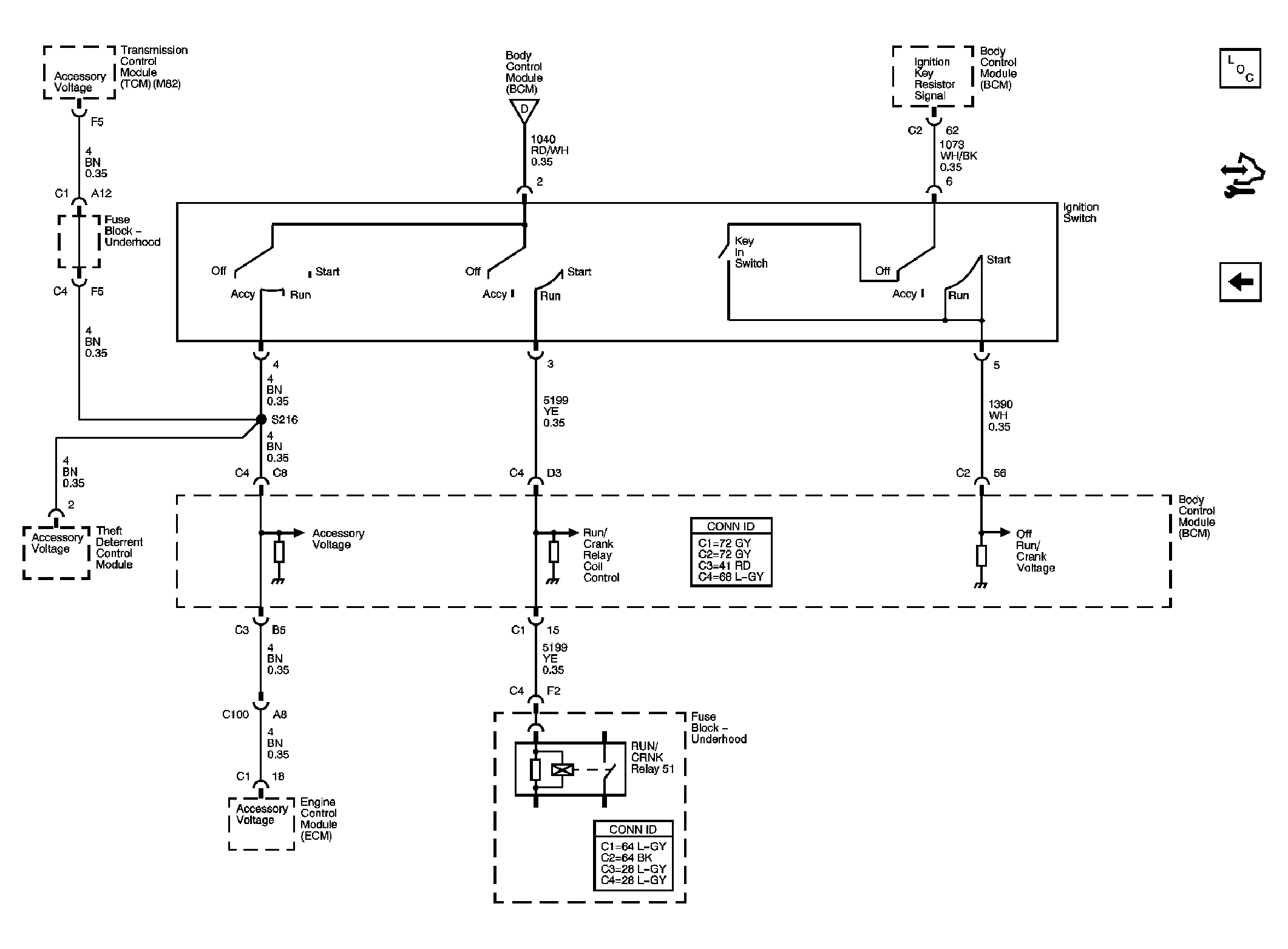

Fig 9: Ignition Switch Modes Schematic

Courtesy of GENERAL MOTORS CORP.
