Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

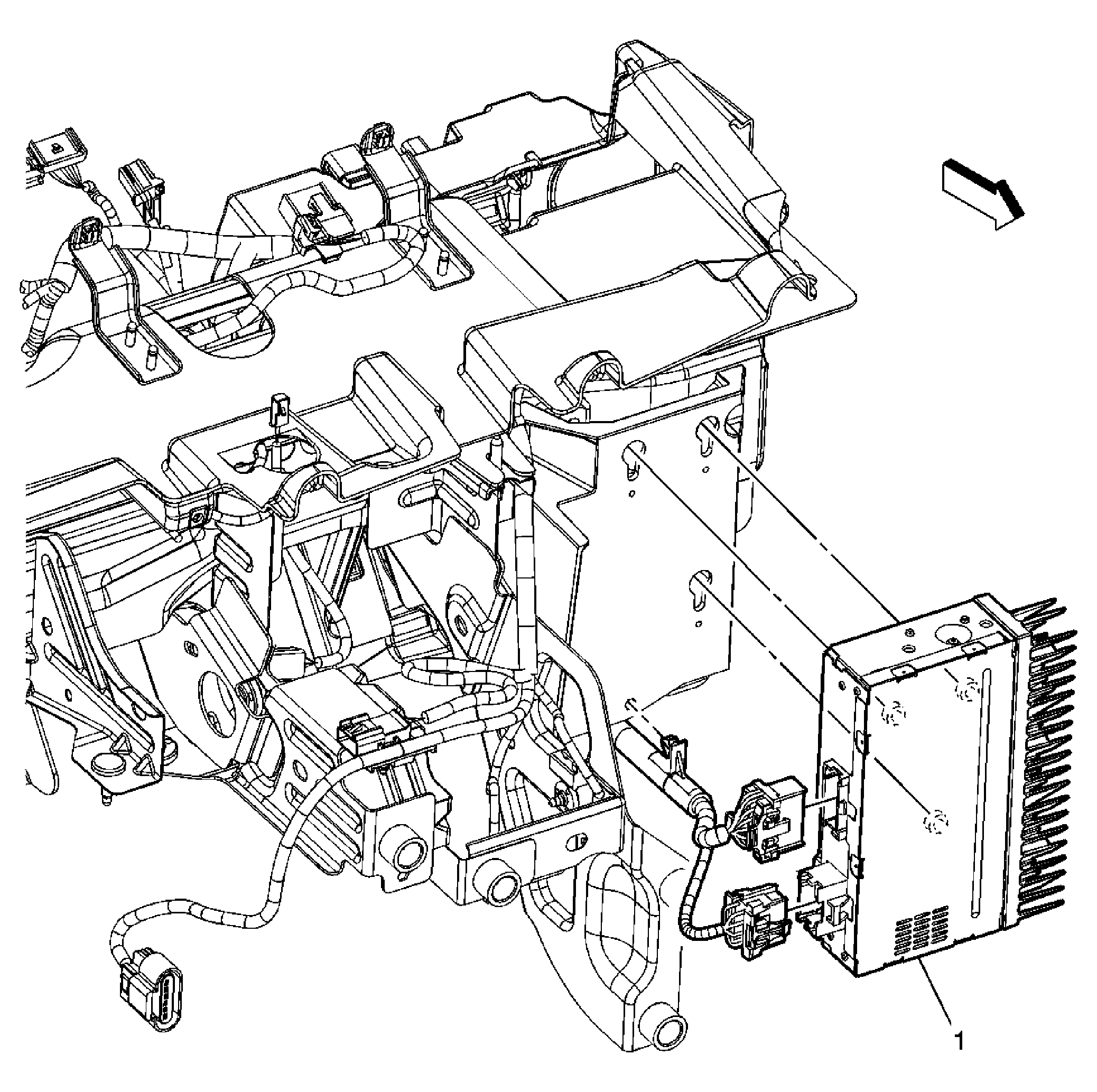

Fig 1: View Of Amplifier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Amplifier Assembly Refer to Control Module References for programming and setup information. Tip: Amp is located under the instrument panel (I/P) left of steering column. Disconnect the electrical connectors.
