Radio Rear Speaker Replacement
WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

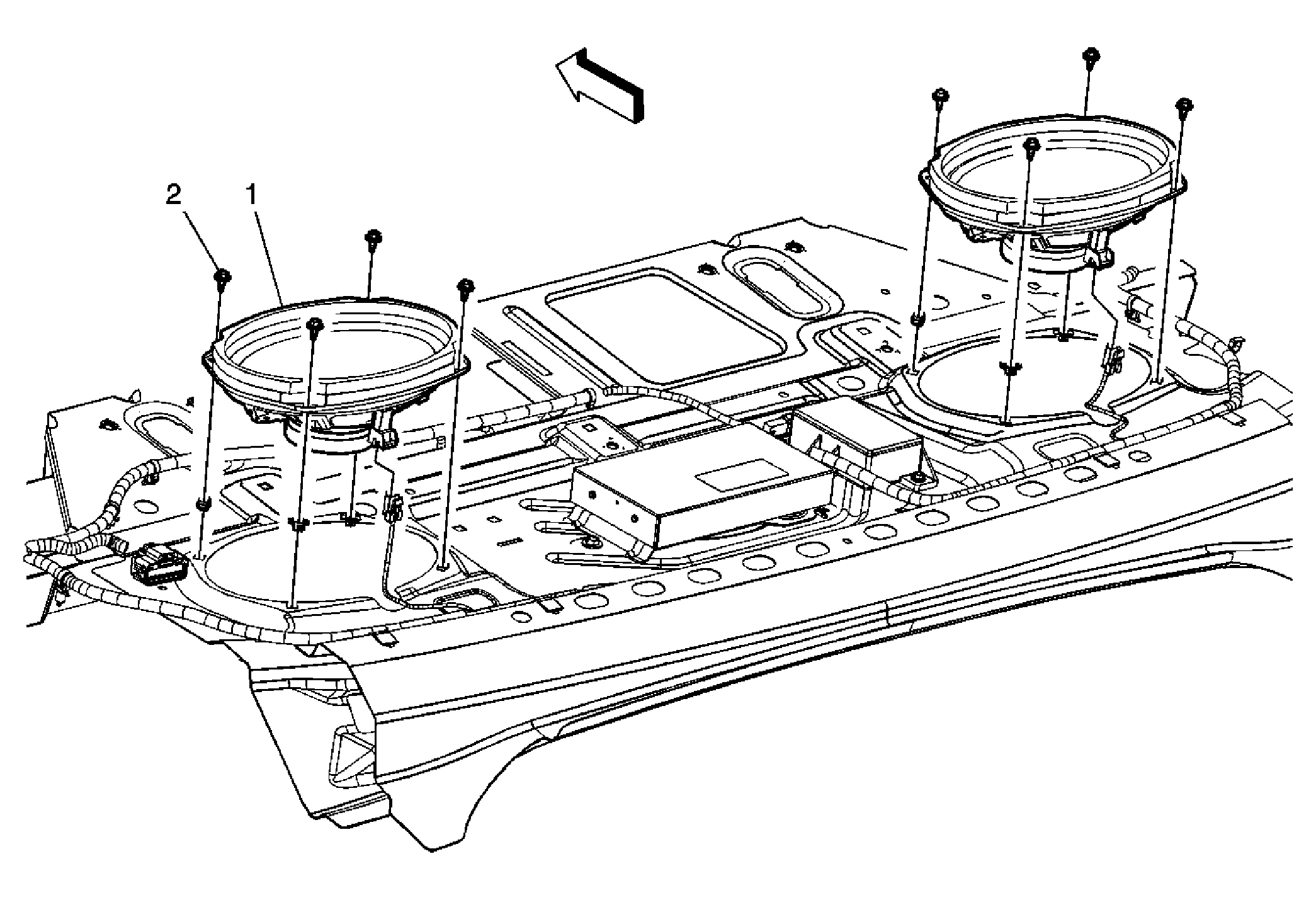

| Callout | Component Name |
|---|---|
| Preliminary Procedures: Remove the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement . |
|
| 1 | Rear Speaker Assembly Tip: Disconnect the electrical connectors. |
| 2 | Rear Speaker Screw
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
