Wheels/Vehicle Underbody Component Views

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

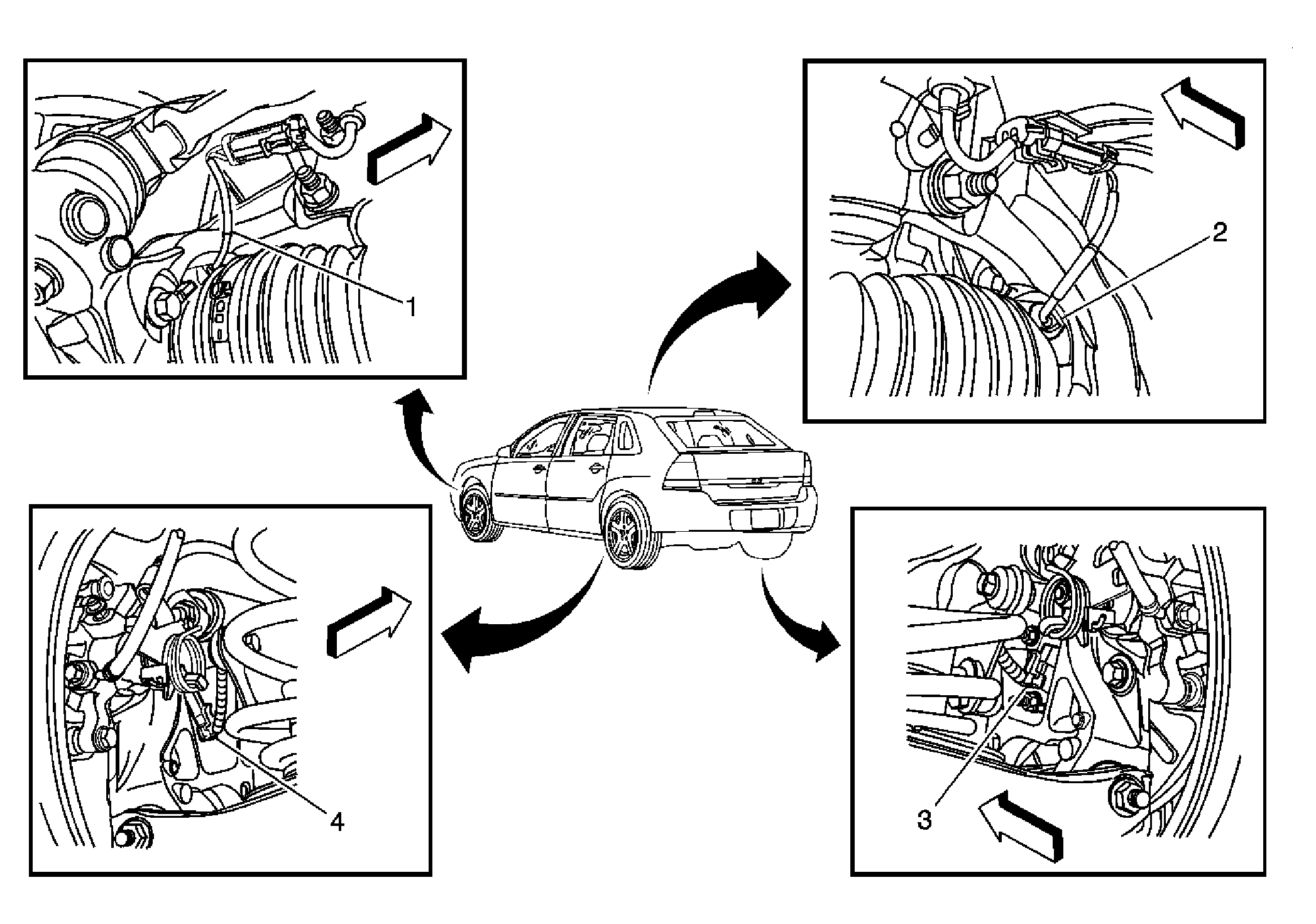

Fig 1: Wheel Speed Sensors (JM4/JL4/JL9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Left Front
2	Wheel Speed Sensor (WSS) - Right Front
3	Wheel Speed Sensor (WSS) - Right Rear
4	Wheel Speed Sensor (WSS) - Left Rear

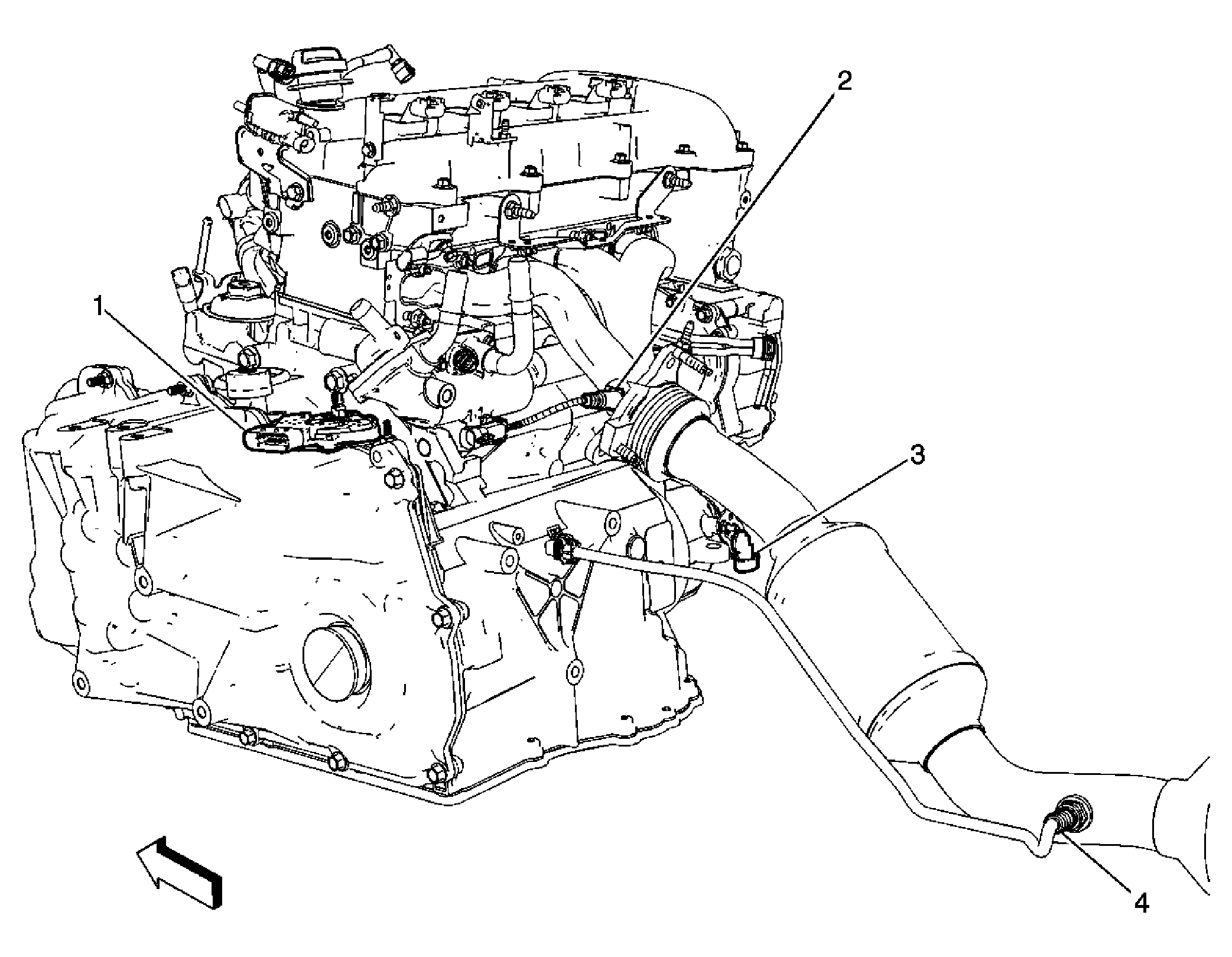

Fig 2: Engine (LE5) and Automatic Transmission (MN5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Neutral Position (PNP) Switch (MN5/MXO)
2	Heated Oxygen Sensor (HO2S) 1
3	Vehicle Speed Sensor (VSS)
4	Heated Oxygen Sensor (HO2S) 2

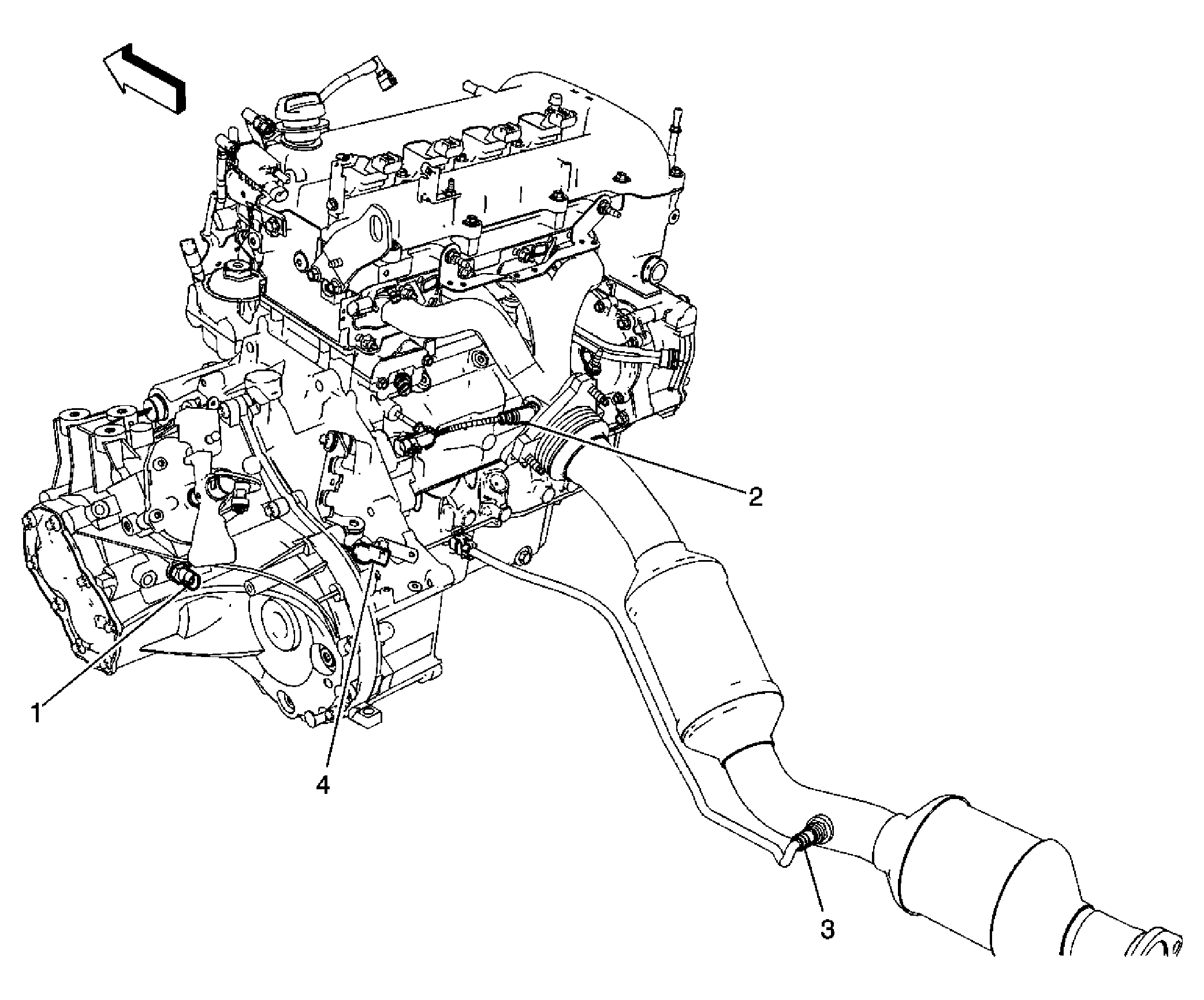

Fig 3: Engine (LE5) and Manual Transmission (M86)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Heated Oxygen Sensor (HO2S) 1
3	Heated Oxygen Sensor (HO2S) 2
4	Vehicle Speed Sensor (VSS)

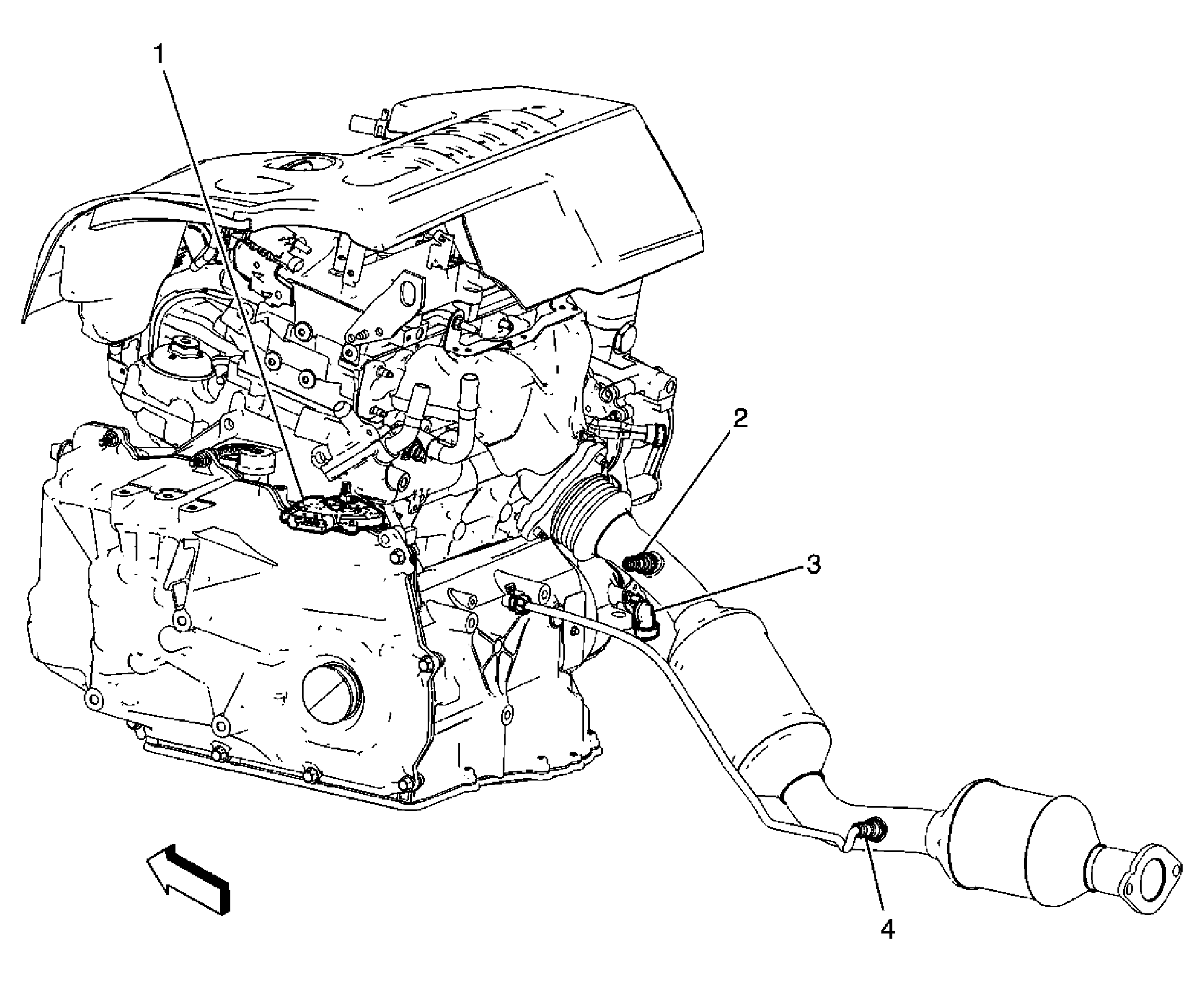

Fig 4: Engine (L61) and Automatic Transmission (MN5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Neutral Position (PNP) Switch (MN5/MXO)
2	Heated Oxygen Sensor (HO2S) 1
3	Vehicle Speed Sensor (VSS)
4	Heated Oxygen Sensor (HO2S) 2

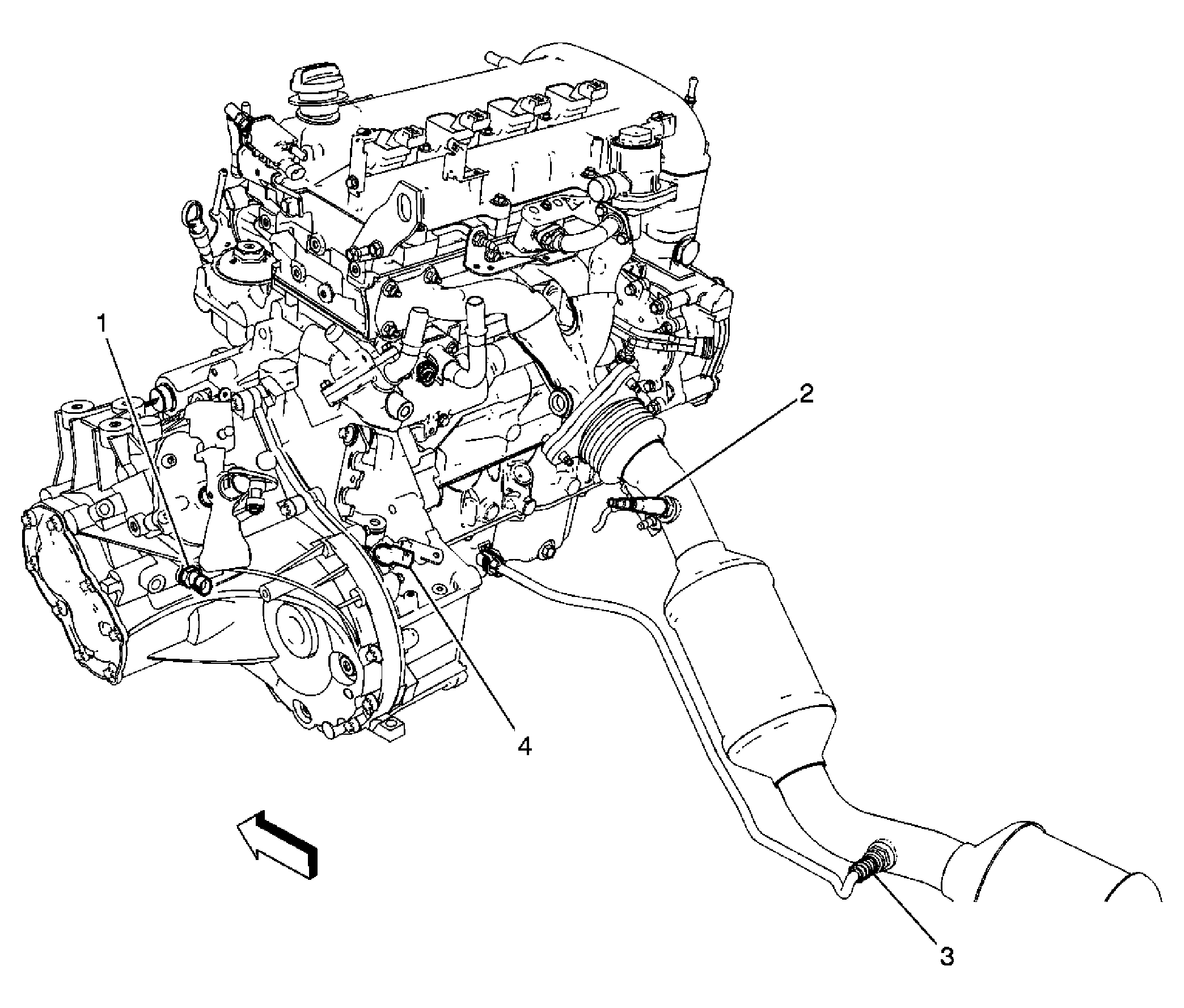

Fig 5: Engine (L61) and Manual Transmission (M86)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Heated Oxygen Sensor (HO2S) 1
3	Heated Oxygen Sensor (HO2S) 2
4	Vehicle Speed Sensor (VSS)

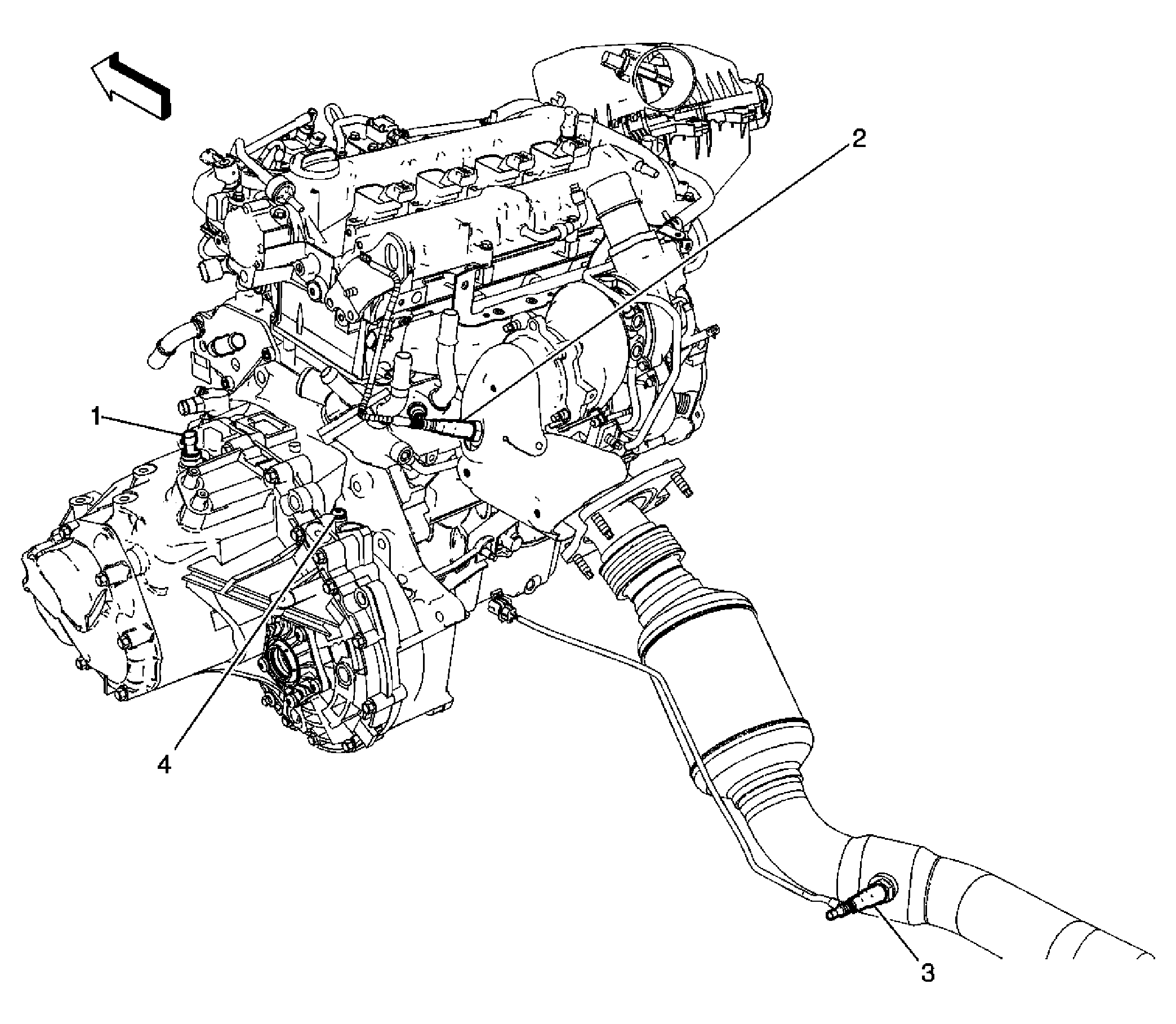

Fig 6: Engine (LNF) and Manual Transmission (M86)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Heated Oxygen Sensor (HO2S) 1
3	Heated Oxygen Sensor (HO2S) 2
4	Vehicle Speed Sensor (VSS)
